- RS Stock No.:
- 783-1062
- Mfr. Part No.:
- MPA206R
- Brand:
- TE Connectivity
27 In stock - FREE next working day delivery available
Added
Price Each
£14.48
(exc. VAT)
£17.38
(inc. VAT)
Units | Per unit |
1 - 4 | £14.48 |
5 - 9 | £14.05 |
10 - 24 | £13.61 |
25 - 49 | £12.89 |
50 + | £11.87 |
- RS Stock No.:
- 783-1062
- Mfr. Part No.:
- MPA206R
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

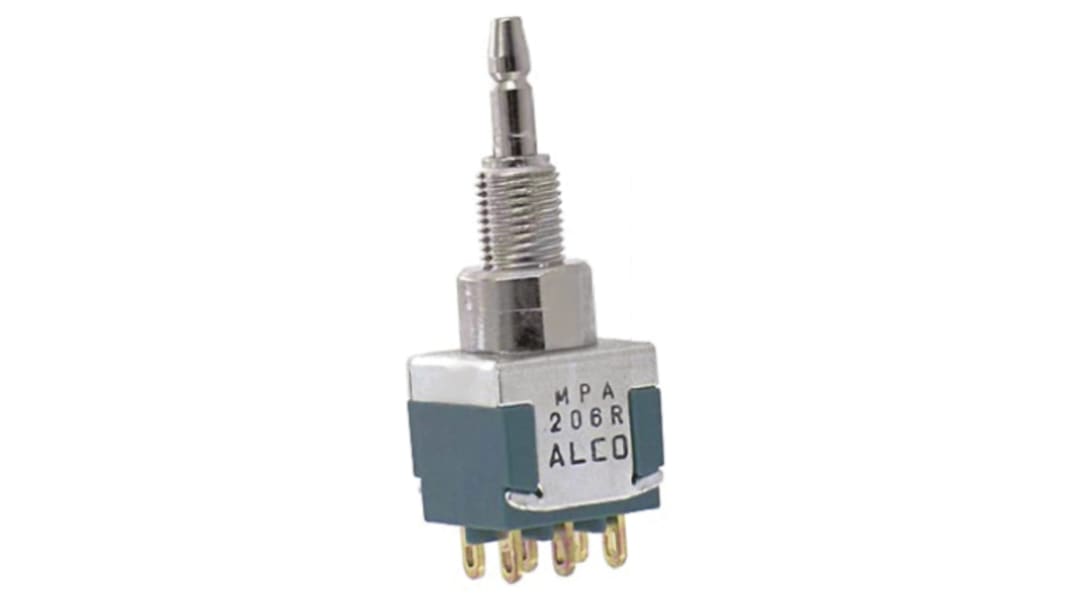

TE Connectivity - MPA Series Switch & Accessories
TE Connectivity MPA series of miniature Push Button switches are available in a choice of SPDT or DPDT contact configurations with momentary or alternate switching functions and solder terminals.
These panel mount switches have a contact resistance of less than 10mΩ and an insulation resistance greater than 1000MΩ. They are epoxy sealed with a flux proof construction.
These panel mount switches have a contact resistance of less than 10mΩ and an insulation resistance greater than 1000MΩ. They are epoxy sealed with a flux proof construction.
Momentary or alternate switching
Maximum switch rating of 6A at 125Vac, 3A at 250Vac
Gold flash over silver clad copper contacts
M6 bush
Solder terminals
Contact resistance <10mΩ maximum
Dielectric strength 1500Vac for 1 minute
Insulation resistance 1000MΩ minimum
Mechanical life >50,000 operations
Operating temperature range -20 to +80°C
Maximum switch rating of 6A at 125Vac, 3A at 250Vac
Gold flash over silver clad copper contacts
M6 bush
Solder terminals
Contact resistance <10mΩ maximum
Dielectric strength 1500Vac for 1 minute
Insulation resistance 1000MΩ minimum
Mechanical life >50,000 operations
Operating temperature range -20 to +80°C
Note
Actuator button is not supplied with the switch and must be ordered separately. For a suitable 15mm black button see stock number 7830053
Momentary switches have the momentary state displayed in brackets, e.g. on - (on).
Momentary switches have the momentary state displayed in brackets, e.g. on - (on).
Specifications
Attribute | Value |
---|---|
Switch Operation | Momentary |
Illuminated | No |
Panel Cut Out Diameter | 6.35mm |
Mounting Type | Panel Mount |
Contact Configuration | DPDT |
Contact Current Rating | 6 A @ 120 V ac |
Contact Material | Silver Plated Copper |
Manufacturer Part No. | MPA206R |
Terminal Type | Wire Lug |
