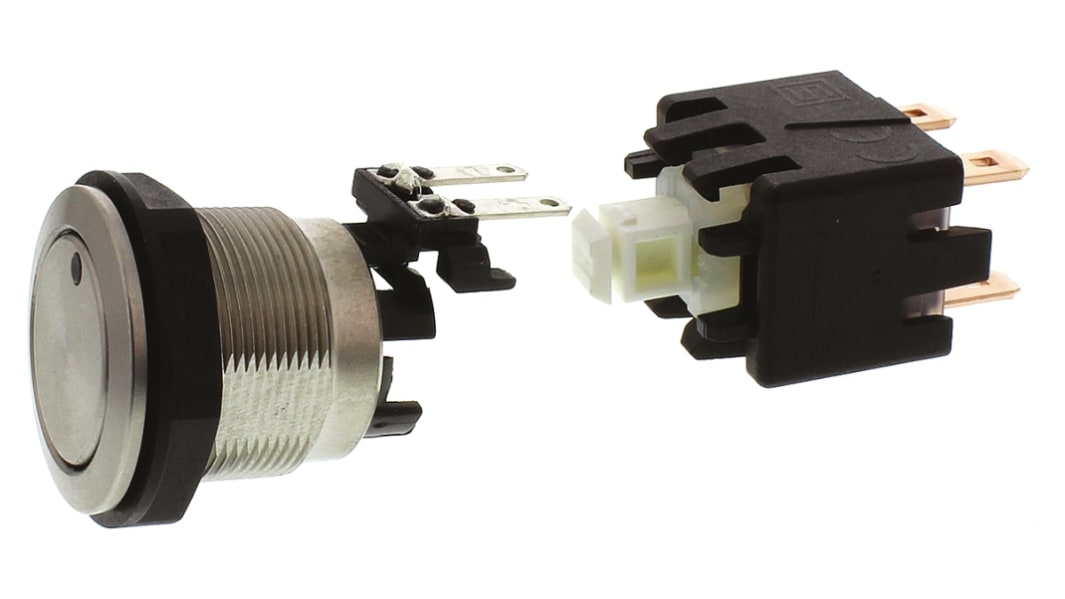

Schurter Illuminated Push Button Switch, Latching, Panel Mount, 19mm Cutout, DPDT, Green LED, 125/250V ac, IP64
- RS Stock No.:
- 708-2850
- Mfr. Part No.:
- 1241.6823.1122000
- Brand:
- Schurter
Available to back order for despatch 06/05/2024
Added
Price Each
£31.15
(exc. VAT)
£37.38
(inc. VAT)
| Units | Per unit |
| 1 - 1 | £31.15 |
| 2 - 4 | £29.59 |
| 5 + | £28.66 |
- RS Stock No.:
- 708-2850
- Mfr. Part No.:
- 1241.6823.1122000
- Brand:
- Schurter
Technical Reference
Legislation and Compliance
Product Details
Anti-Vandal M19 & M22 Push Button Switches - MSM LA Series (Latching)
Robust pushbutton switch suitable for use in harsh environments - IK07 shock resistance (DIN EN 50102)
IP64 sealed stainless steel housing and latching (push-on, push-off) actuator
Actuator with 10N operating force and 4.5mm travel - protrudes 3.7mm above panel in off state
Quick connect terminals
Long life - up to 150,000 mechanical operations
Non-illuminated or red, green or blue LED point or ring illuminated versions, available in 19 or 22mm Ø panel cut outs
Switching status optically visible - illuminated viewing angle of 180°
IP64 sealed stainless steel housing and latching (push-on, push-off) actuator
Actuator with 10N operating force and 4.5mm travel - protrudes 3.7mm above panel in off state
Quick connect terminals
Long life - up to 150,000 mechanical operations
Non-illuminated or red, green or blue LED point or ring illuminated versions, available in 19 or 22mm Ø panel cut outs
Switching status optically visible - illuminated viewing angle of 180°
Note
Point illuminated types require suitable series resistor; Ring illuminated types incorporate resistors for 24Vdc operation
Approvals
ENEC, UL, CSA
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Latching |
| Illuminated | Yes |
| Panel Cut Out Diameter | 19mm |
| Mounting Type | Panel Mount |
| Contact Configuration | DPDT |
| Voltage Rating | 125/250V ac |
| Push Button Style | Round |
| LED Colour | Green |
| IP Rating | IP64 (Front); IP00 (Rear) |
| Contact Current Rating | 12 A @ 250 V ac |
| Manufacturer Part No. | 1241.6823.1122000 |
| Terminal Type | Tab |
