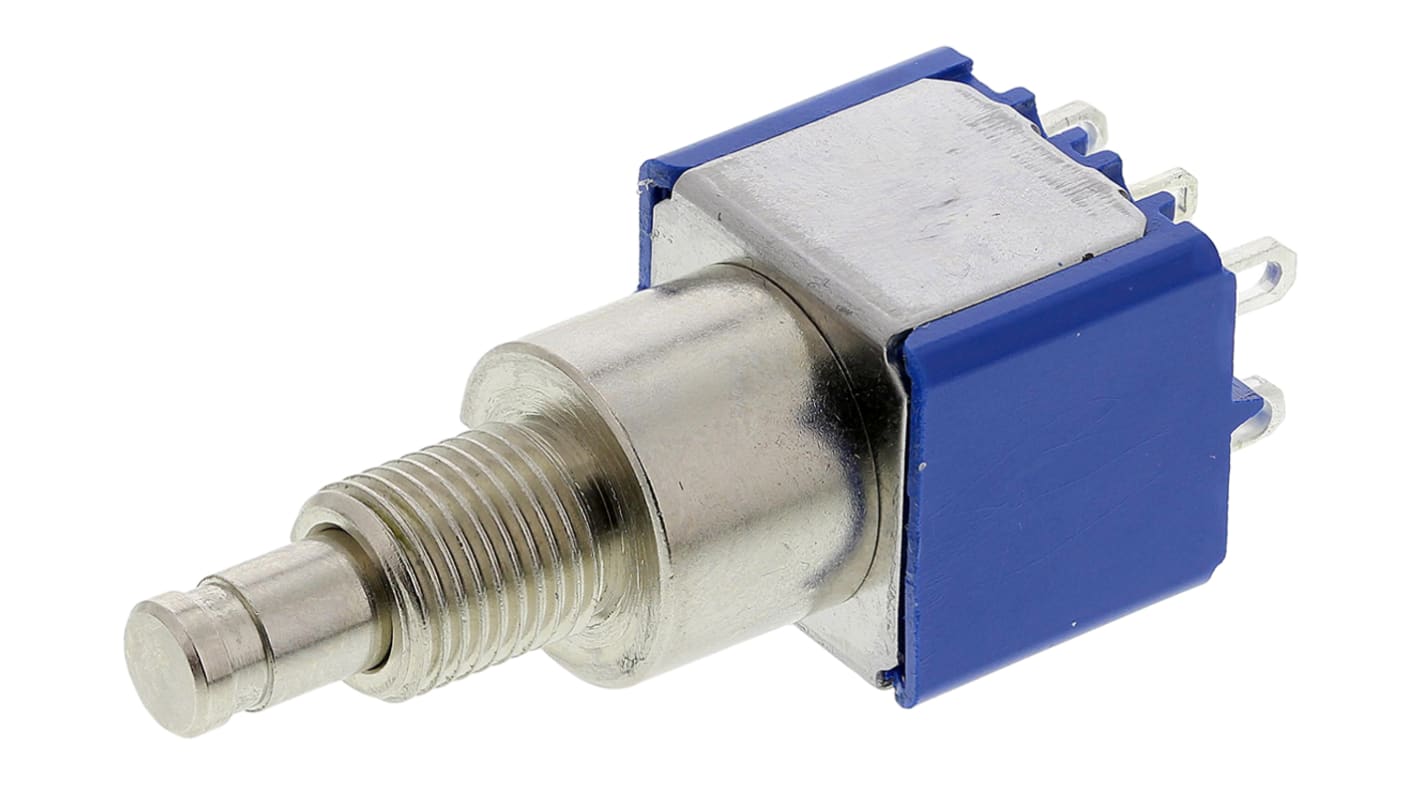

APEM Miniature Push Button Switch, Latching, Panel Mount, 6.5mm Cutout, DPDT, 250V ac, IP65
- RS Stock No.:
- 692-8434
- Mfr. Part No.:
- 8646ADBK
- Brand:
- APEM
13 In stock - FREE next working day delivery available
Added
Price Each
£15.06
(exc. VAT)
£18.07
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £15.06 |
| 10 - 49 | £13.55 |
| 50 - 99 | £11.30 |
| 100 - 249 | £10.54 |
| 250 + | £9.64 |
- RS Stock No.:
- 692-8434
- Mfr. Part No.:
- 8646ADBK
- Brand:
- APEM
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Apem Miniature Push Button Switches
From Apem, the 8000 range of miniature switches includes momentary and latching, and in Single Pole Double Throw and Double Pole Double Throw variants.
The compact miniature case has a stainless steel body and epoxy sealed terminals, and the nickel plated brass actuator is compatible with interchangeable coloured caps. Optional sealing hoods are also available.
The compact miniature case has a stainless steel body and epoxy sealed terminals, and the nickel plated brass actuator is compatible with interchangeable coloured caps. Optional sealing hoods are also available.
Features and Benefits:
• Electrical Life: 30000 cycles
• Insulation Resistance: 1000 MOhm @ 500 V dc
• Gold plated brass, or Gold Plated Silver terminals available
• Insulation Resistance: 1000 MOhm @ 500 V dc
• Gold plated brass, or Gold Plated Silver terminals available
Available in this range:
• Stock No: 103-5732 is an SPDT Momentary switch
• Stock No: 103-5748 is an SPDT Latching Switch
• Stock No: 103-5760 is a DPDT Momentary switch
• Stock No: 103-5776 is a DPDT Latching Switch
• Stock No: 103-5782 is a black push-button cap
• Stock No: 103-5798 is a red push-button cap
• Stock No: 103-5805 is a green push-button cap
• Stock No: 119-3692 is a sealing hood
• Stock No: 692-8428 is an SPDT Momentary switch
• Stock No: 692-8430 is an SPDT Latching switch
• Stock No: 692-8437 is a DPDT Momentary switch
• Stock No: 692-8434 is a DPDT Latching switch
• Stock No: 103-5748 is an SPDT Latching Switch
• Stock No: 103-5760 is a DPDT Momentary switch
• Stock No: 103-5776 is a DPDT Latching Switch
• Stock No: 103-5782 is a black push-button cap
• Stock No: 103-5798 is a red push-button cap
• Stock No: 103-5805 is a green push-button cap
• Stock No: 119-3692 is a sealing hood
• Stock No: 692-8428 is an SPDT Momentary switch
• Stock No: 692-8430 is an SPDT Latching switch
• Stock No: 692-8437 is a DPDT Momentary switch
• Stock No: 692-8434 is a DPDT Latching switch
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Latching |
| Illuminated | No |
| Panel Cut Out Diameter | 6.5mm |
| Mounting Type | Panel Mount |
| Contact Configuration | DPDT |
| Voltage Rating | 250V ac |
| IP Rating | IP65 |
| Contact Current Rating | 400 mA @ 20 V |
| Contact Material | Gold Plated Silver |
| Manufacturer Part No. | 8646ADBK |
| Terminal Type | Solder |
- RS Stock No.:
- 692-8434
- Mfr. Part No.:
- 8646ADBK
- Brand:
- APEM
