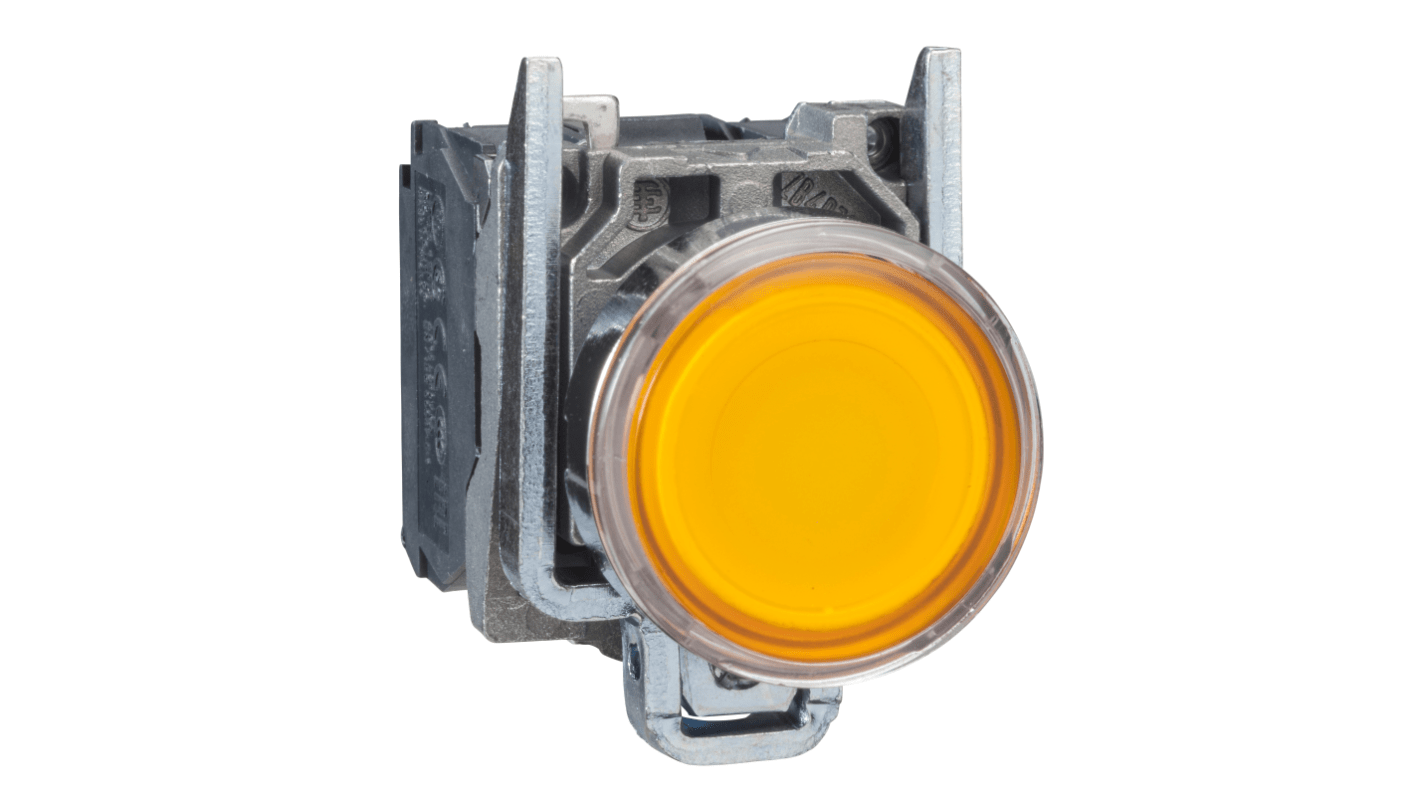

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch, Spring Return, Panel, 22 mm Cutout, SPDT, Orange

View all Push Button Switches

Subtotal (1 unit)*

£28.35

(exc. VAT)

£34.02

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 16 unit(s) shipping from 19 January 2026
  • Plus 6 unit(s) shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£28.35

*price indicative

Sponsored
Harmony XB Push Buttons
Schneider Electric Harmony XB Push Buttons
Schneider Electric's high-quality Harmony XB push buttons are a versatile and reliable choice for your control panel needs
Shop Here
RS Stock No.:
609-5947
Mfr. Part No.:
XB4BW3565
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Product Type

Push Button Switch

Switch Operation

Spring Return

Actuator Colour

Orange

Illuminated

Yes

Series

Harmony XB4

Panel Cutout Size

22 mm

Mount Type

Panel

Contact Configuration

SPDT

LED Colour

Orange

Terminal Type

Screw

Minimum Operating Temperature

-25°C

Actuator Style

Round

Contact AC Voltage

250V

Switch Configuration

1 NO/1 NC

Maximum Operating Temperature

70°C

Standards/Approvals

EN/IEC 60947-1CSA C22.2 No 14JIS C8201-5-1EN/IEC 60947-5-1UL 508EN/IEC 60947-5-4EN/IEC 60947-5-5JIS C8201-1

Height

47mm

Width

30 mm

Length

101mm

Legend

Blank

COO (Country of Origin):
CZ

Schneider Electric | Harmony XB4 Series | Push Buttons


The Schneider Electric range of Push Button switch comes with complete control over your working environment. The Push Button can make a fine addition to your safety control panels, easily identifiable and operated by all users. Schneider boasts a successfully tested range of XB4 push buttons that offer you reliability in different scenarios.

Features and benefits


• Protected integral LED light source with a plain lense. Push buttons are available in a range of colours including red, green, blue and more. The buttons are flush designed meaning they are less protruding than traditional push buttons and fit nicely within control boards /panels.

• Durable and easy to maintain Chromium plated metal finish with a Zamak based fixing collar.

• Small, compact 22 mm mounting diameter, perfect for panel mounting, especially where space may be restricted.

• 1,000,000 cycles of high-performance mechanical durability ensuring consistent reliability.

• Suitable for use in temperature ranges -40 to 70 ° C.

• 1 NO + NC contact type with a screw clamp connection.

Protection ratings & Safety features (See datasheet for further details) -

• IP 67, 69 & IP 69 K rated, further providing resistance to high-pressure water streams & steam cleaning. Rated protection against high-pressure washers sits at 7,000,000 Pa at 55°C, within a distance of 0.1m.

• NEMA 13 & 4 X rated degree of protection, providing further protection from oils, greases etc.

• EN/IEC 60947-5-1, UL 508 & CSA C22.2 No 14.

• Short circuit protection via a 10 A cartridge fuse which conforms to EN/IEC 60947-5-1.

• Vibration resistance 5 gn conforming to IEC 60068-2-6.

Applications -


• Control stations/panels used in E-Stop scenarios

• Automotive industries, factories, automation lines

• Commercial units such as warehouses
