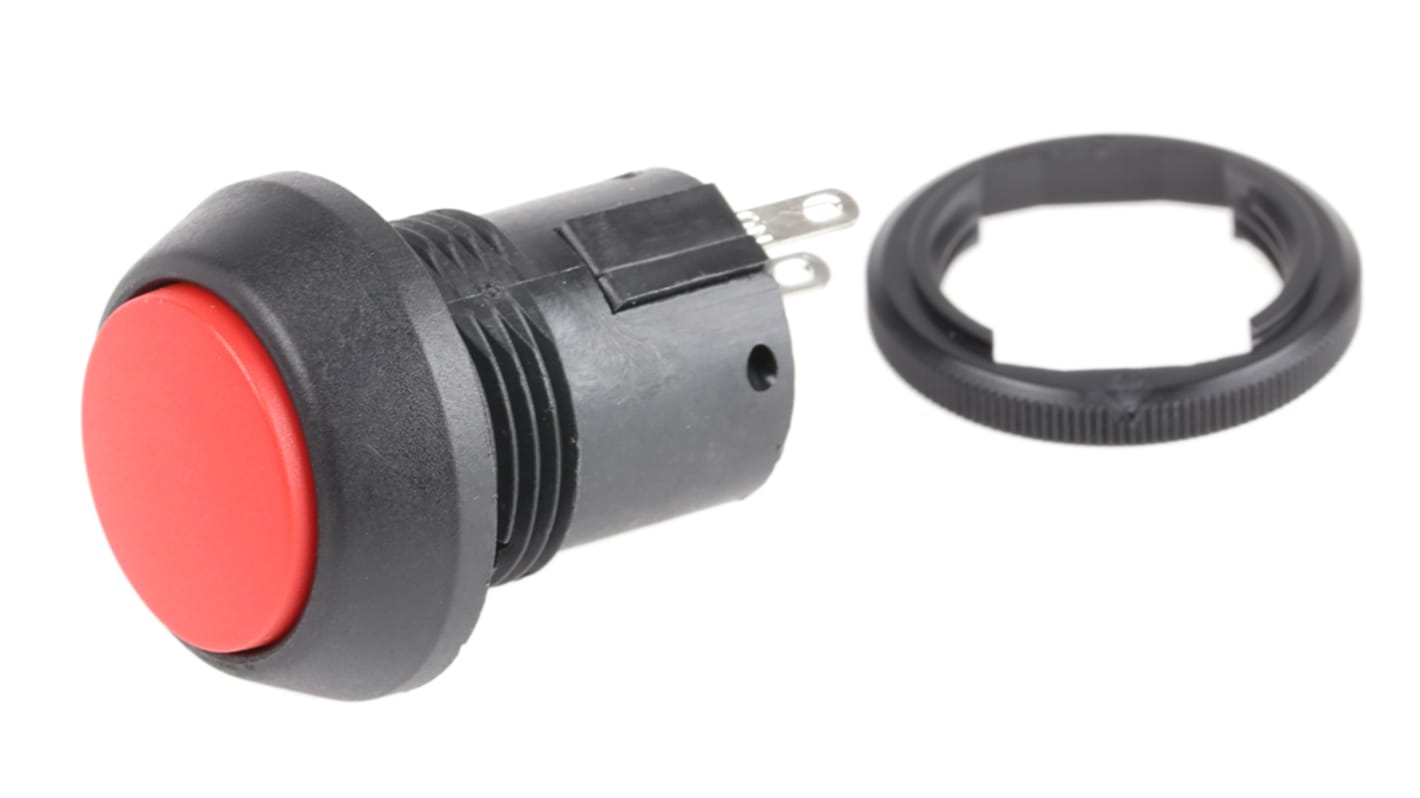

ITW Switches 76-97 Series Push Button Switch, Latching, Panel Mount, 22mm Cutout, SPDT, 250V ac, IP67
- RS Stock No.:
- 414-6706
- Mfr. Part No.:
- 76-9712/439088R
- Brand:
- ITW Switches
119 In stock - FREE next working day delivery available
Added
Price Each
£23.21
(exc. VAT)
£27.85
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £23.21 |
| 10 - 49 | £21.35 |
| 50 - 99 | £19.73 |
| 100 - 249 | £18.10 |
| 250 + | £15.09 |
- RS Stock No.:
- 414-6706
- Mfr. Part No.:
- 76-9712/439088R
- Brand:
- ITW Switches
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- BZ
Product Details
Latching Pushbutton Switches
Single pole latching switches with high impact plastic bodies
Panel sealed to IP67
Microswitch action
Contact rating: 10A @ 250V a.c.
Silver contacts
Electrical life: 105 operations
Dimensions: Depth behind panel 28mm, max. panel thickness 6mm, panel cut-out 22.5mm
Panel sealed to IP67
Microswitch action
Contact rating: 10A @ 250V a.c.
Silver contacts
Electrical life: 105 operations
Dimensions: Depth behind panel 28mm, max. panel thickness 6mm, panel cut-out 22.5mm
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Latching |
| Illuminated | No |
| Panel Cut Out Diameter | 22mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Red |
| Contact Configuration | SPDT |
| Voltage Rating | 250V ac |
| Push Button Style | Round |
| IP Rating | IP67 |
| Series | 76-97 |
| Contact Current Rating | 10 A @ 250 V ac |
| Contact Material | Fine Silver |
| Contact AC Voltage Rating | 250V |
| Contact DC Voltage Rating | 5V |
| Manufacturer Part No. | 76-9712/439088R |
| Minimum Operating Temperature | -40°C |
| Terminal Type | Solder |
| Maximum Operating Temperature | +105°C |
| Operating Temperature Range | -40 → +105°C |
