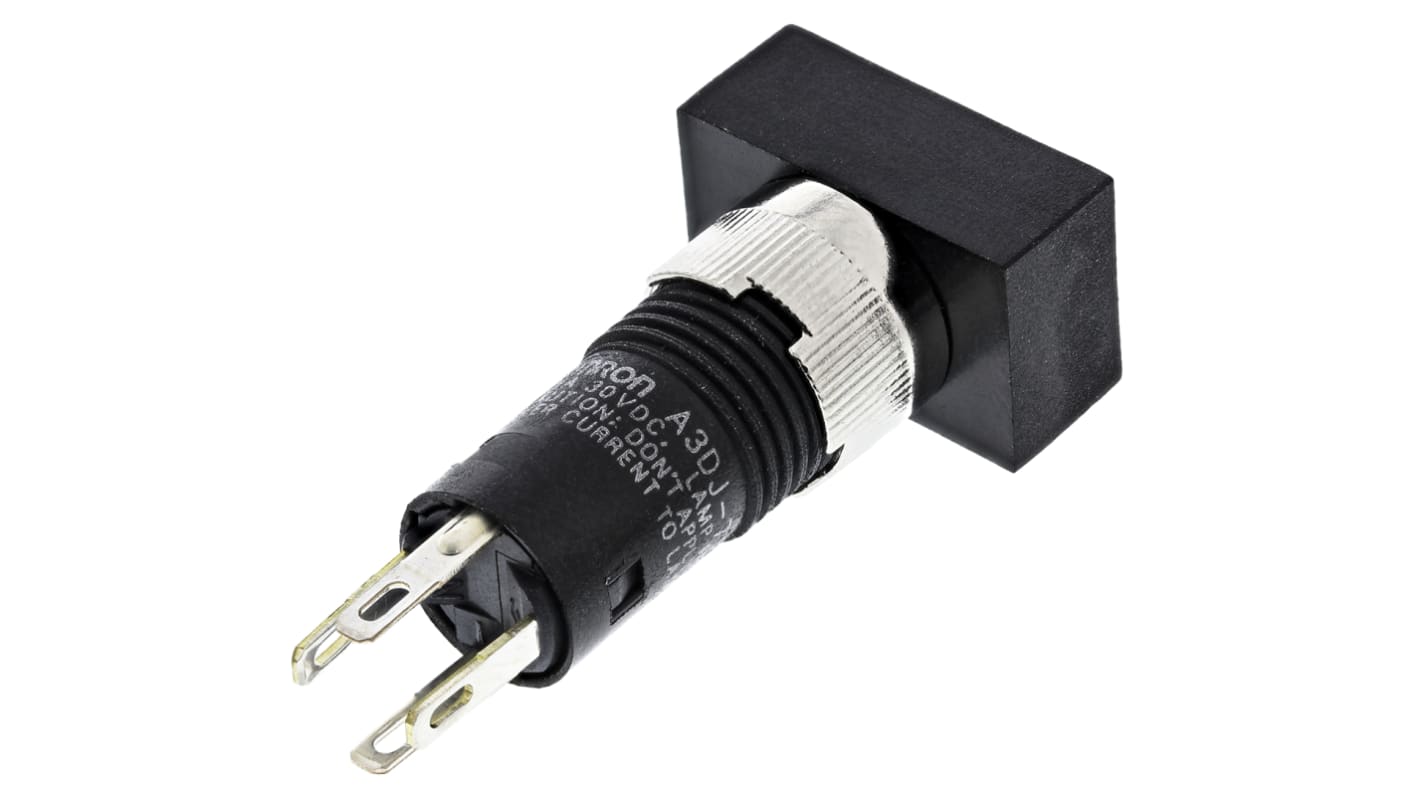

Omron A3d Series Illuminated Push Button Switch, Latching, Panel, 8 mm Cutout, SPST, White, Yellow, Green, Red LED,
- RS Stock No.:
- 366-4130
- Mfr. Part No.:
- A3DJ-7121
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£10.39
(exc. VAT)
£12.47
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 81 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £10.39 |
| 5 - 9 | £10.09 |
| 10 - 24 | £9.77 |
| 25 - 49 | £9.26 |
| 50 + | £8.52 |
*price indicative
- RS Stock No.:
- 366-4130
- Mfr. Part No.:
- A3DJ-7121
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Push Button Switch | |
| Switch Operation | Latching | |
| Illuminated | Yes | |
| Panel Cutout Size | 8 mm | |
| Series | A3d | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Solder | |
| LED Colour | White, Yellow, Green, Red | |
| IP Rating | IP40 | |
| Contact DC Voltage | 30V | |
| Minimum Operating Temperature | -10°C | |
| Contact AC Voltage | 24V | |
| Actuator Style | Button | |
| Maximum Operating Temperature | 55°C | |
| Switch Configuration | On-Off | |
| Switch Contact Current | 100 mA | |
| Standards/Approvals | CSS, CE, UL | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Push Button Switch | ||
Switch Operation Latching | ||
Illuminated Yes | ||
Panel Cutout Size 8 mm | ||
Series A3d | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Solder | ||
LED Colour White, Yellow, Green, Red | ||
IP Rating IP40 | ||
Contact DC Voltage 30V | ||
Minimum Operating Temperature -10°C | ||
Contact AC Voltage 24V | ||
Actuator Style Button | ||
Maximum Operating Temperature 55°C | ||
Switch Configuration On-Off | ||
Switch Contact Current 100 mA | ||
Standards/Approvals CSS, CE, UL | ||
8mm Illuminated Pushbutton Switches
Cylindrical push-button switches and indicators for panel mounting
SPST normally open switch units with LED illumination
Indicator only units with LED illumination
Note
Switch & indicator lenses are not interchangeable
Indicator units and switch body's typically require a lens for completion, for lenses see typically stock no's 3664225 (indicator) and 3663991 (switch)
Indicator units and switch body's typically require a lens for completion, for lenses see typically stock no's 3664225 (indicator) and 3663991 (switch)
