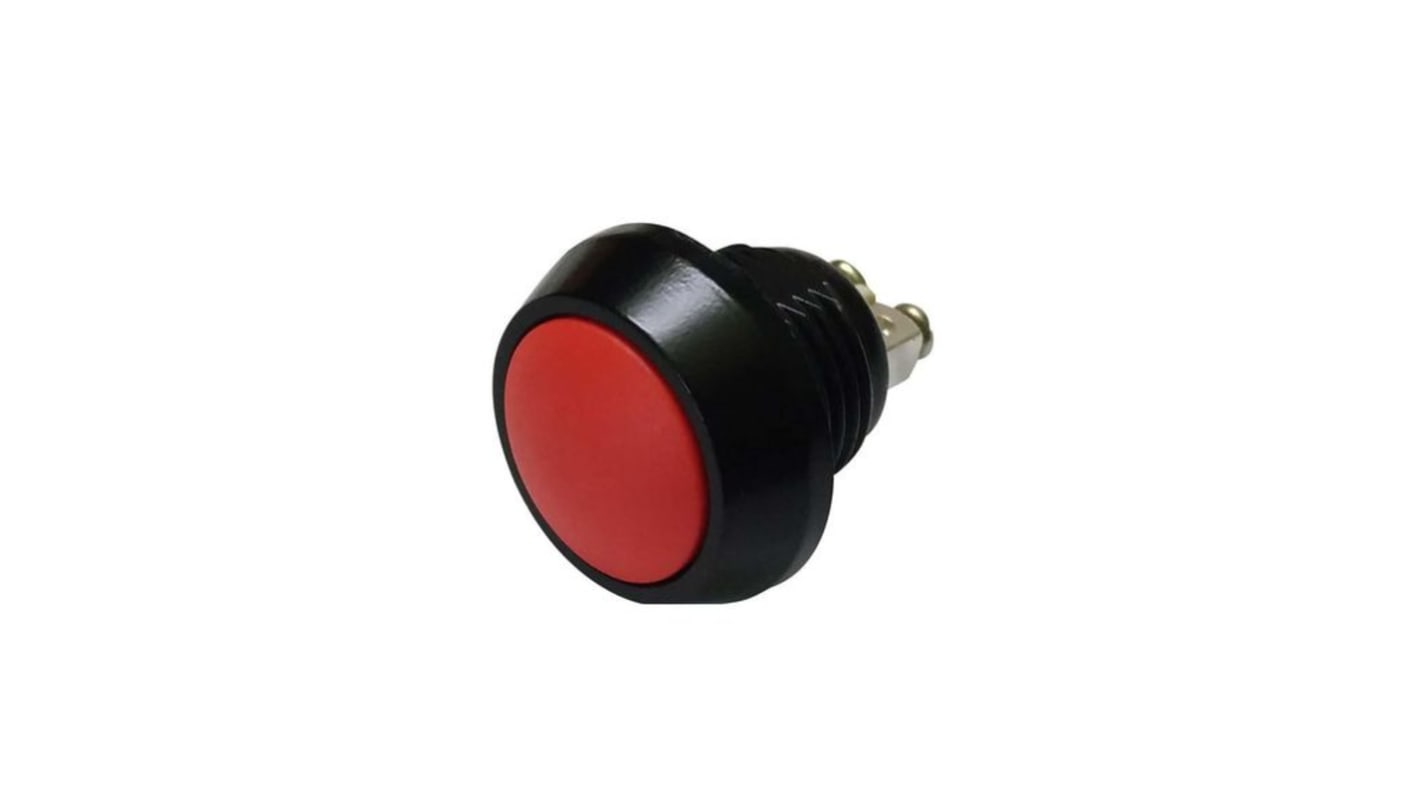

RND RND 210 Series Vandal Proof Push Button Switch, (On)-Off, Panel, 12 mm Cutout, SPST, IP65, 36 V dc
- RS Stock No.:
- 283-2604
- Distrelec Article No.:
- 301-34-960
- Mfr. Part No.:
- RND 210-00567
- Brand:
- RND
Subtotal (1 unit)*
£3.64
(exc. VAT)
£4.37
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £3.64 |
*price indicative
- RS Stock No.:
- 283-2604
- Distrelec Article No.:
- 301-34-960
- Mfr. Part No.:
- RND 210-00567
- Brand:
- RND
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RND | |
| Switch Operation | (On)-Off | |
| Product Type | Vandal Proof Push Button Switch | |
| Illuminated | No | |
| Series | RND 210 | |
| Panel Cutout Size | 12 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Quick Connect | |
| IP Rating | IP65 | |
| Contact DC Voltage | 36V dc | |
| Actuator Style | Round | |
| Minimum Operating Temperature | -20°C | |
| Switch Configuration | (On)-Off | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | REACH, RoHS | |
| Switch Contact Current | 2A | |
| Legend | Blank | |
| Select all | ||
|---|---|---|
Brand RND | ||
Switch Operation (On)-Off | ||
Product Type Vandal Proof Push Button Switch | ||
Illuminated No | ||
Series RND 210 | ||
Panel Cutout Size 12 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Quick Connect | ||
IP Rating IP65 | ||
Contact DC Voltage 36V dc | ||
Actuator Style Round | ||
Minimum Operating Temperature -20°C | ||
Switch Configuration (On)-Off | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals REACH, RoHS | ||
Switch Contact Current 2A | ||
Legend Blank | ||
- COO (Country of Origin):
- TW
The Anti Vandal Pushbutton Switch has a contact rating of 2A at 36 VDC. Its electrical life spans up to 200000 cycles. This anti vandal switch has silver alloy contacts housed in a PBT base and a nickel plated brass nut.
IP65 protection
