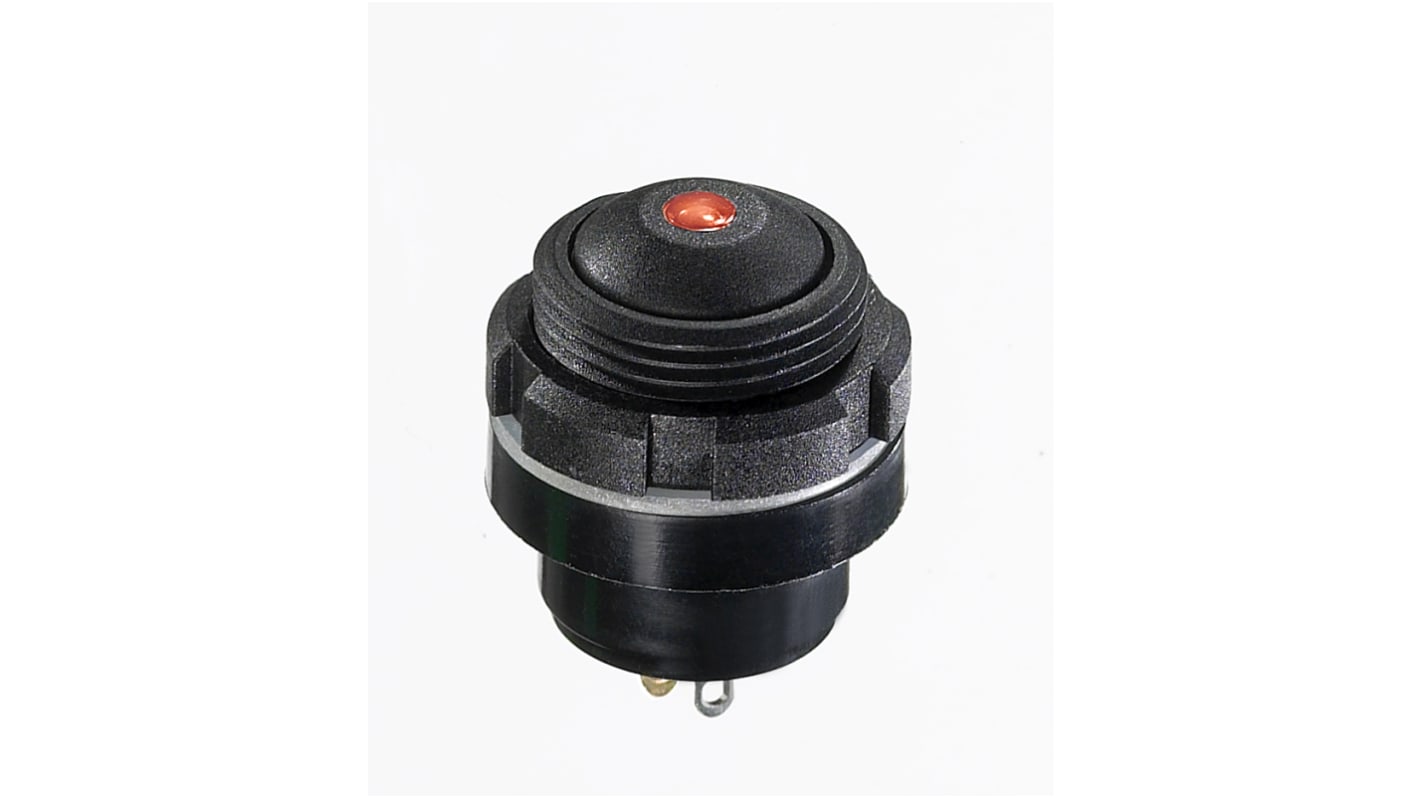

APEM IZ Series Illuminated Push Button Switch, Momentary, Panel, 15 mm Cutout, 1 NO, Red LED, IP67, 48 V dc 48 V ac
- RS Stock No.:
- 267-5281
- Mfr. Part No.:
- IZPR3S422L0S
- Brand:
- APEM
Subtotal (1 unit)*
£20.74
(exc. VAT)
£24.89
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 67 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £20.74 |
*price indicative
- RS Stock No.:
- 267-5281
- Mfr. Part No.:
- IZPR3S422L0S
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Switch Operation | Momentary | |
| Product Type | Push Button Switch | |
| Actuator Colour | Black | |
| Illuminated | Yes | |
| Panel Cutout Size | 15 mm | |
| Series | IZ | |
| Mount Type | Panel | |
| Contact Configuration | 1 NO | |
| LED Colour | Red | |
| Terminal Type | Screw | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -40°C | |
| Actuator Style | Plunger | |
| Contact DC Voltage | 48V dc | |
| Contact AC Voltage | 48V ac | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | IEC 60529, IEC 512-6, IEC 512-4 | |
| Switch Contact Current | 4 A | |
| Height | 26.2mm | |
| Select all | ||
|---|---|---|
Brand APEM | ||
Switch Operation Momentary | ||
Product Type Push Button Switch | ||
Actuator Colour Black | ||
Illuminated Yes | ||
Panel Cutout Size 15 mm | ||
Series IZ | ||
Mount Type Panel | ||
Contact Configuration 1 NO | ||
LED Colour Red | ||
Terminal Type Screw | ||
IP Rating IP67 | ||
Minimum Operating Temperature -40°C | ||
Actuator Style Plunger | ||
Contact DC Voltage 48V dc | ||
Contact AC Voltage 48V ac | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals IEC 60529, IEC 512-6, IEC 512-4 | ||
Switch Contact Current 4 A | ||
Height 26.2mm | ||
- COO (Country of Origin):
- FR
The APEM pushbutton switches with curved actuator are made up of polyamide or a metal case. This pushbutton switches are available with momentary switch operation. LED colour is indicated by the bottom of the switch. This switch offers an excellent vibration resistance at 10 to 500 Hz.
Easy installation
Fixed or variable panel thickness
Screw version available up to 4 A
500000 cycles electrical life at full load
