RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 22.2mm Cutout, DPST, Green LED, 250V ac, IP65
- RS Stock No.:
- 248-9202
- Brand:
- RS PRO
16 In stock - FREE next working day delivery available
Added
Price Each
£34.95
(exc. VAT)
£41.94
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £34.95 |
| 10 - 99 | £33.90 |
| 100 + | £27.96 |
- RS Stock No.:
- 248-9202
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details

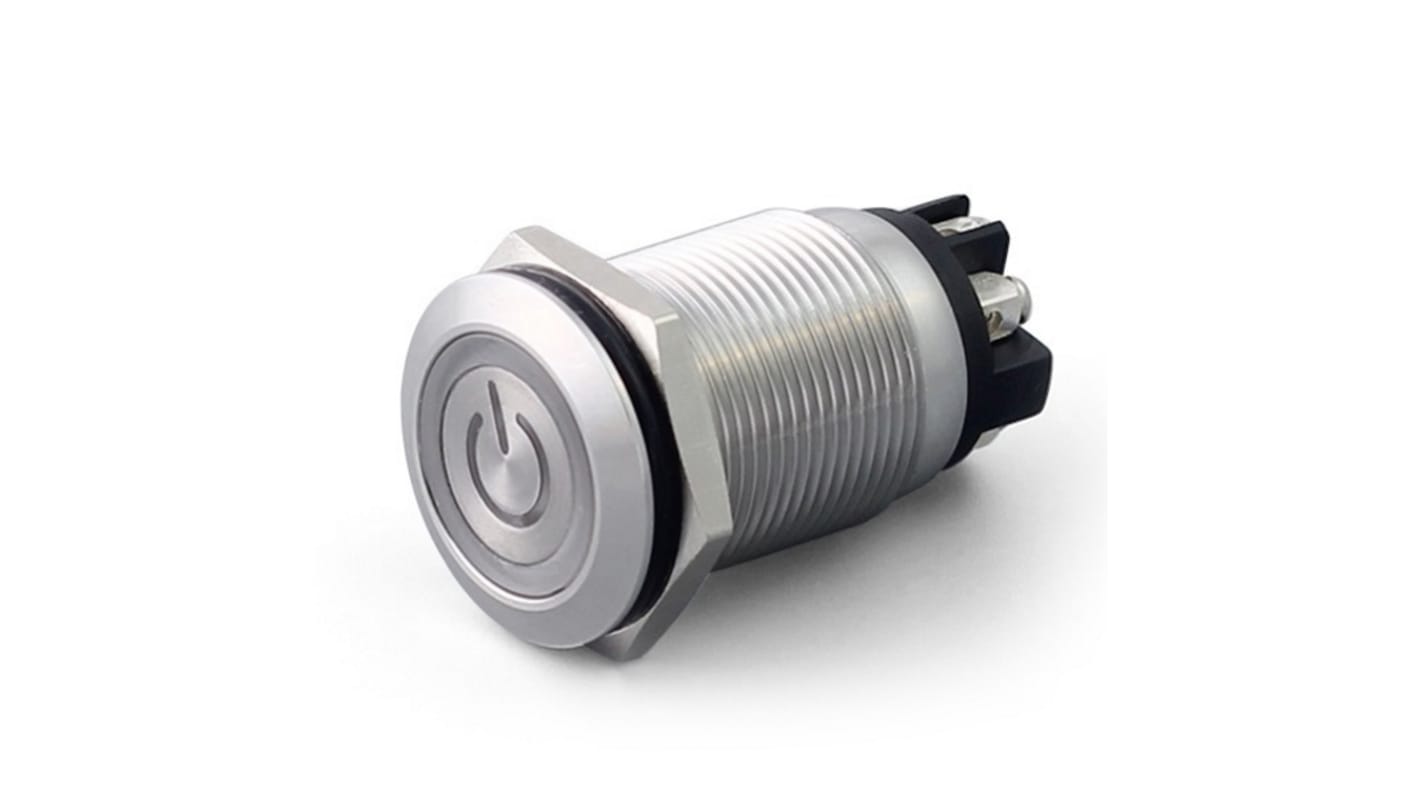

RS PRO Anti-Vandal Green Illuminated Power Legend Push Button Switch, 22.2mm
RS PRO’s high quality Stainless Steel anti vandal pushbutton is ideal for use in harsh conditions or public facing applications and is designed to withstand damage from physical attacks and repeated use.
Featuring an illuminated LED Power indictor, the RS PRO IP65 push button is panel mounted for easy and quick installation and is rated for water resistance and ingress protection making it suitable for use in internal and external applications.
Features and Benefits
- Power legend
- Stainless Steel push button
- Vandal resistant
- Panel mount installation
- Latching switch operation
- ≥1,000,000 operations
- ≥1,000 MΩ Insulation Resistance
- Screw terminals
Standards and Approvals: IP65, IK10
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Supplied with
1 x Switch, 1 x Hex Nut, 1 x O-Ring
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Latching |
| Illuminated | Yes |
| Panel Cut Out Diameter | 22.2mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Silver |
| Contact Configuration | DPST |
| Voltage Rating | 250V ac |
| Push Button Style | Round |
| LED Colour | Green |
| IP Rating | IP65 |
| Push Button Material | Stainless Steel |
| Series | SW22S |
| Contact Current Rating | 5 A @ 250 V ac |
| Contact Material | Silver Alloy |
| Manufacturer Part No. | SW22SSL323 |
| Legend | Power |
| Contact AC Voltage Rating | 250V |
| Case Colour | Natural |
| Terminal Type | Screw |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -40°C |
