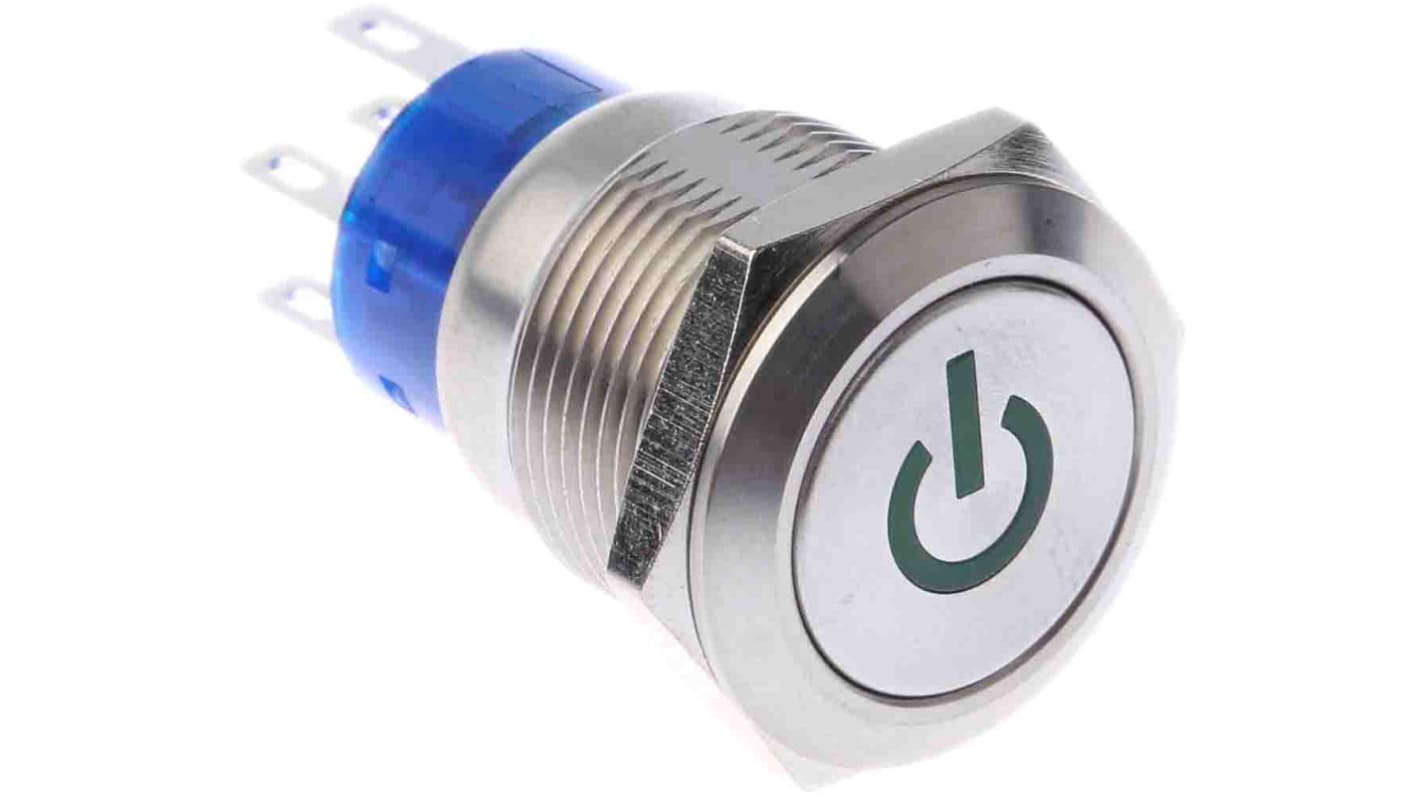

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 19mm Cutout, DPDT, Green LED, 250V ac, IP67
- RS Stock No.:
- 111-5807
- Distrelec Article No.:
- 304-02-577
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£15.71
(exc. VAT)
£18.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,728 unit(s) ready to ship
- Plus 47 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £15.71 |
5 - 9 | £15.23 |
10 - 24 | £14.76 |
25 - 49 | £13.98 |
50 + | £12.87 |
*price indicative
- RS Stock No.:
- 111-5807
- Distrelec Article No.:
- 304-02-577
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Switch Operation | Latching | |
Illuminated | Yes | |
Panel Cut Out Diameter | 19mm | |
Mounting Type | Panel Mount | |
Push Button Colour | Silver | |
Contact Configuration | DPDT | |
Voltage Rating | 250V ac | |
Push Button Style | Round | |
LED Colour | Green | |
IP Rating | IP67 | |
Contact Current Rating | 5 A | |
Contact Material | Copper | |
Case Colour | Natural | |
Contact AC Voltage Rating | 250V | |
Manufacturer Part No. | MPB19-D0F21P-612-JQ | |
Legend | Power Symbol | |
Terminal Type | Solder Pin | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Switch Operation Latching | ||
Illuminated Yes | ||
Panel Cut Out Diameter 19mm | ||
Mounting Type Panel Mount | ||
Push Button Colour Silver | ||
Contact Configuration DPDT | ||
Voltage Rating 250V ac | ||
Push Button Style Round | ||
LED Colour Green | ||
IP Rating IP67 | ||
Contact Current Rating 5 A | ||
Contact Material Copper | ||
Case Colour Natural | ||
Contact AC Voltage Rating 250V | ||
Manufacturer Part No. MPB19-D0F21P-612-JQ | ||
Legend Power Symbol | ||
Terminal Type Solder Pin | ||
- COO (Country of Origin):
- CN
RS PRO Double Pole Double Throw (DPDT) Latching Green LED Push Button Switch, IP67, 19 mm (Dia.), Panel Mount, Power
Switch your circuit on and off with the RS PRO double pole double throw (DPDT) latching green LED push button switch. Generally found in industrial environments, this component is used in communications equipment, industrial control gear and medical devices. It's also suitable for use by home hobbyists.
For easy installation, it comes fitted with a panel mount so you can fix it quickly to an equipment panel, external case or enclosure. The switch has a short design, so you can install it in areas where space is at a premium. The contacts are made from silver-plated copper to create a firm connection.
This component is IP67 rated, which means it's protected from solid objects like dust and sand – it also works for at least 30 minutes in up to one metre of water. The latching button is made from stainless steel for a corrosion-resistant finish.
For easy installation, it comes fitted with a panel mount so you can fix it quickly to an equipment panel, external case or enclosure. The switch has a short design, so you can install it in areas where space is at a premium. The contacts are made from silver-plated copper to create a firm connection.
This component is IP67 rated, which means it's protected from solid objects like dust and sand – it also works for at least 30 minutes in up to one metre of water. The latching button is made from stainless steel for a corrosion-resistant finish.
Features and Benefits
• Latching push-button switch
• Panel mounting
• Illuminated
• Double pole double throw (DPDT) contact configuration
• Panel cut out diameter of 19 mm
• Green LED
• IP67 rated for water and dust protection
• Silver actuator
• Copper contacts
• Voltage rating of 250 V ac
• Contact current rating of 5 A
• Round actuator
• Solder pin terminal
• Natural colour case
• Flat contact actuator
• AC voltage rating of 250 V
• Power symbol legend
• cULus recognised E 187490, ENEC 18, IK1 compliant for safety and quality
• Panel mounting
• Illuminated
• Double pole double throw (DPDT) contact configuration
• Panel cut out diameter of 19 mm
• Green LED
• IP67 rated for water and dust protection
• Silver actuator
• Copper contacts
• Voltage rating of 250 V ac
• Contact current rating of 5 A
• Round actuator
• Solder pin terminal
• Natural colour case
• Flat contact actuator
• AC voltage rating of 250 V
• Power symbol legend
• cULus recognised E 187490, ENEC 18, IK1 compliant for safety and quality
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
