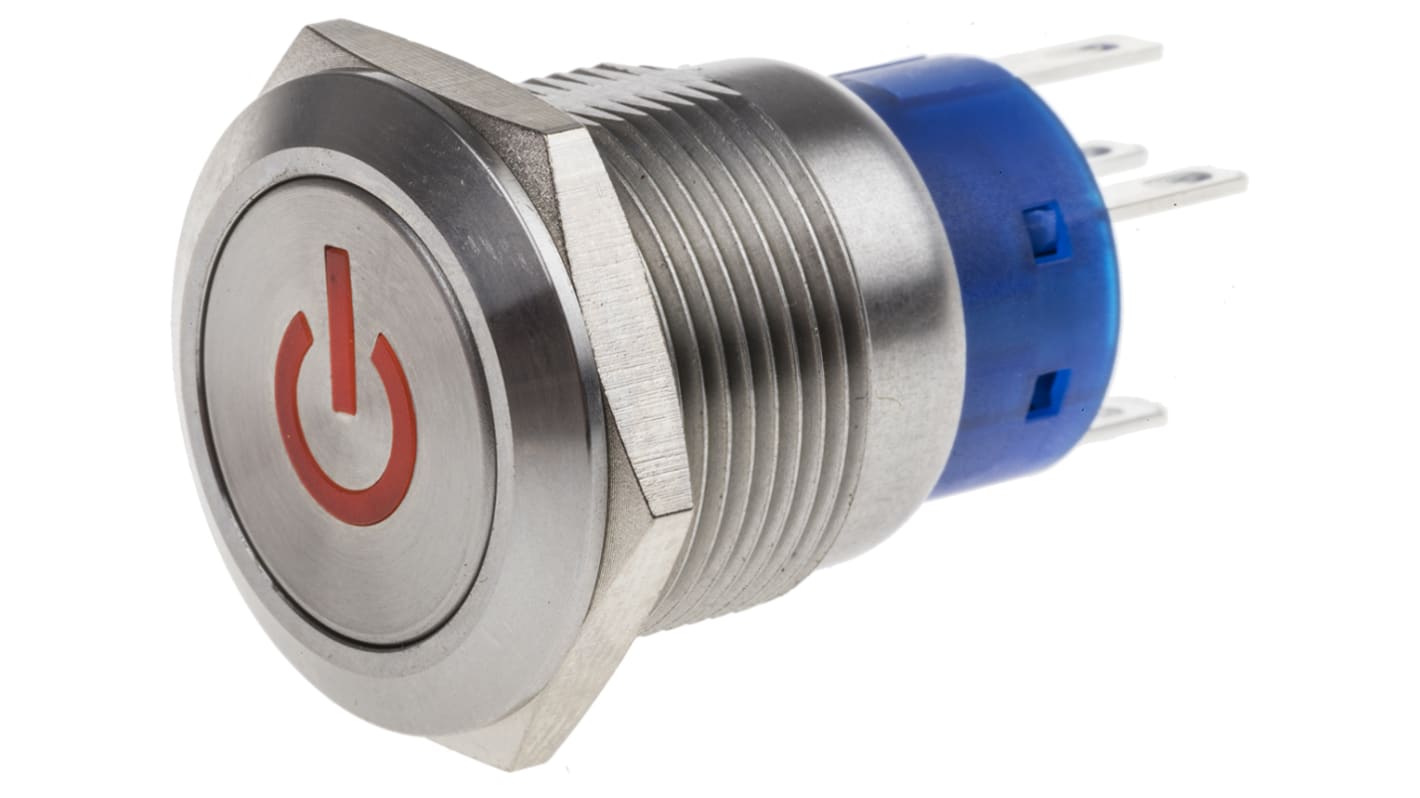

RS PRO MPB19-A0F11D-324-JQ Series Illuminated Push Button Switch, Latching, Panel, 19 mm Cutout, SPDT, Red LED, IP67 250

View all Push Button Switches
Bulk discount available

Subtotal (1 unit)*

£15.03

(exc. VAT)

£18.04

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 90 unit(s) ready to ship
  • Plus 16 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£15.03
5 - 9£14.57
10 - 24£14.12
25 - 49£13.37
50 +£12.32

*price indicative

RS Stock No.:
111-3902
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Push Button Switch

Actuator Colour

Silver

Switch Operation

Latching

Illuminated

Yes

Panel Cutout Size

19 mm

Series

MPB19-A0F11D-324-JQ

Mount Type

Panel

Contact Configuration

SPDT

LED Colour

Red

Terminal Type

Solder Pin

IP Rating

IP67

Actuator Style

Round

Minimum Operating Temperature

-20°C

Contact AC Voltage

250V

Maximum Operating Temperature

55°C

Standards/Approvals

UL 94-V0, UL 94-V2

Switch Contact Current

5 A

Legend

Power Symbol

COO (Country of Origin):
CN

RS PRO Single Pole Double Throw (SPDT) Latching Red LED Push Button Switch, IP67, 19 mm (Dia.), Panel Mounting, 250 V AC


Looking to control the flow of electricity through your circuit? Choose this RS PRO single pole double throw (SPDT) latching red LED push button switch. It's commonly used in industrial environments such as scientific labs and food production lines.

You can solder this switch into position or panel mount it for a simple installation. Its copper contacts ensure effective connectivity without loss of power as you work. It's also marked with a power symbol, making it easy to identify.

The device has an IP67 rating, meaning it's dust-proof and resistant to submersion for half an hour in up to one metre of water. You can use this switch in medical equipment, communications technology and machinery.

Features and Benefits


  • Round, flat silver actuator

  • Natural case colour

  • Contact AC voltage rating of 250 V AC

  • Single Pole Double Throw (SPDT) contact configuration

  • Contact current rating of 5 A

  • Copper contact material

  • Illuminated

  • Illumination voltage of 24 V

  • IP67 rated

  • Red LED colour

  • Power symbol

  • Panel mounting type

  • Panel cut out size of 19 mm (diameter)

  • Standards met include cULus Recognized E 187490, ENEC 18, IK10

  • Latching switch operation

  • Solder pin terminal type
