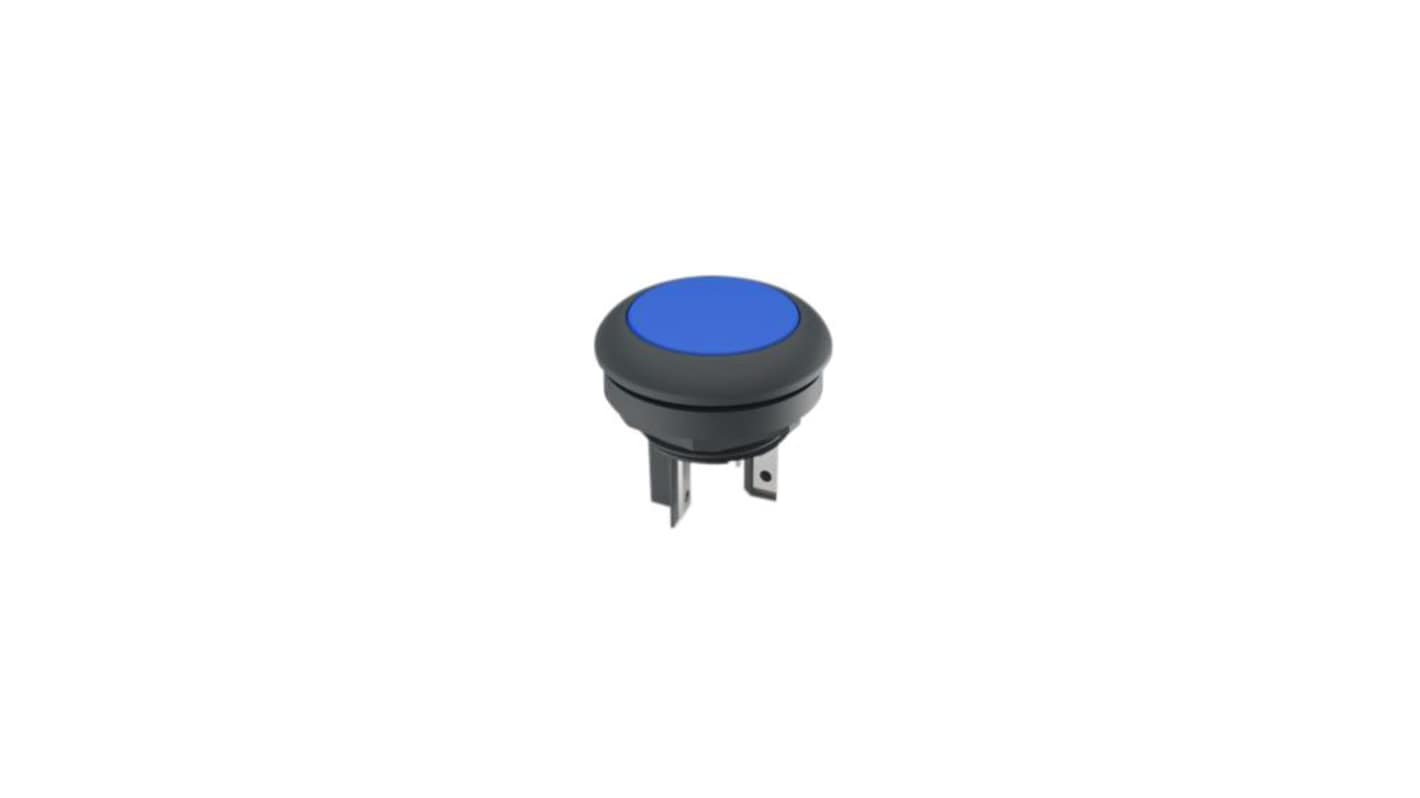

Name: RAFI LUMOTAST 16 Series Illuminated Push Button, Momentary, Through Hole, 16.2 mm Cutout, 1 NO, IP65, IP67, 35 V dc 35 V
Brand: RAFI
SKU: 553-919
Price: 65.35 GBP
Availability: Discontinued

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RAFI
	Product Type	Illuminated Push Button
	Actuator Colour	Blue
	Switch Operation	Momentary
	Illuminated	No
	Series	LUMOTAST 16
	Panel Cutout Size	16.2 mm
	Mount Type	Through Hole
	Contact Configuration	1 NO
	IP Rating	IP65, IP67
	Contact AC Voltage	35V ac
	Actuator Style	Rocker
	Minimum Operating Temperature	-25°C
	Contact DC Voltage	35V dc
	Switch Configuration	1 NO
	Maximum Operating Temperature	70°C
	Height	22.3mm
	Length	23.5mm
	Switch Contact Current	100mA
	Standards/Approvals	REACH, RoHS
	Width	23.5mm

	Select all
	Brand RAFI
	Product Type Illuminated Push Button
	Actuator Colour Blue
	Switch Operation Momentary
	Illuminated No
	Series LUMOTAST 16
	Panel Cutout Size 16.2 mm
	Mount Type Through Hole
	Contact Configuration 1 NO
	IP Rating IP65, IP67
	Contact AC Voltage 35V ac
	Actuator Style Rocker
	Minimum Operating Temperature -25°C
	Contact DC Voltage 35V dc
	Switch Configuration 1 NO
	Maximum Operating Temperature 70°C
	Height 22.3mm
	Length 23.5mm
	Switch Contact Current 100mA
	Standards/Approvals REACH, RoHS
	Width 23.5mm

Datasheet - 1.15.210.001/0601

COO (Country of Origin):: HU

The RAFI pushbutton round collar, through the use of RAFI tactile switches, the LUMOTAST 16 pushbuttons offer crisp, tactile feedback with a distinct key click. They offer an impressively wide range of possible industrial uses and applications.

Round mounting hole diameter 16.2 mm

Mounting depth 18 mm

Gold or silver contacts

Contacts standard 1NO

RAFI LUMOTAST 16 Series Illuminated Push Button, Momentary, Through Hole, 16.2 mm Cutout, 1 NO, IP65, IP67, 35 V dc 35 V
