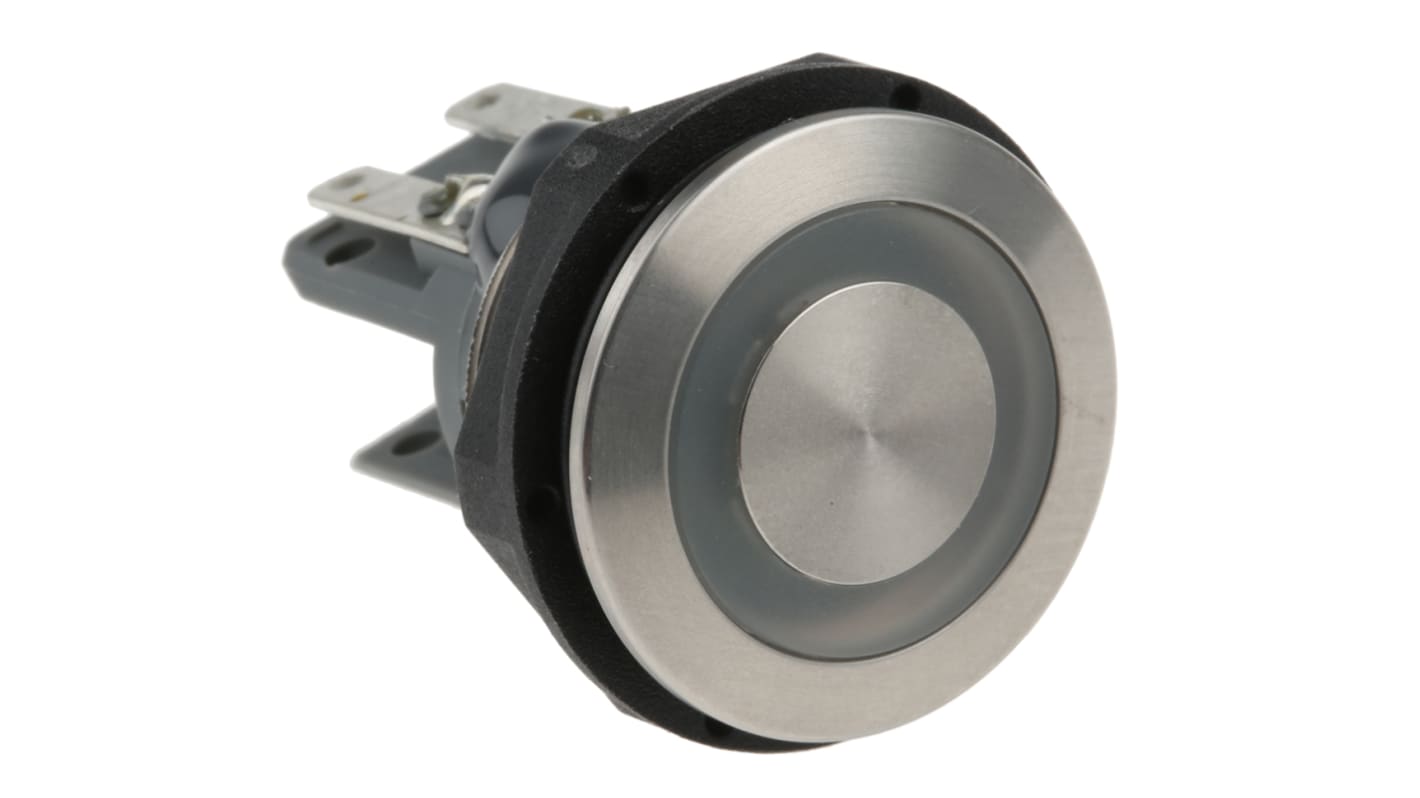

Schurter MSM 19 Series Illuminated Push Button Switch, Momentary, Panel Mount, 19mm Cutout, SPDT, Red LED, 250V ac, IP67
- RS Stock No.:
- 426-471
- Mfr. Part No.:
- 1241.6624.1181000
- Brand:
- Schurter
6 In stock - FREE next working day delivery available
Added
Price Each
£43.79
(exc. VAT)
£52.55
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £43.79 |
| 10 - 49 | £41.86 |
| 50 - 99 | £32.84 |
| 100 - 249 | £30.65 |
| 250 + | £29.56 |
- RS Stock No.:
- 426-471
- Mfr. Part No.:
- 1241.6624.1181000
- Brand:
- Schurter
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
Anti-Vandal M19 & M22 Push Button Switches - MSM Series (Single Pole)
Robust pushbutton switch suitable for use in harsh environments - IK07 shock resistance (DIN EN 50102)
Stainless steel housing (anodised aluminium for colour housed versions) and momentary actuator - IP67 protection for front side contact area
Actuator with 4.5N operating force and 1mm travel - protrudes 1.7mm above panel
Quick connect terminals
Long life - up to 1,500,000 mechanical operations
Non illuminated or red LED ring illuminated versions available in 19 or 22mm Ø panel cut outs
Illuminated versions also include a resistor and is fixed at 24V
Stainless steel housing (anodised aluminium for colour housed versions) and momentary actuator - IP67 protection for front side contact area
Actuator with 4.5N operating force and 1mm travel - protrudes 1.7mm above panel
Quick connect terminals
Long life - up to 1,500,000 mechanical operations
Non illuminated or red LED ring illuminated versions available in 19 or 22mm Ø panel cut outs
Illuminated versions also include a resistor and is fixed at 24V
Approvals
ENEC, UL, CSA
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | Yes |
| Panel Cut Out Diameter | 19mm |
| Mounting Type | Panel Mount |
| Contact Configuration | SPDT |
| Voltage Rating | 250V ac |
| Push Button Style | Round |
| LED Colour | Red |
| IP Rating | IP67 |
| Series | MSM 19 |
| Contact Current Rating | 5 A @ 250 V ac |
| Manufacturer Part No. | 1241.6624.1181000 |
