MPN

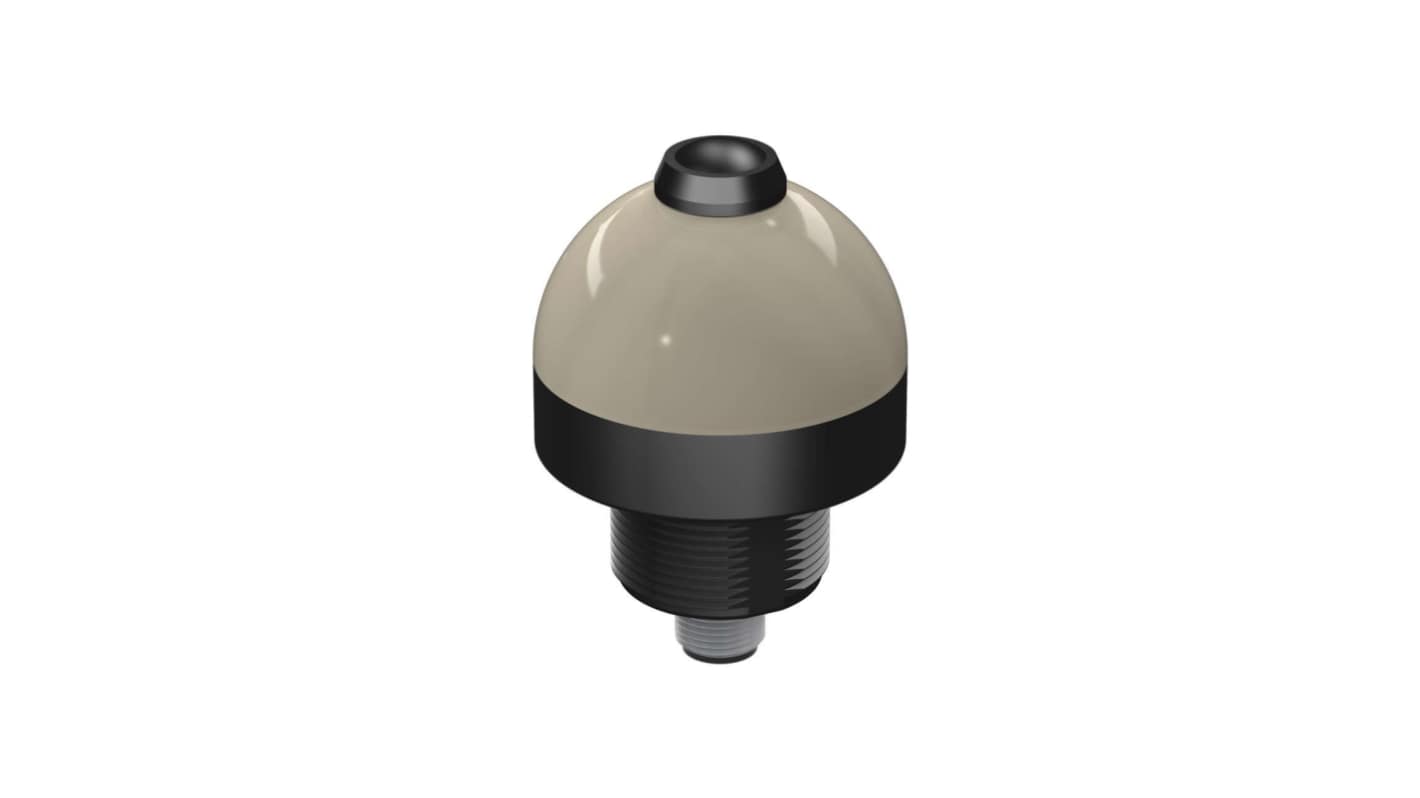

Banner K50 Series Illuminated Push Button Switch, Base Blue, 1 NO/1 NC, IP67, IP69K

RS Stock No.:: 294-279
Mfr. Part No.:: K50APPBBXDQ
Brand:: Banner

Banner K50 Series Illuminated Push Button Switch, Base Blue, 1 NO/1 NC, IP67, IP69K

Subtotal (1 unit)*

£167.76

(exc. VAT)

£201.31

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit
1 +	£167.76

*price indicative

RS Stock No.:: 294-279
Mfr. Part No.:: K50APPBBXDQ
Brand:: Banner

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Banner
	Product Type	Push Button Switch
	Illuminated	Yes
	Series	K50
	Mount Type	Base
	Push Button Actuation	Momentary
	Push Button Colour	Blue
	Contact Configuration	1 NO/1 NC
	Push Button Style	Illuminated Dome, Momentary
	Push Button Shape	Dome
	Terminal Type	Plug-In
	IP Rating	IP67, IP69K
	Push Button Diameter	50mm
	Illumination Voltage	30V dc
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	50°C
	Push Button Material	Thermoplastic
	Hazardous Area Certification	No
	Standards/Approvals	DIN 40050-9, IEC IP67, cULus, UK CA, MIL-STD-202F, Method 201A, CE, IEC 60947-5-2
	Body Material	Polycarbonate

	Select all
	Brand Banner
	Product Type Push Button Switch
	Illuminated Yes
	Series K50
	Mount Type Base
	Push Button Actuation Momentary
	Push Button Colour Blue
	Contact Configuration 1 NO/1 NC
	Push Button Style Illuminated Dome, Momentary
	Push Button Shape Dome
	Terminal Type Plug-In
	IP Rating IP67, IP69K
	Push Button Diameter 50mm
	Illumination Voltage 30V dc
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 50°C
	Push Button Material Thermoplastic
	Hazardous Area Certification No
	Standards/Approvals DIN 40050-9, IEC IP67, cULus, UK CA, MIL-STD-202F, Method 201A, CE, IEC 60947-5-2
	Body Material Polycarbonate

Datasheet - K50APPBBXDQ

COO (Country of Origin):: US

The Banner K50 Series Pick to Light is a rugged, easy to install solution designed for error-proofing and parts verification in assembly and picking processes. These compact, self contained devices do not require an external controller. Featuring an illuminated dome, the K50 Series provides a bright, easy to see green job light, with some models also offering a red light for alternate functions, enhancing visibility and operational efficiency in various industrial applications.

Fully encapsulated IP67 protection rated

Ideal for use in abusive environments rated to IP69K

Immune to ambient light and EMI and with interference

AS-i module compatible

12 V dc to 30 V dc operation

Banner K50 Series Illuminated Push Button Switch, Base Blue, 1 NO/1 NC, IP67, IP69K
