Eaton M22 Series Push Button Light Switch, Maintained, Flush, 22.5 mm Cutout, IP69K, IP67, IP66
- RS Stock No.:
- 251-934
- Mfr. Part No.:
- 216770 M22S-DRP-Y-X
- Brand:
- Eaton
Subtotal (1 unit)*
£15.56
(exc. VAT)
£18.67
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £15.56 |
*price indicative
- RS Stock No.:
- 251-934
- Mfr. Part No.:
- 216770 M22S-DRP-Y-X
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Push Button Light Switch | |
| Actuator Colour | Yellow | |
| Switch Operation | Maintained | |
| Illuminated | No | |
| Panel Cutout Size | 22.5 mm | |
| Series | M22 | |
| Mount Type | Flush | |
| IP Rating | IP69K, IP67, IP66 | |
| Minimum Operating Temperature | -25°C | |
| Actuator Style | Push Button | |
| Maximum Operating Temperature | 70°C | |
| Width | 37 mm | |
| Standards/Approvals | CE IEC/EN 60947 UL 508 CSA-C22.2 No. 94-91 VDE 0660 UL Category Control No.: NKCR IEC/EN 60947-5 UL CSA CSA File No.: 012528 CSA-C22.2 No. 14-05 UL File No.: E29184 CSA Class No.: 3211-03 DNV GL LR | |
| Height | 43mm | |
| Length | 37mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Push Button Light Switch | ||
Actuator Colour Yellow | ||
Switch Operation Maintained | ||
Illuminated No | ||
Panel Cutout Size 22.5 mm | ||
Series M22 | ||
Mount Type Flush | ||
IP Rating IP69K, IP67, IP66 | ||
Minimum Operating Temperature -25°C | ||
Actuator Style Push Button | ||
Maximum Operating Temperature 70°C | ||
Width 37 mm | ||
Standards/Approvals CE IEC/EN 60947 UL 508 CSA-C22.2 No. 94-91 VDE 0660 UL Category Control No.: NKCR IEC/EN 60947-5 UL CSA CSA File No.: 012528 CSA-C22.2 No. 14-05 UL File No.: E29184 CSA Class No.: 3211-03 DNV GL LR | ||
Height 43mm | ||
Length 37mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

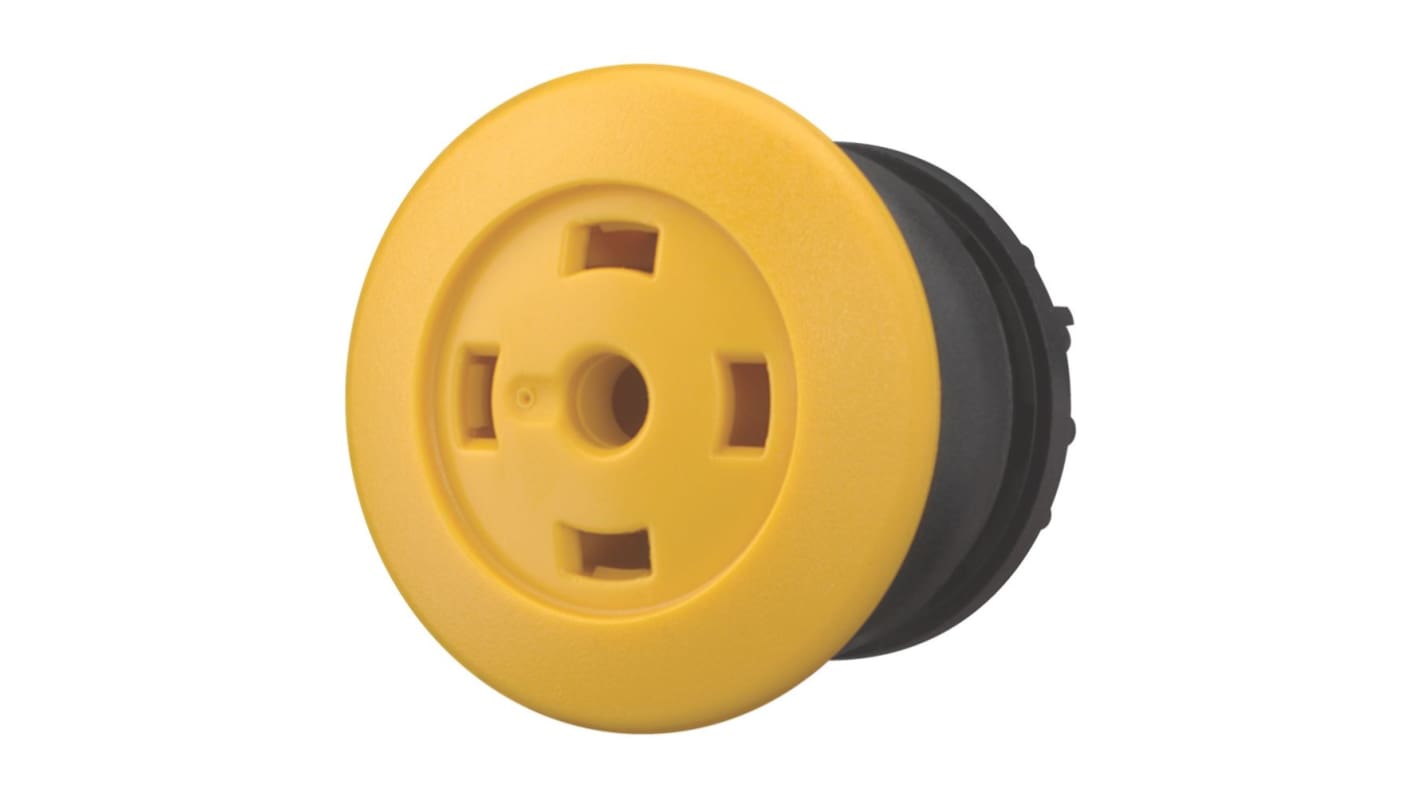

The Eaton mushroom actuator from the Moeller series offers a robust and reliable solution for control applications requiring a maintained push-button functionality. With a striking yellow actuator and a black bezel, it stands out while ensuring ease of use in various operational settings. Designed for durability, this actuator is compliant with rigorous industrial standards, showcasing its suitability for harsh environments. The corrosion-resistant materials and significant mechanical lifespan make it ideal for frequent use in automation and control systems, where both performance and dependability are paramount. Enhanced by its compatibility with SmartWire-DT connections, it integrates seamlessly into existing systems, providing flexibility and efficiency in operations.
Features a classic mushroom shape for intuitive operation
Complies with multiple safety certifications for peace of mind
Constructed with resilient materials for longevity in challenging conditions
Offers options for mounting position to suit various applications
Mechanical lifespan reaches up to one million operations, ensuring reliability
Temperature operating range adapts to diverse environmental conditions
Integrated functionality supports seamless upgrade options in control systems
