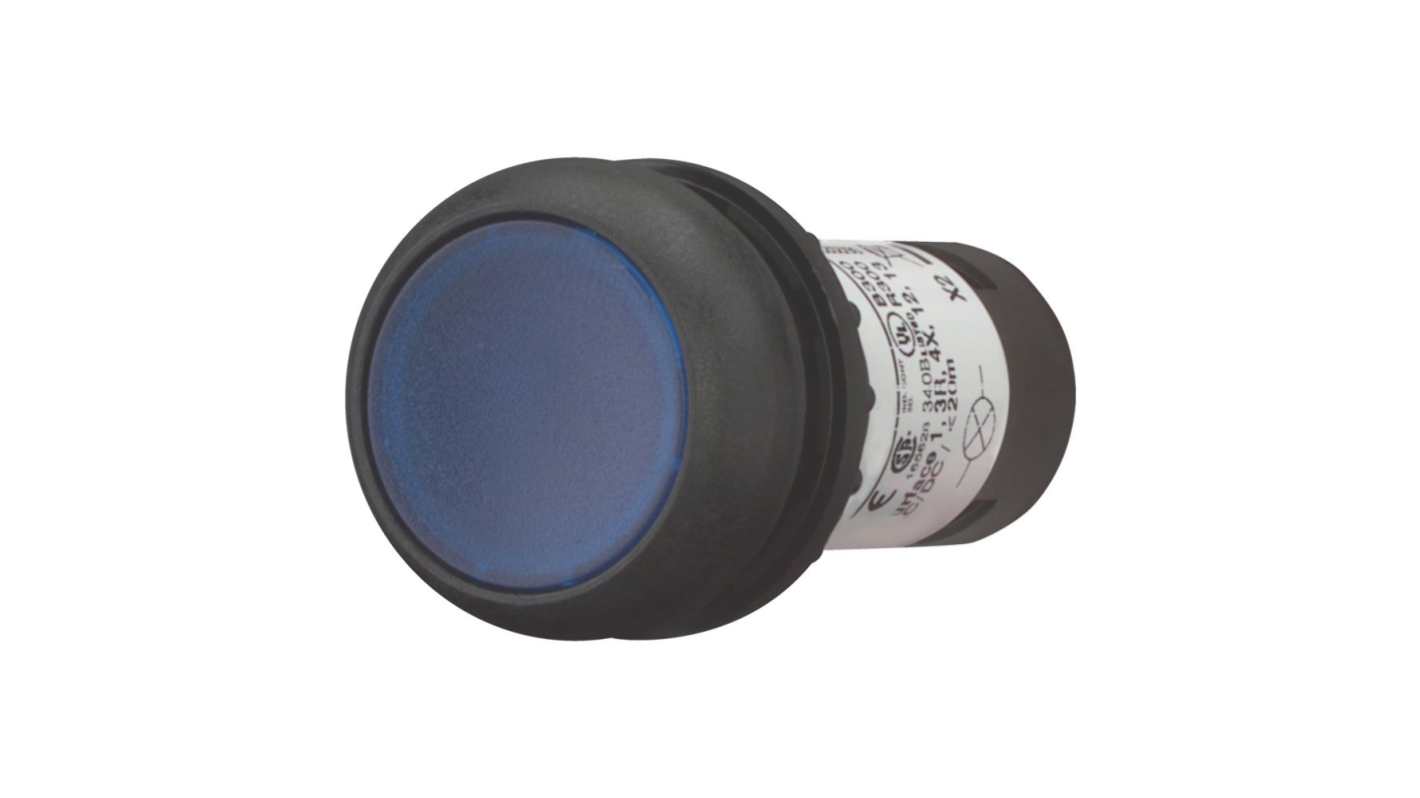

Eaton C22 Series Illuminated Push Button Switch, Momentary, 22.5 mm Cutout, 1 NO, Blue LED, IP67, IP69K 230 V ac
- RS Stock No.:
- 247-804
- Mfr. Part No.:
- 136631 C22S-DL-B-K10-230
- Brand:
- Eaton
Subtotal (1 unit)*
£49.54
(exc. VAT)
£59.45
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 30 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £49.54 |
*price indicative
- RS Stock No.:
- 247-804
- Mfr. Part No.:
- 136631 C22S-DL-B-K10-230
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Push Button Switch | |
| Actuator Colour | Blue | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Panel Cutout Size | 22.5 mm | |
| Series | C22 | |
| Contact Configuration | 1 NO | |
| Terminal Type | Screw | |
| LED Colour | Blue | |
| IP Rating | IP67, IP69K | |
| Minimum Operating Temperature | -25°C | |
| Actuator Style | Push Button | |
| Contact AC Voltage | 230V ac | |
| Switch Configuration | 1 NO | |
| Maximum Operating Temperature | 70°C | |
| Height | 55mm | |
| Width | 30mm | |
| Standards/Approvals | UL, IECEN 6094751, CE, UL NKCR, CSA Class .: 110, CSA UL, CSAC. . 1405 and 94M91, CSA 16568, UL E9184, VDE 0660 | |
| Length | 30mm | |
| Legend | Blank | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Push Button Switch | ||
Actuator Colour Blue | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Panel Cutout Size 22.5 mm | ||
Series C22 | ||
Contact Configuration 1 NO | ||
Terminal Type Screw | ||
LED Colour Blue | ||
IP Rating IP67, IP69K | ||
Minimum Operating Temperature -25°C | ||
Actuator Style Push Button | ||
Contact AC Voltage 230V ac | ||
Switch Configuration 1 NO | ||
Maximum Operating Temperature 70°C | ||
Height 55mm | ||
Width 30mm | ||
Standards/Approvals UL, IECEN 6094751, CE, UL NKCR, CSA Class .: 110, CSA UL, CSAC. . 1405 and 94M91, CSA 16568, UL E9184, VDE 0660 | ||
Length 30mm | ||
Legend Blank | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The Eaton illuminated pushbutton actuator from the Moeller series C22 offers a cutting-edge solution for applications requiring reliable operational control. Designed with a sleek, flat profile, this actuator provides a momentary contact function, enabling quick and responsive activation. The actuator boasts a vibrant blue LED, ensuring visibility in various lighting conditions while its robust screw connection guarantees a steadfast installation. Ideal for industrial settings, it seamlessly integrates into a range of systems, enhancing user interaction and safety. The actuator is designed with an array of compliance certifications, ensuring it meets stringent operational standards. With its IP67/IP69K rating, this product is capable of withstanding harsh environmental conditions, making it the perfect choice for demanding applications. Furthermore, its impressive lifespan ensures longevity and reduced maintenance, making it a cost-effective solution for operators.
Flat design enhances aesthetic appeal in any application
Momentary function ensures quick activation and ease of use
LED illumination boosts visibility, improving operational efficiency
Screw connection facilitates straightforward installation and reliability
Compliant with multiple industry certifications for peace of mind
IP67/IP69K protection guarantees durability in challenging environments
Long mechanical lifespan minimises replacement frequency and costs
