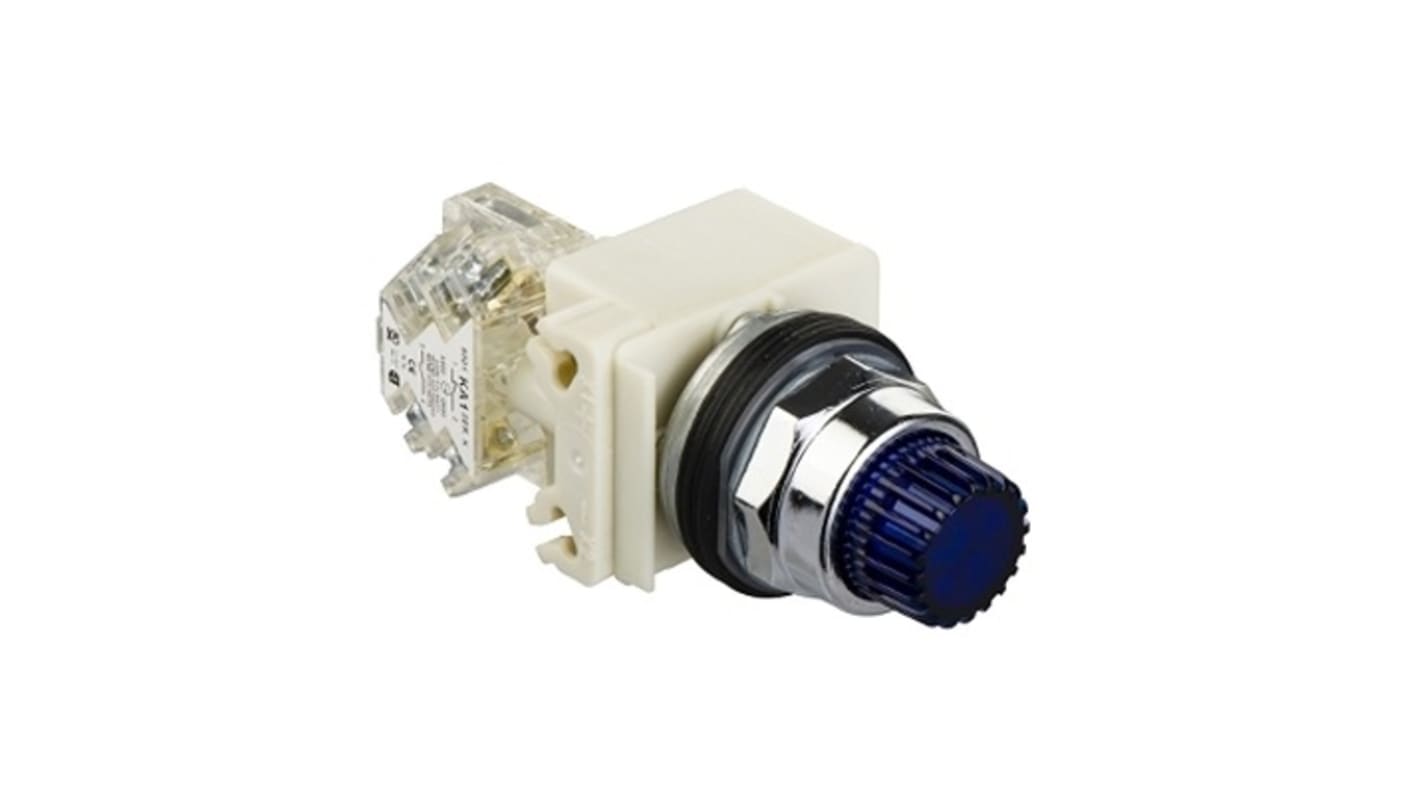

Schneider Electric 9001K2L35 Series Illuminated Push Button Switch, Silicone Polymer, 30 mm Cutout, 1 CO, IP66, 28 V dc

RS Stock No.:: 245-018
Mfr. Part No.:: 9001K2L35LH13
Brand:: Schneider Electric

Schneider Electric 9001K2L35 Series Illuminated Push Button Switch, Silicone Polymer, 30 mm Cutout, 1 CO, IP66, 28 V dc

Subtotal (1 unit)*

£137.79

(exc. VAT)

£165.35

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

Shipping from 15 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£137.79

*price indicative

Schneider Electric Harmony XB Push Buttons

Schneider Electric's high-quality Harmony XB push buttons are a versatile and reliable choice for your control panel needs

Shop Here

RS Stock No.:: 245-018
Mfr. Part No.:: 9001K2L35LH13
Brand:: Schneider Electric

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Actuator Colour	Blue
	Switch Operation	Silicone Polymer
	Product Type	Push Button Switch
	Illuminated	Yes
	Panel Cutout Size	30 mm
	Series	9001K2L35
	Contact Configuration	1 CO
	Terminal Type	Screw Clamp
	IP Rating	IP66
	Contact DC Voltage	28V dc
	Contact AC Voltage	600V ac
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C
	Switch Contact Current	10A
	Width	54mm
	Standards/Approvals	CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
	Length	103mm
	Height	42mm

	Select all
	Brand Schneider Electric
	Actuator Colour Blue
	Switch Operation Silicone Polymer
	Product Type Push Button Switch
	Illuminated Yes
	Panel Cutout Size 30 mm
	Series 9001K2L35
	Contact Configuration 1 CO
	Terminal Type Screw Clamp
	IP Rating IP66
	Contact DC Voltage 28V dc
	Contact AC Voltage 600V ac
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C
	Switch Contact Current 10A
	Width 54mm
	Standards/Approvals CSA C22.2 No. 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
	Length 103mm
	Height 42mm

RoHS Status: Exempt

COO (Country of Origin):: FR

Schneider Electric Harmony Series Push Button Switch, 30mm Panel Cut Out Diameter, 600V Voltage Rating - 9001K2L35LH13

This push button switch is a versatile component designed for various automation and control applications. With a robust metal body and a diameter of 30mm, this illuminated push button offers both functionality and durability. It operates with a spring return mechanism and is rated up to 600V, making it suitable for a wide range of electrical environments while ensuring reliable performance across temperatures from -25°C to +70°C.

Features & Benefits

• Spring return mechanism facilitates quick and reliable operation
• Illuminated design enhances visibility in low-light conditions
• Octagonal shape provides easy and precise activation
• Constructed from Durable metal for long-lasting use
• IP66 rating ensures protection against dust and water ingress
• Silver alloy contacts enhance conductivity and performance

Applications

• Optimised for control panels in industrial automation systems
• Utilised in machinery and equipment requiring a spring return function
• Effective in electrical enclosures and outdoor for weather resistance
• Incorporated into lighting control systems for clear visibility
• Suitable for various electronic circuits needing a reliable switching solution

What is the maximum current rating suitable for applications?

The maximum contact current rating stands at 10A, which allows it to effectively handle substantial electrical loads without failure.

How does the IP66 rating impact its usability?

The IP66 rating ensures that the switch is fully protected against dust and water, making it suitable for outdoor and harsh environments.

What type of Terminal connection does this product utilise?

It features a screw clamp Terminal type, which provides secure connections for reliable electrical performance.

What temperature range can this switch operate within?

This switch is designed to function efficiently within a temperature range from -25°C to +70°C, accommodating various environmental conditions.

What material is used for the contacts in the switch?

The contacts are MADE from silver alloy, which optimises conductivity and helps in maintaining excellent performance over time.
