Schneider Electric Harmony Series Illuminated Push Button, Slow Brake, Panel Mount, 16mm Cutout, SPST, 250V, IP65
- RS Stock No.:
- 177-349
- Mfr. Part No.:
- XB6AW3B1B
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£29.36
(exc. VAT)
£35.23
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 5 unit(s) shipping from 27 October 2025
- Plus 12 unit(s) shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £29.36 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 177-349
- Mfr. Part No.:
- XB6AW3B1B
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Switch Operation | Slow Brake | |
| Illuminated | Yes | |
| Panel Cut Out Diameter | 16mm | |
| Series | Harmony | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Green | |
| Contact Configuration | SPST | |
| Voltage Rating | 250V | |
| Push Button Style | Round | |
| IP Rating | IP65 | |
| Push Button Diameter | 18mm | |
| Push Button Material | Plastic (Bezel) | |
| Contact Current Rating | 3A | |
| Contact Material | Silver Alloy | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Manufacturer Part No. | XB6AW3B1B | |
| Panel Cut Out Height | 18mm | |
| Maximum AC Voltage | 240V | |
| Terminal Type | Quick Connect | |
| Operating Temperature Range | -25 → +70°C | |
| Minimum Operating Temperature | -25°C | |
| Panel Cut Out Width | 18mm | |
| Maximum Operating Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Switch Operation Slow Brake | ||
Illuminated Yes | ||
Panel Cut Out Diameter 16mm | ||
Series Harmony | ||
Mounting Type Panel Mount | ||
Push Button Colour Green | ||
Contact Configuration SPST | ||
Voltage Rating 250V | ||
Push Button Style Round | ||
IP Rating IP65 | ||
Push Button Diameter 18mm | ||
Push Button Material Plastic (Bezel) | ||
Contact Current Rating 3A | ||
Contact Material Silver Alloy | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Manufacturer Part No. XB6AW3B1B | ||
Panel Cut Out Height 18mm | ||
Maximum AC Voltage 240V | ||
Terminal Type Quick Connect | ||
Operating Temperature Range -25 → +70°C | ||
Minimum Operating Temperature -25°C | ||
Panel Cut Out Width 18mm | ||
Maximum Operating Temperature +70°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

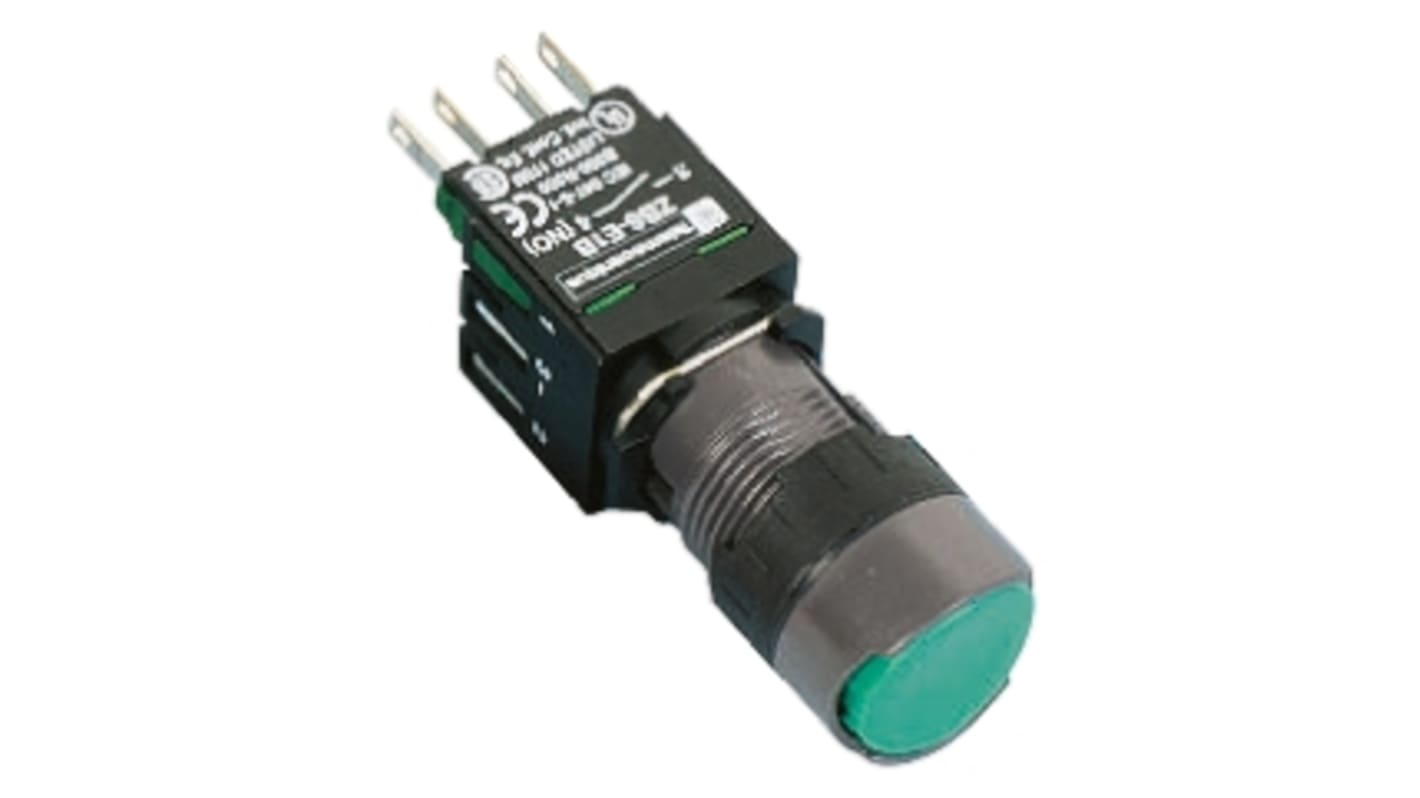

Schneider Electric Harmony XB6 Series Push Button, 16mm Panel Cut Out Diameter, SPST Contact Configuration - XB6AW3B1B
This illuminated push button serves as a versatile component for various automated applications. Its sturdy construction and efficient design make it suitable for controlling machinery in electrical and mechanical sectors. With a sleek green finish, it enhances visibility while ensuring operational dependability, catering to the requirements of professionals involved in automation solutions.
Features & Benefits
• Quick connection design to simplify installation
• Spring return operation for enhanced user control and safety
• IP65 rating ensures reliable performance in challenging environments
• LED light source for improved visibility
• Endures one million electrical cycles, contributing to longevity
• Compact size accommodates standard panel cut-outs seamlessly
• Spring return operation for enhanced user control and safety
• IP65 rating ensures reliable performance in challenging environments
• LED light source for improved visibility
• Endures one million electrical cycles, contributing to longevity
• Compact size accommodates standard panel cut-outs seamlessly
Applications
• Controls machinery in industrial settings
• Used in automation systems to boost operational efficiency
• Ideal for installation in control panels for enhanced functionality
• Suited for equipment demanding a durable and dependable switch
• Used in automation systems to boost operational efficiency
• Ideal for installation in control panels for enhanced functionality
• Suited for equipment demanding a durable and dependable switch
What voltage range is compatible with this component?
It supports a supply voltage of 12…24V AC/DC.
How does the IP rating affect the installation location?
The IP65 rating indicates suitability for use in dusty and wet conditions.
Is it possible to install it in any orientation?
Yes, the design permits flexible installation in any position.
What type of connections does it use for wiring?
It features faston connectors that facilitate quick and simple wiring.
How often will it need maintenance during operation?
Due to its robust design, minimal maintenance is required under normal use conditions.
Schneider Electric ZB6 Harmony 16mm
A range of IP65 protected components which are easily and quickly mounted in 16mm diameter holes. Each component can be ordered separately to build the required device. Also available are contact blocks with slow-break positive opening contacts with ’Faston’/solder connections. Rating Ue 250Vac, Ie 1.5A; Ue 250Vdc, Ie 0.1A, Io A Ith operating temp. -25 to +70°C.
