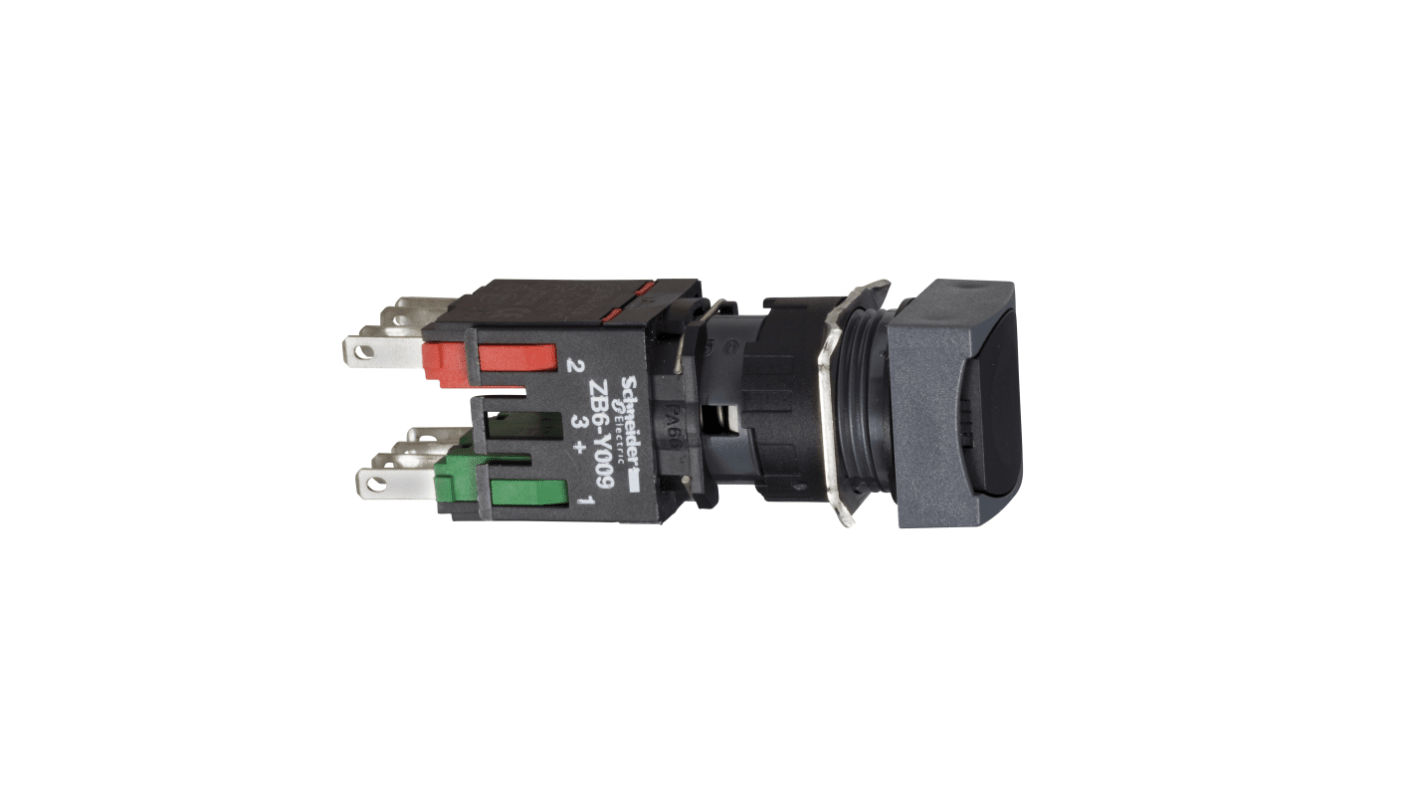

Schneider Electric Harmony Series Push Button, Slow Brake, Panel Mount, 16mm Cutout, SPDT, 250V, IP65
- RS Stock No.:
- 177-327
- Mfr. Part No.:
- XB6CA25B
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£21.34
(exc. VAT)
£25.61
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £21.34 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 177-327
- Mfr. Part No.:
- XB6CA25B
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Switch Operation | Slow Brake | |
| Illuminated | No | |
| Panel Cut Out Diameter | 16mm | |
| Series | Harmony | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Black | |
| Contact Configuration | SPDT | |
| Voltage Rating | 250V | |
| Push Button Style | Square | |
| IP Rating | IP65 | |
| Push Button Material | Plastic (Bezel) | |
| Contact Current Rating | 3A | |
| Better World Product | Yes | |
| Contact Material | Silver Alloy | |
| Better World Verification | Green Premium | |
| Manufacturer Part No. | XB6CA25B | |
| Panel Cut Out Height | 18mm | |
| Terminal Type | Quick Connect | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +70°C | |
| Maximum DC Voltage | 250V | |
| Operating Temperature Range | -25 → +70°C | |
| Panel Cut Out Width | 18mm | |
| Maximum AC Voltage | 240V | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Switch Operation Slow Brake | ||
Illuminated No | ||
Panel Cut Out Diameter 16mm | ||
Series Harmony | ||
Mounting Type Panel Mount | ||
Push Button Colour Black | ||
Contact Configuration SPDT | ||
Voltage Rating 250V | ||
Push Button Style Square | ||
IP Rating IP65 | ||
Push Button Material Plastic (Bezel) | ||
Contact Current Rating 3A | ||
Better World Product Yes | ||
Contact Material Silver Alloy | ||
Better World Verification Green Premium | ||
Manufacturer Part No. XB6CA25B | ||
Panel Cut Out Height 18mm | ||
Terminal Type Quick Connect | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
Maximum DC Voltage 250V | ||
Operating Temperature Range -25 → +70°C | ||
Panel Cut Out Width 18mm | ||
Maximum AC Voltage 240V | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Schneider Electric Harmony XB6 Series Push Button, 16mm Panel Cut Out Diameter, IP65 - XB6CA25B
This push button switch is engineered for dependable performance across various applications. Its black square flush design allows for seamless integration into panel mounting systems. The compact diameter of 16mm ensures compatibility with standard cut-outs, making it a vital component for automation and electronic solutions that require robust control interfaces. With an IP65 rating, this product offers protection against dust and water ingress, suitable for use in challenging environments.
Features & Benefits
• IP65 rating provides resistance to water and dust
• Spring return mechanism enables quick reset functionality
• SPDT configuration allows for versatile circuit management
• Quick connect terminals facilitate straightforward installation and maintenance
• Designed for durability, rated for 2,000,000 mechanical cycles
• Black flush design adds aesthetic value to control panels
• Spring return mechanism enables quick reset functionality
• SPDT configuration allows for versatile circuit management
• Quick connect terminals facilitate straightforward installation and maintenance
• Designed for durability, rated for 2,000,000 mechanical cycles
• Black flush design adds aesthetic value to control panels
Applications
• Utilised for control functions in automation systems
• Suitable for electrical and mechanical control panels
• Ideal for environments needing effective protection from the elements
• Convenient for requiring compact control solutions
• Suitable for electrical and mechanical control panels
• Ideal for environments needing effective protection from the elements
• Convenient for requiring compact control solutions
How is the push button mounted?
It is designed for panel mounting, fitting standard cut-outs for easy installation.
What is the operating temperature range?
It operates effectively in temperatures ranging from -25°C to +70°C.
Can this be used in environments exposed to moisture?
Yes, the IP65 rating indicates adequate protection against water ingress.
What type of connection does it use?
It uses quick connect terminals for efficient wiring connections.
How durable is the push button in heavy usage?
It has a mechanical durability of up to 2,000,000 cycles, ensuring lasting performance.
Schneider Electric ZB6 Harmony 16mm
A range of IP65 protected components which are easily and quickly mounted in 16mm diameter holes. Each component can be ordered separately to build the required device. Also available are contact blocks with slow-break positive opening contacts with ’Faston’/solder connections. Rating Ue 250Vac, Ie 1.5A; Ue 250Vdc, Ie 0.1A, Io A Ith operating temp. -25 to +70°C.
