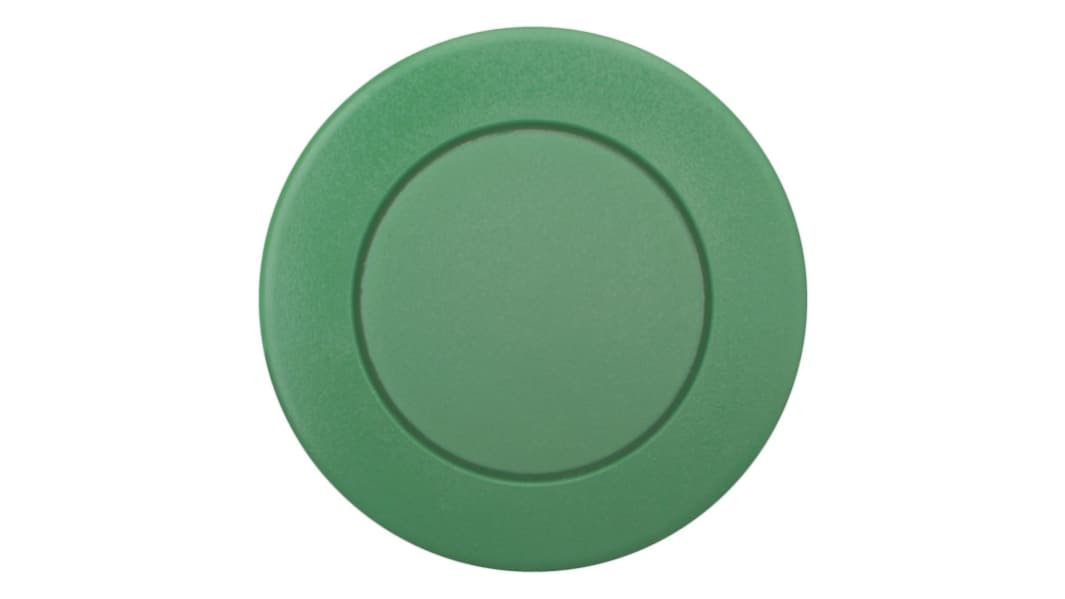

Eaton RMQ Titan M22 Series Green Momentary Push Button Head, 22mm Cutout, IP67
- RS Stock No.:
- 847-5099
- Mfr. Part No.:
- 216716 M22-DP-G
- Brand:
- Eaton
Subtotal (1 unit)*
£14.20
(exc. VAT)
£17.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 94 unit(s) ready to ship
- Plus 41 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £14.20 |
*price indicative
- RS Stock No.:
- 847-5099
- Mfr. Part No.:
- 216716 M22-DP-G
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Series | RMQ Titan M22 | |
| Cutout Diameter | 22mm | |
| Push Button Colour | Green | |
| Push Button Actuation | Momentary | |
| Push Button Style | Mushroom | |
| Push Button Material | Plastic | |
| IP Rating | IP67 | |
| Push Button Marking | Unmarked | |
| Push Button Diameter | 36.5mm | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Series RMQ Titan M22 | ||
Cutout Diameter 22mm | ||
Push Button Colour Green | ||
Push Button Actuation Momentary | ||
Push Button Style Mushroom | ||
Push Button Material Plastic | ||
IP Rating IP67 | ||
Push Button Marking Unmarked | ||
Push Button Diameter 36.5mm | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- MA
Eaton RMQ Titan M22 Series Push Button Head, 37x43x37mm, IP67 / IP69K - 216716 M22-DP-G
This push button head from Eaton is an actuator for control systems featuring a momentary spring-return actuation, allowing for quick on-off operations. Measuring 37mm in length, 43mm in height, and 37mm in width, it is constructed from durable plastic for long-lasting use even in challenging environments.
Features & Benefits
• Designed for easy installation with a 22mm cutout
• Mechanical lifespan of 5,000,000 operations
• Spring-return mechanism for user convenience
• Non-illuminated, suitable for standard control scenarios
• Mechanical lifespan of 5,000,000 operations
• Spring-return mechanism for user convenience
• Non-illuminated, suitable for standard control scenarios
Applications
• Used for control panels in industrial automation
• Ideal for machinery with intermittent operation requirements
• Employed in emergency control systems
• Ideal for machinery with intermittent operation requirements
• Employed in emergency control systems
Can it operate in extreme temperatures?
Yes, it functions well between -25°C and +70°C.
Is it suitable for outdoor use?
Yes, due to its IP67 rating against water and dust.
Can it handle high-frequency operations?
Yes, it supports up to 3600 operations per hour.
Is it easy to install?
Yes, it is designed for straightforward installation in various setups.
Note
Eaton formerly known as Moeller
