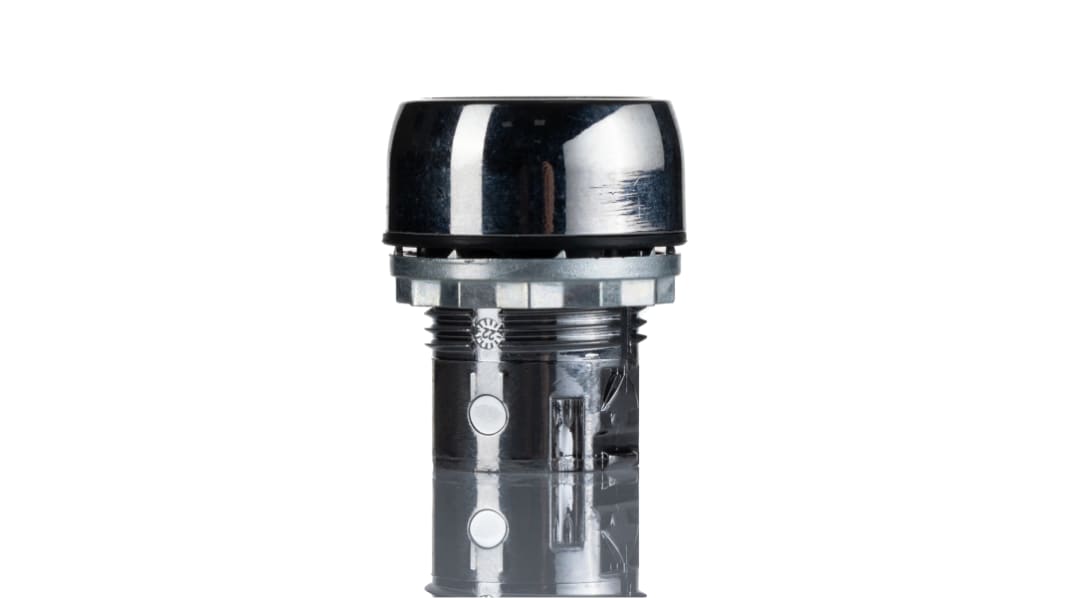

Allen Bradley 800F Series Green Illuminated Alternate Push Button Head, 22mm Cutout, IP65

View all Push Button Heads

Subtotal (1 unit)*

£9.79

(exc. VAT)

£11.75

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 10 unit(s) ready to ship
  • Plus 999,999,989 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£9.79

*price indicative

RS Stock No.:
536-5015
Mfr. Part No.:
800FM-LFA3
Brand:
Allen Bradley
Find similar products by selecting one or more attributes.
Select all

Brand

Allen Bradley

Series

800F

Cutout Diameter

22mm

Push Button Colour

Green

Push Button Actuation

Alternate

Push Button Style

Round

Push Button Material

Metal

IP Rating

IP65

Push Button Diameter

29.6mm

Illuminated

Yes

Terminal Type

Screw

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-25°C

RoHS Status: Exempt

COO (Country of Origin):
CN

Pushbutton Operators


Finished with corrosion resistant anodised plating
Low front of panel profile
Multi-coloured types contain 1 cap of each colour

Allen Bradley Push Button Head, Illuminated, Green Colour - 800FM-LFA3


Need a simple way to get your machine processes off and running? Turn to this push button head from Rockwell Automation's Allen Bradley range. Its illuminated cap gives you the green light you need to start your operations. An alternate actuation style means you press the device once to begin and maintain your desired function, taking manual control off your hands. The two-in-one device also lets you stop operations by simply pressing the button again. Its screw terminals make it a cinch to install and help to ensure that your wiring stays securely in place, even when bumps and vibrations happen.

Features & Benefits


• Compact cutout diameter of 22mm for installation in busy setups
• Metal material for resistance to impact and corrosion
• LED lamp is highly visible in most lighting conditions for ease of identification on a crowded panel
• Broad operating temperature range of -25°C to +70°C for use in demanding environments

Standards and Certifications


• UL
• CE
• CSA
• CCC

Can I use this device in damp environments?


Yes, this device has an IP65 rating, meaning it's completely protected against dust and low-pressure water jets.


800F Series Pushbuttons & Indicators


The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.


The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:


• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
