Eaton's M22 range of illuminated push button heads are designed to simplify the process of buying individual components. Available with either momentary, latching or maintained switching in 2 to 4 position options, these switch actuators make it easy to select the right switch type for your electrical and industrial control needs. Ideally suited for industrial applications the front elements have an enhanced IP66 protection rating making them dust tight and protected against water projection.

The RMQ-Titan M22 series from Eaton offers a wide range of attractive, ergonomically designed illuminated and non-illuminated push buttons including LED elements, selector switches, key switches, push-pulls, alternate action and turn-to-release operators.

This comprehensive range of pilot devices is engineered to ensure that your machines, systems, and processes keep running smoothly and offers a wide variety of applications and processes in automation and control environments. Designed for optimal functionality with a high degree of protection this range offers a wide range of solutions for your business.

• 22.5 mm cutout diameter
• Mechanical lifespan of over 100,000 operations
• Operating temperature of -25 to +70°C
• Low profile plastic design gives this control switch an attractive modern look and feel
• The high degrees of protection in the front (up to IP69K) and at the back (IP65) of these devices make the perfect choice for applications in which oil-tight protection from dirt or liquids is required.
• The push button head is supplied as a single unit, enabling easy installation for worldwide applications
• Modular M22 series features adaptable functionalities
• IP67/IP69 rated

UL, CSA.

IEC/EN60947.

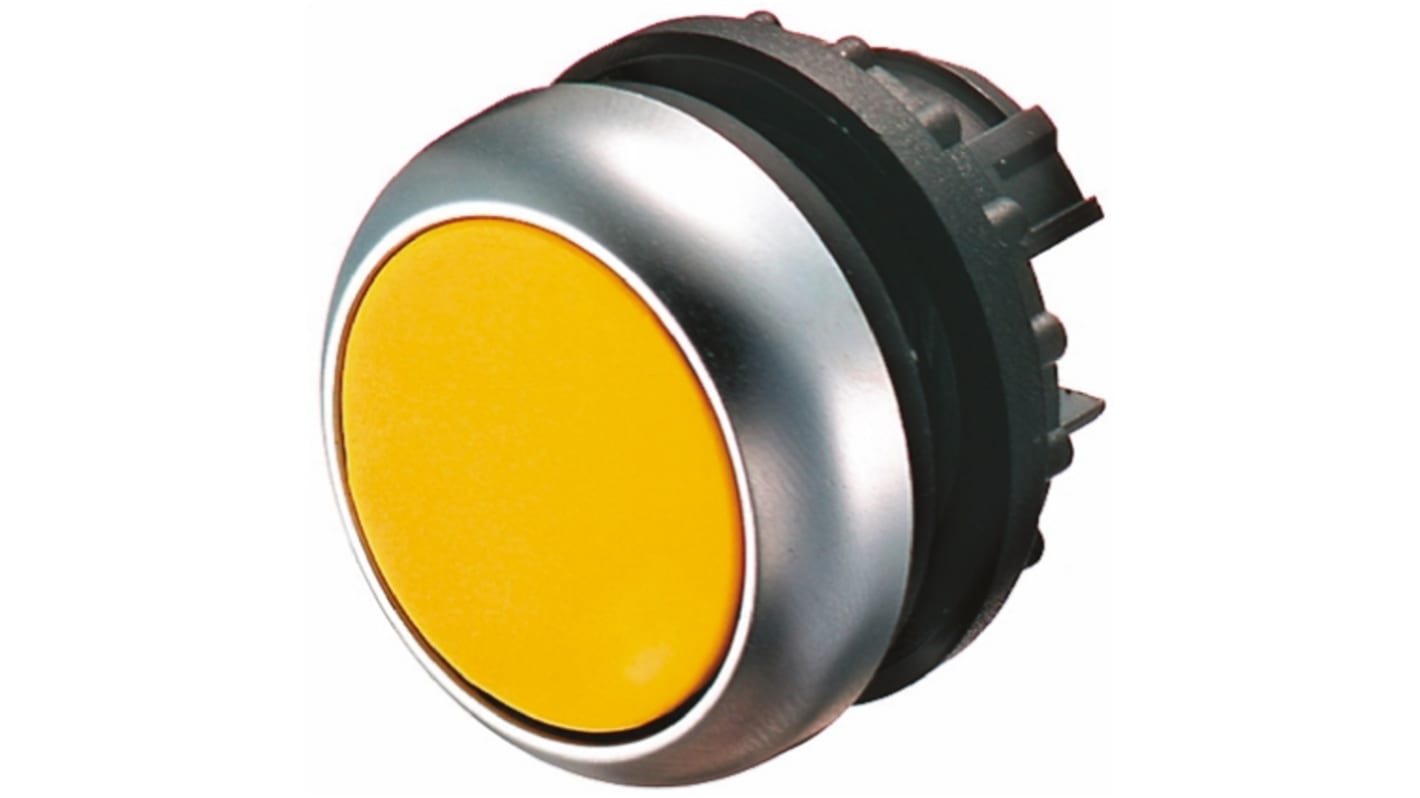

This illuminated pushbutton actuator from the RMQ-Titan series offers a robust design with an IP69K protection rating, ensuring reliable performance in harsh environments. It comes with a mechanical lifespan exceeding 1 million operations and a temperature range from -25 to +70°C. The flush design allows for seamless integration into compatible machinery.

• Maintained actuation for constant operation
• Illuminated design enhances visibility in low light
• High mechanical shock resistance ensures durability
• Single unit functionality simplifies installation

• Ideal for automation systems in harsh environments
• Utilised in electrical panels for easy access
• Suitable for control interfaces requiring visual feedback

Yes, it is resistant to damp conditions as per IEC standards.

The actuating force is less than or equal to 5 N.

Eaton formerly known as Moeller
