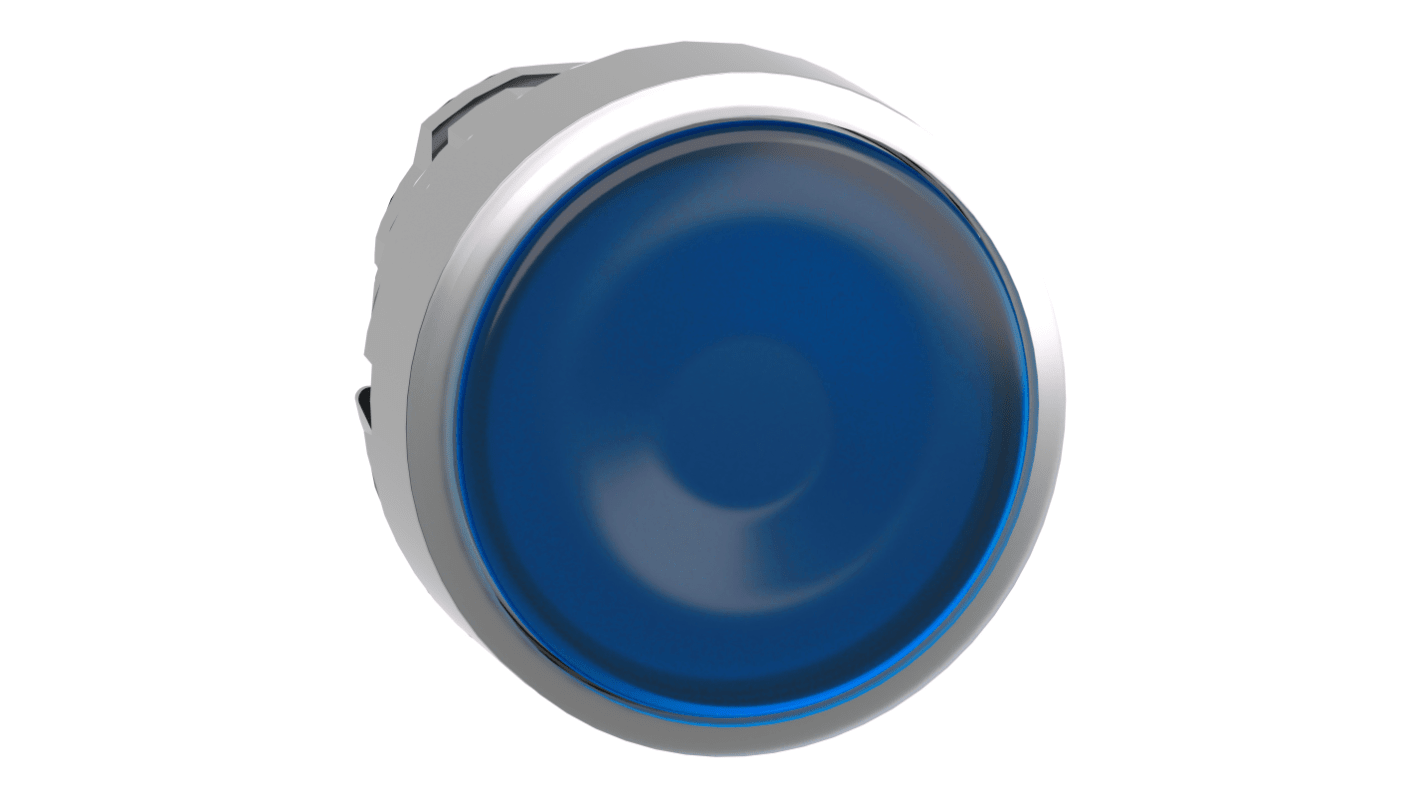

Schneider Electric Harmony XB4 Series Blue Illuminated Spring Return Push Button Head, 22mm Cutout, IP66, IP67, IP69,
- RS Stock No.:
- 331-0114
- Distrelec Article No.:
- 135-12-254
- Mfr. Part No.:
- ZB4BW363
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£9.32
(exc. VAT)
£11.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,023 unit(s) ready to ship
- Plus 107 unit(s) ready to ship from another location
- Plus 85 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £9.32 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 331-0114
- Distrelec Article No.:
- 135-12-254
- Mfr. Part No.:
- ZB4BW363
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Series | Harmony XB4 | |
| Cutout Diameter | 22mm | |
| Push Button Colour | Blue | |
| Push Button Shape | Round | |
| Push Button Actuation | Spring Return | |
| Push Button Style | Round | |
| Push Button Material | Metal | |
| IP Rating | IP66, IP67, IP69, IP69K | |
| Push Button Marking | Unmarked | |
| Push Button Diameter | 28.5mm | |
| Body/Fixing Collar Included | Yes | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Illuminated | Yes | |
| Terminal Type | Screw Clamp | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -40°C | |
| Mounting Type | Panel Mount | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Series Harmony XB4 | ||
Cutout Diameter 22mm | ||
Push Button Colour Blue | ||
Push Button Shape Round | ||
Push Button Actuation Spring Return | ||
Push Button Style Round | ||
Push Button Material Metal | ||
IP Rating IP66, IP67, IP69, IP69K | ||
Push Button Marking Unmarked | ||
Push Button Diameter 28.5mm | ||
Body/Fixing Collar Included Yes | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Illuminated Yes | ||
Terminal Type Screw Clamp | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
Mounting Type Panel Mount | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Schneider Electric Harmony XB4 Series Push Button Head, 22mm Cutout Diameter, Metal - ZB4BW363
This push button head is designed for illuminated applications within the Harmony XB4 range. With a mounting diameter of 22mm, this round push button features a blue, flush operator profile and is constructed from durable metal, ensuring long-lasting performance. The design includes a plain lens and a spring return mechanism, catering to a variety of industrial needs.
Features & Benefits
• Made from metal for increased durability and a premium finish
• IP66, IP67, IP69, and IP69K ratings for maximum protection against dust and water
• Mechanical durability of up to 10 million cycles for reliable long-term use
• Equipped for universal LED compatibility, enhancing visual signalling
• Easy installation with panel mount design and screw clamp terminals
• Operates effectively in a temperature range of -40 °C to +70 °C
• IP66, IP67, IP69, and IP69K ratings for maximum protection against dust and water
• Mechanical durability of up to 10 million cycles for reliable long-term use
• Equipped for universal LED compatibility, enhancing visual signalling
• Easy installation with panel mount design and screw clamp terminals
• Operates effectively in a temperature range of -40 °C to +70 °C
Applications
• Utilised in control panels for industrial automation
• Suitable for use in harsh environments requiring high durability
• Ideal for equipment that requires visual signals, such as alarms
• Utilised in machinery where dust and water ingress are concerns
• Suitable for use in harsh environments requiring high durability
• Ideal for equipment that requires visual signals, such as alarms
• Utilised in machinery where dust and water ingress are concerns
What environmental conditions can this device operate in?
It can function efficiently in ambient temperatures ranging from -40 °C to +70 °C, making it suitable for various outdoor and industrial applications.
How does the spring return mechanism contribute to its usability?
The spring return feature allows for quick resetting after activation, ensuring that the button easily returns to its original position, improving operational efficiency.
What is the significance of the IP66 and IP67 ratings?
These ratings indicate strong protection against dust ingress and high-pressure water jets, making the device ideal for use in wet or dusty environments without compromising functionality.
How resistant is this to mechanical stress?
The push button head is designed to withstand up to 10 million mechanical cycles, offering reliability for frequent use in demanding applications.
