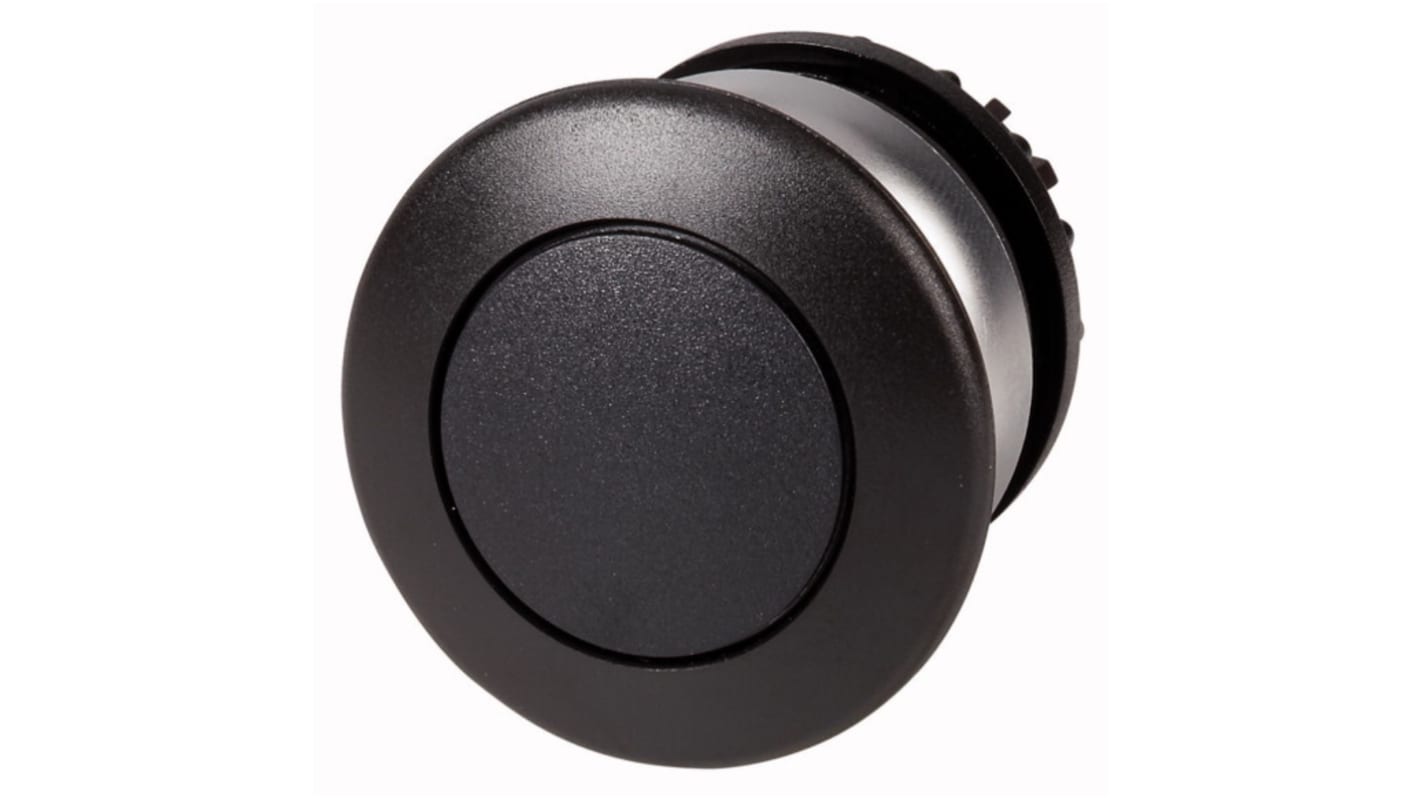

Eaton Black Maintained Push Button Actuator, 22.5 mm Cutout, IP67, IP69K
- RS Stock No.:
- 276-6549
- Mfr. Part No.:
- 216743 M22-DRP-S
- Brand:
- Eaton
Subtotal (5 units, in packs of 5)*
£87.39
(exc. VAT)
£104.87
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 10 unit(s) ready to ship from another location
- Plus 20 unit(s) shipping from 07 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £17.478 | £87.39 |
*price indicative
- RS Stock No.:
- 276-6549
- Mfr. Part No.:
- 216743 M22-DRP-S
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Push Button Actuator | |
| Series | Eaton Moeller | |
| Cutout Diameter | 22.5mm | |
| Push Button Colour | Black | |
| Push Button Shape | Round | |
| Push Button Actuation | Maintained | |
| Push Button Style | Flat | |
| Push Button Material | Plastic | |
| IP Rating | IP67, IP69K | |
| Push Button Marking | Blank | |
| Push Button Diameter | 22mm | |
| Standards/Approvals | LR, RoHS, UL, UL 508, UL Category Control No.:NKCR, IEC/EN 60947, IEC/EN 60947-5, VDE 0660, UL File No.:E29184, CE, CSA, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91, CSA Class No.:3211-03, CSA File No.:012528, DNV, GL | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Push Button Actuator | ||
Series Eaton Moeller | ||
Cutout Diameter 22.5mm | ||
Push Button Colour Black | ||
Push Button Shape Round | ||
Push Button Actuation Maintained | ||
Push Button Style Flat | ||
Push Button Material Plastic | ||
IP Rating IP67, IP69K | ||
Push Button Marking Blank | ||
Push Button Diameter 22mm | ||
Standards/Approvals LR, RoHS, UL, UL 508, UL Category Control No.:NKCR, IEC/EN 60947, IEC/EN 60947-5, VDE 0660, UL File No.:E29184, CE, CSA, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91, CSA Class No.:3211-03, CSA File No.:012528, DNV, GL | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- DE
Eaton Push Button Actuator, 22.5mm Cutout Diameter, Black - 216743 M22-DRP-S
This push-button actuator is a maintained mushroom-headed control element designed for panel mounting in industrial switchgear. It provides a tactile latching operation and is suitable for demanding environments where ingress protection and standardised safety approvals are required. The device is non-illuminated and features a flat, round front profile for straightforward operator interaction.
Features and Benefits:
• IP67 IP69K waterproof actuator delivers protection in washdown environments
• Maintained push-button switch provides stable latched operation for control circuits
• Actuating force 5N ensures consistent manual activation effort
• Operating range -25°C to 70°C supports wide ambient conditions
• Mechanical lifespan 1,000,000 operations indicates long-term duty capability
• Maintained push-button switch provides stable latched operation for control circuits
• Actuating force 5N ensures consistent manual activation effort
• Operating range -25°C to 70°C supports wide ambient conditions
• Mechanical lifespan 1,000,000 operations indicates long-term duty capability
Applications
• Suitable for panel-mount push button 22.5 mm in control panels
• Ideal for industrial control push-button switch use on machinery
• Used for emergency or latching control functions in production lines
• Compatible with systems requiring IEC/EN 60947 push-button compliance
• Appropriate for installations needing a 22 mm black round flat push button
• Ideal for industrial control push-button switch use on machinery
• Used for emergency or latching control functions in production lines
• Compatible with systems requiring IEC/EN 60947 push-button compliance
• Appropriate for installations needing a 22 mm black round flat push button
What panel cut‑out size is required for installation?
The device fits a panel cut‑out diameter of 22.5 mm.
What materials and colours are used for the front components?
The cap and bezel are plastic with a black cap and titanium‑coloured bezel.
How is compatibility with smart wiring achieved?
It can connect to SmartWire‑DT systems using SWD‑RMQ connections.
What mechanical shock resistance does it provide?
It meets sinusoidal shock requirements to IEC/EN 60068‑2‑27 at 30 g, 11 ms.
What climatic tests has it passed for humidity exposure?
It is rated for damp heat cyclic and constant tests to IEC 60068‑2‑30 and IEC 60068‑2‑78.
