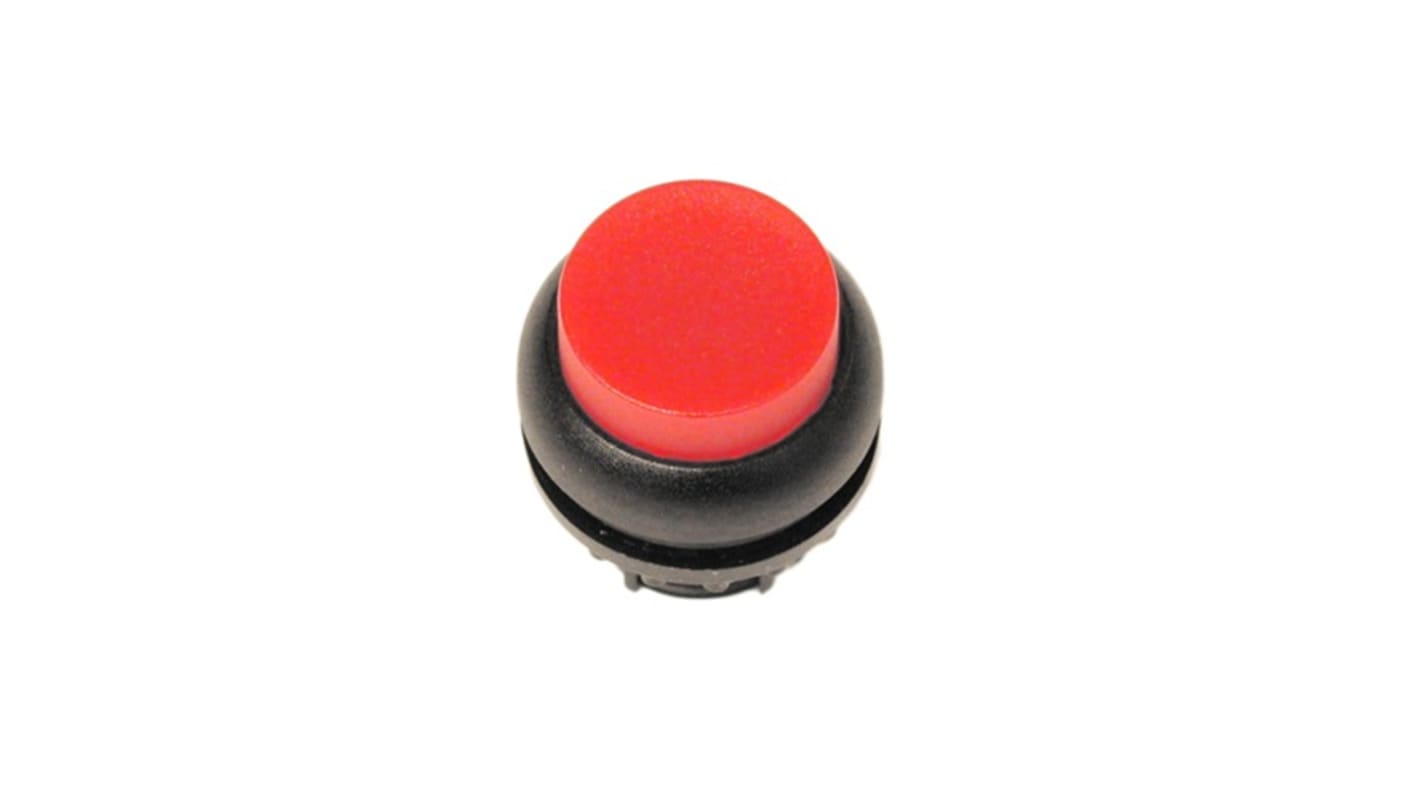

Eaton M22 Series Red Momentary Spring Return Push Button Switch, 22.5 mm Cutout, IP66, IP67, IP69K
- RS Stock No.:
- 272-2272
- Mfr. Part No.:
- 216968 M22S-DLH-R
- Brand:
- Eaton
Subtotal (1 unit)*
£12.47
(exc. VAT)
£14.96
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 18 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £12.47 |
*price indicative
- RS Stock No.:
- 272-2272
- Mfr. Part No.:
- 216968 M22S-DLH-R
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Push Button Switch | |
| Series | M22 | |
| Cutout Diameter | 22.5mm | |
| Push Button Colour | Red | |
| Push Button Shape | Round | |
| Push Button Actuation | Momentary Spring Return | |
| Push Button Material | Plastic | |
| IP Rating | IP66, IP67, IP69K | |
| Push Button Marking | Blank | |
| Push Button Diameter | 29.7mm | |
| Standards/Approvals | CE, CSA, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91, CSA Class No.:3211-03, DNV, GL, IEC/EN 60947, IEC/EN 60947-5, LR, UL, UL 508, UL CSA File No.:012528, UL File No.:E29184, VDE 0660 | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Push Button Switch | ||
Series M22 | ||
Cutout Diameter 22.5mm | ||
Push Button Colour Red | ||
Push Button Shape Round | ||
Push Button Actuation Momentary Spring Return | ||
Push Button Material Plastic | ||
IP Rating IP66, IP67, IP69K | ||
Push Button Marking Blank | ||
Push Button Diameter 29.7mm | ||
Standards/Approvals CE, CSA, CSA-C22.2 No. 14-05, CSA-C22.2 No. 94-91, CSA Class No.:3211-03, DNV, GL, IEC/EN 60947, IEC/EN 60947-5, LR, UL, UL 508, UL CSA File No.:012528, UL File No.:E29184, VDE 0660 | ||
Hazardous Area Certification No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The Eaton Moeller series M30 illuminated pushbutton actuator that has extended classical design and fitted with front ring. It has black bezel colour and plastic bezel material.
Round construction type lens
Actuating force of 5 N
