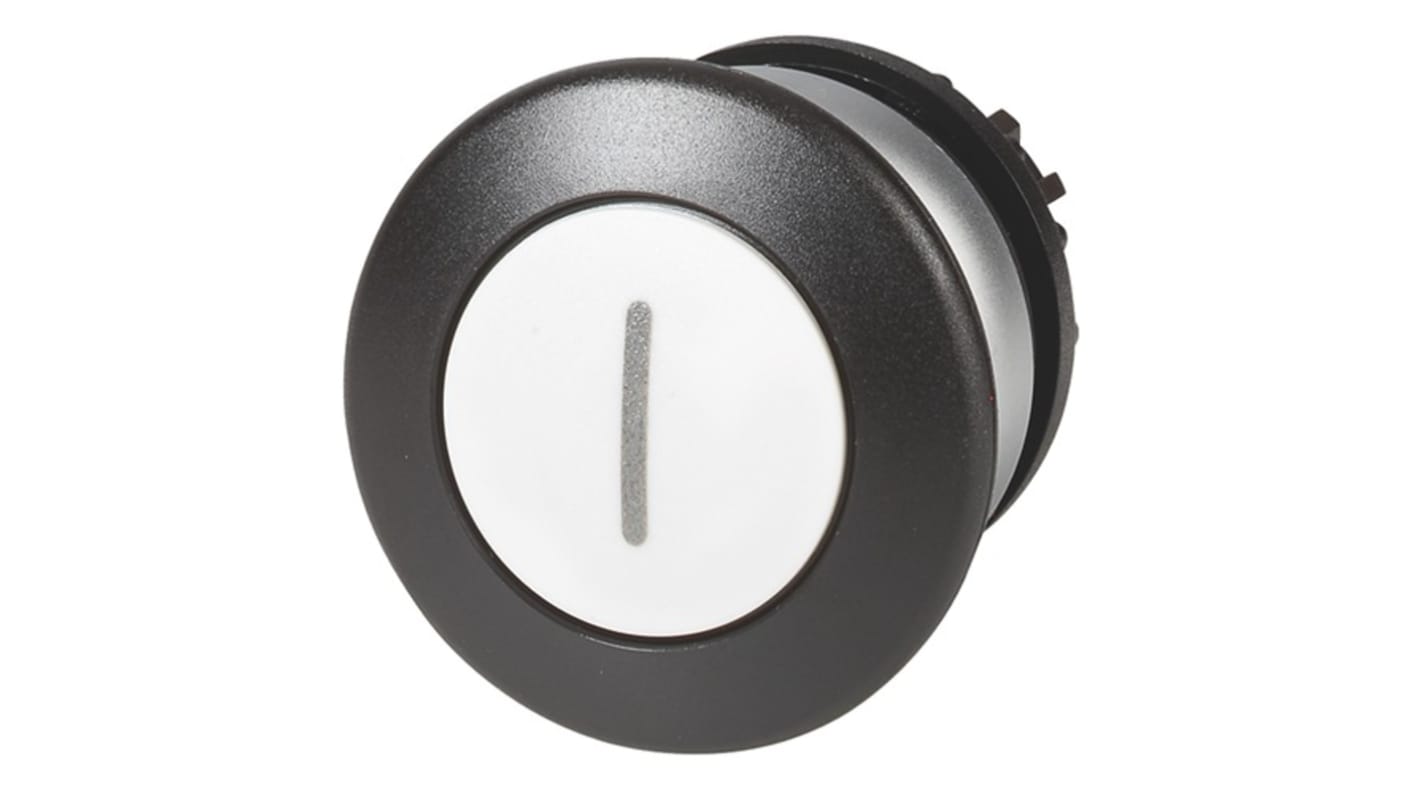

Eaton RMQ-Titan Series White Switching Function Latching Push Button Switch, 22.5 mm Cutout, IP67, IP69K
- RS Stock No.:
- 272-2207
- Mfr. Part No.:
- 216757 M22-DRP-W-X1
- Brand:
- Eaton
Subtotal (1 unit)*
£18.71
(exc. VAT)
£22.45
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £18.71 |
*price indicative
- RS Stock No.:
- 272-2207
- Mfr. Part No.:
- 216757 M22-DRP-W-X1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Push Button Switch | |
| Series | RMQ-Titan | |
| Cutout Diameter | 22.5mm | |
| Push Button Colour | White | |
| Push Button Shape | Mushroom Shaped | |
| Push Button Actuation | Switching Function Latching | |
| Push Button Style | Mushroom | |
| Push Button Material | Plastic | |
| IP Rating | IP67, IP69K | |
| Push Button Marking | Inscribed | |
| Push Button Diameter | 36.5mm | |
| Standards/Approvals | UL 508 CE UL NKCR CSA 012528 UL E29184 VDE 0660 CSA UL IEC/EN 60947 CSA-C22.2 No. 14-05 IEC/EN 60947-5 CSA-C22.2 No. 94-91 CSA Class No.:3211-03 GL DNV LR | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Push Button Switch | ||
Series RMQ-Titan | ||
Cutout Diameter 22.5mm | ||
Push Button Colour White | ||
Push Button Shape Mushroom Shaped | ||
Push Button Actuation Switching Function Latching | ||
Push Button Style Mushroom | ||
Push Button Material Plastic | ||
IP Rating IP67, IP69K | ||
Push Button Marking Inscribed | ||
Push Button Diameter 36.5mm | ||
Standards/Approvals UL 508 CE UL NKCR CSA 012528 UL E29184 VDE 0660 CSA UL IEC/EN 60947 CSA-C22.2 No. 14-05 IEC/EN 60947-5 CSA-C22.2 No. 94-91 CSA Class No.:3211-03 GL DNV LR | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- DE
The Eaton Moeller series M22 mushroom actuator that has mushroom shaped classical design and fitted with front ring. It has operating frequency of 1800 operations per hour and plastic bezel material.
Actuating force 5N
Round construction type lens
