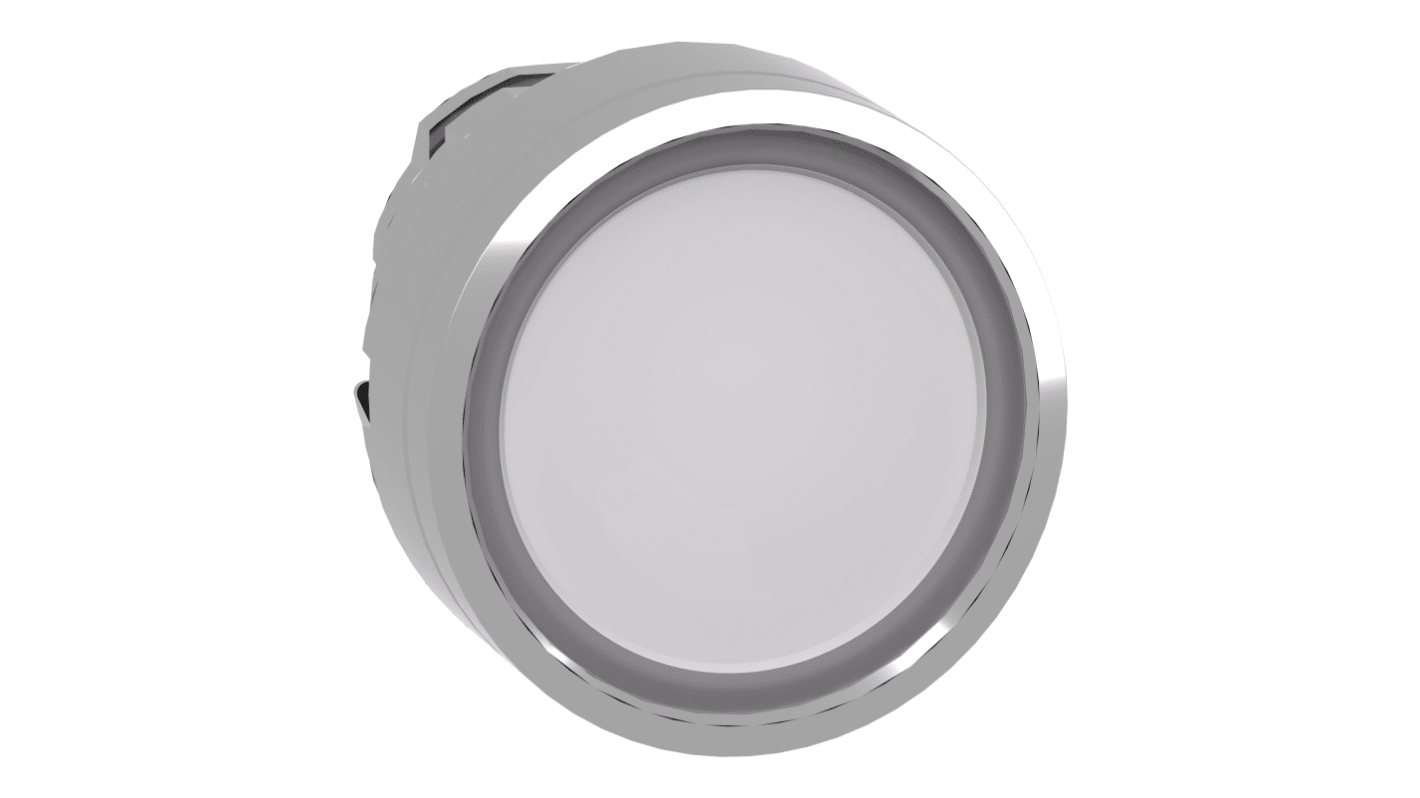

Schneider Electric Harmony XB4 Series White Illuminated Spring Return Push Button Head, 22mm Cutout, IP66, IP67, IP69K

RS Stock No.:: 187-431
Mfr. Part No.:: ZB4BA18
Brand:: Schneider Electric

Schneider Electric Harmony XB4 Series White Illuminated Spring Return Push Button Head, 22mm Cutout, IP66, IP67, IP69K

Price Each**

£8.62

(exc. VAT)

£10.34

(inc. VAT)

25 In stock - FREE next working day delivery available*

53 available from Europe for delivery within 2 working day(s).

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 +	£8.62

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 187-431
Mfr. Part No.:: ZB4BA18
Brand:: Schneider Electric

Schneider Electric Push Button Heads - Harmony XB4 Series

Introducing Schneider Electrics XB4 range of metal pushbuttons, created and designed to offer flexibility and robustness whilst combining the simplicity of installations and high performance. The Harmony XB4 range of push-buttons delivers an innovative and ergonomic design which promotes easy operation as well as giving a more aesthetically pleasing finish for control panels and machines.

Features & Benefits

Meets the most robustness and performance requirements for the majority of industrial applications

Delivers simplicity and efficiency while keeping expenses to a minimum

Option to convert from standard to flush mounting

Delivers extremely robust performance, even when is the harshest of environments

Forms part of the Harmony XB4 series

All heads within this range require a fixing collar, integral LED and contact assembly

Please note: If you are using LED blocks, the colour of the head should be matched with the LED

Unmarked, but with a marking option

Spring return actuation

Applications

Control panels in commercial buildings

Factory automation lines

For use in emergency situations where you need to cut off electrical supply via the press of a button

Schneider Electric Harmony XB4 Series Push Button Head, 22mm Cutout Diameter, IP66/IP67/IP69K - ZB4BA18

This push button head offers an effective solution for automation and control systems. Designed for illuminated applications, it allows operators to efficiently monitor and activate machinery. With a diameter of 22mm and a modern white finish, this component merges functionality with a sleek aesthetic, making it suitable for various industrial environments.

Features & Benefits

• Enhanced visibility with LED illumination for clear operation
• Durable metal construction for long-lasting performance
• Weatherproof design to protect against moisture and dust ingress
• Spring return operation facilitates quick reset after activation
• High IP66, IP67, and IP69K ratings confirm reliability in harsh conditions
• Compatible with universal LED systems for versatile use

Applications

• Used in control panels for industrial machinery
• Suitable for automation and process control systems
• Effective in environments demanding quick and reliable activation
• Designed for seamless integration in electrical and mechanical setups
• Utilised for signalling in challenging outdoor conditions

What is the installation procedure for this component?

Follow the manufacturer’s guidelines for secure mounting, ensuring correct cut-out diameter and terminal connections.

Can it withstand extreme temperature conditions?

Yes, it operates effectively within a temperature range of -40°C to +70°C.

Is it compatible with other signalling systems?

It is designed to work with universal LED blocks, enhancing operational flexibility.

How can I ensure its proper maintenance?

Regularly check for any wear and tear, and clean the surface to maintain visibility and functionality.

What specifications should I consider for my application?

Consider environmental conditions, compatibility with existing systems, and the necessary IP ratings for your specific needs.

Attribute	Value
Series	Harmony XB4
Cutout Diameter	22mm
Push Button Colour	White
Push Button Shape	Round
Push Button Actuation	Spring Return
Push Button Style	Round
Push Button Material	Metal
IP Rating	IP66, IP67, IP69K
Push Button Marking	Unmarked
Push Button Diameter	28.5mm
Better World Product	Yes
Better World Verification	Green Premium
Illuminated	Yes
Terminal Type	Screw Clamp
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-40°C
Mounting Type	Panel Mount
