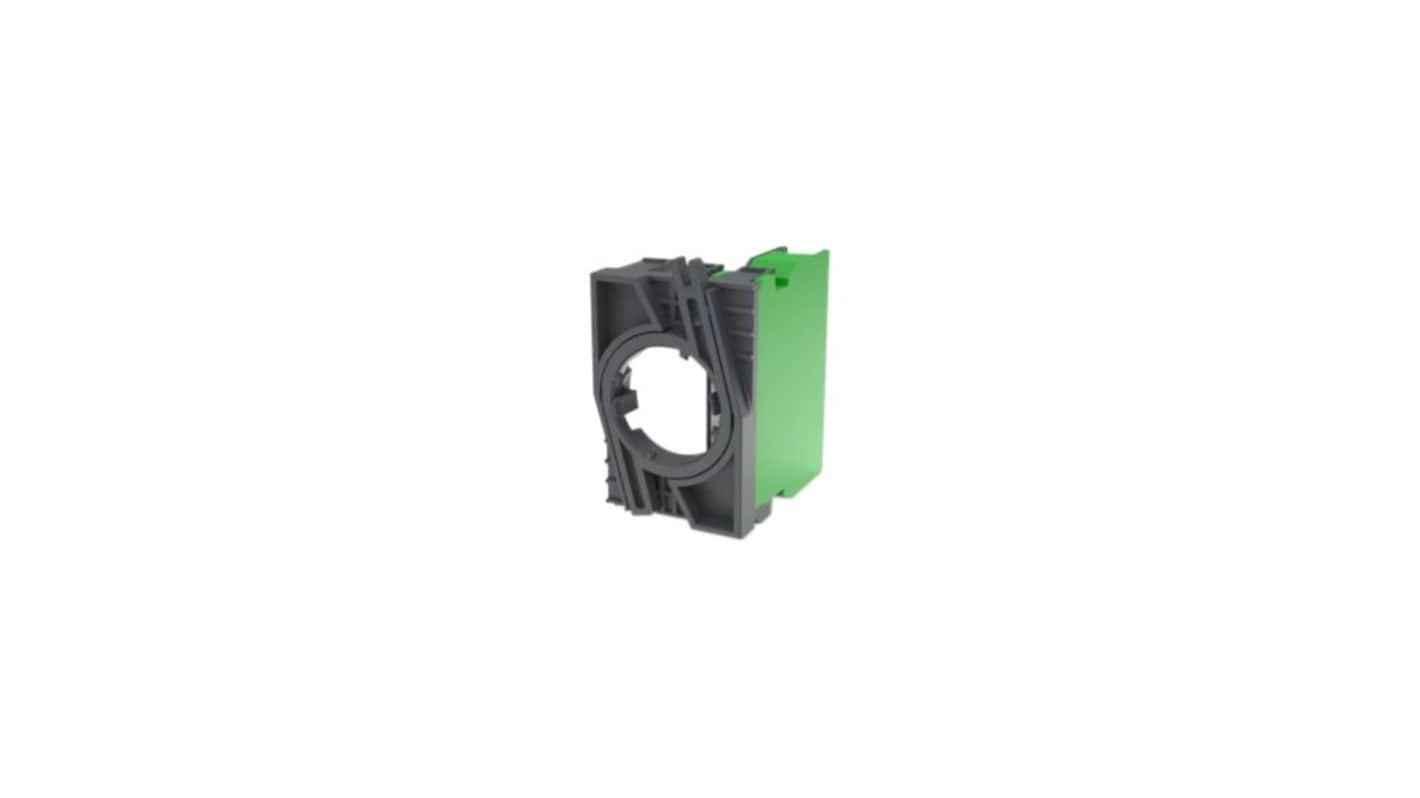

RAFI RAFIX 22 Series Switch Block, 400V, 1 NO
- RS Stock No.:
- 524-344
- Distrelec Article No.:
- 304-65-562
- Mfr. Part No.:
- 1.20.124.002/0000
- Brand:
- RAFI
Subtotal (1 pack of 10 units)*
£98.44
(exc. VAT)
£118.13
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 4 unit(s) shipping from 19 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £98.44 | £9.844 |
*price indicative
- RS Stock No.:
- 524-344
- Distrelec Article No.:
- 304-65-562
- Mfr. Part No.:
- 1.20.124.002/0000
- Brand:
- RAFI
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RAFI | |
| Product Type | Push Button Switching Element | |
| Block Type | Switch Block | |
| Voltage | 400V | |
| Series | RAFIX 22 | |
| Contact Configuration | 1 NO | |
| Current Rating | 0.25A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 22mm | |
| Standards/Approvals | RoHS, REACH, IEC 60068-2-6, IEC 60068-2-27, CE | |
| Height | 41mm | |
| Length | 25mm | |
| Select all | ||
|---|---|---|
Brand RAFI | ||
Product Type Push Button Switching Element | ||
Block Type Switch Block | ||
Voltage 400V | ||
Series RAFIX 22 | ||
Contact Configuration 1 NO | ||
Current Rating 0.25A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Width 22mm | ||
Standards/Approvals RoHS, REACH, IEC 60068-2-6, IEC 60068-2-27, CE | ||
Height 41mm | ||
Length 25mm | ||
- COO (Country of Origin):
- HU
The RAFI switching element screw terminal control units are modular units consisting of several parts. In the RAFIX 22 QR family, they always consist of an actuating element, coupling, and switching element, or of a light attachment, coupling, and lamp socket. For assembly, the switching elements and lamp holders are first snapped into the coupling. Then this unit is snapped onto the actuating element or the signal lamp. To release, a bayonet lever must be actuated.
Switching elements with screw connection
Mounting by snapping on onto coupling and actuator
Connections are open, wiring can start immediately
Screws are captively fixed in the terminal point
Time and material savings due to elimination of ferrules for stranded wires
