Eaton's M22 range of push button heads are designed to simplify the process of buying individual components. Available with either momentary, latching or maintained switching in 2 to 4 position options, these switch actuators make it easy to select the right switch type for your electrical and industrial control needs. Ideally suited for industrial applications the front elements have an enhanced IP66 protection rating making them dust tight and protected against water projection.

The RMQ-Titan M22 series from Eaton offers a wide range of attractive, ergonomically designed illuminated and non-illuminated push buttons including LED elements, selector switches, key switches, push-pulls, alternate action and turn-to-release operators.

This comprehensive range of pilot devices is engineered to ensure that your machines, systems, and processes keep running smoothly and offers a wide variety of applications and processes in automation and control environments. Designed for optimal functionality with a high degree of protection this range offers a wide range of solutions for your business.

• 22.5 mm cutout diameter
• Mechanical lifespan of over 100,000 operations
• Operating temperature of -25 to +70°C
• Low profile plastic design gives this control switch an attractive modern look and feel
• The high degrees of protection in the front (up to IP69K) and at the back (IP65) of these devices make the perfect choice for applications in which oil-tight protection from dirt or liquids is required.
• The push button head is supplied as a single unit, enabling easy installation for worldwide applications
• Modular M22 series features adaptable functionalities
• IP67/IP69 rated
• For DIN rail mounting adapter see RS Stock No. 399-3961
• For fixing tool see RS Stock No. 446-5467

UL, CSA.

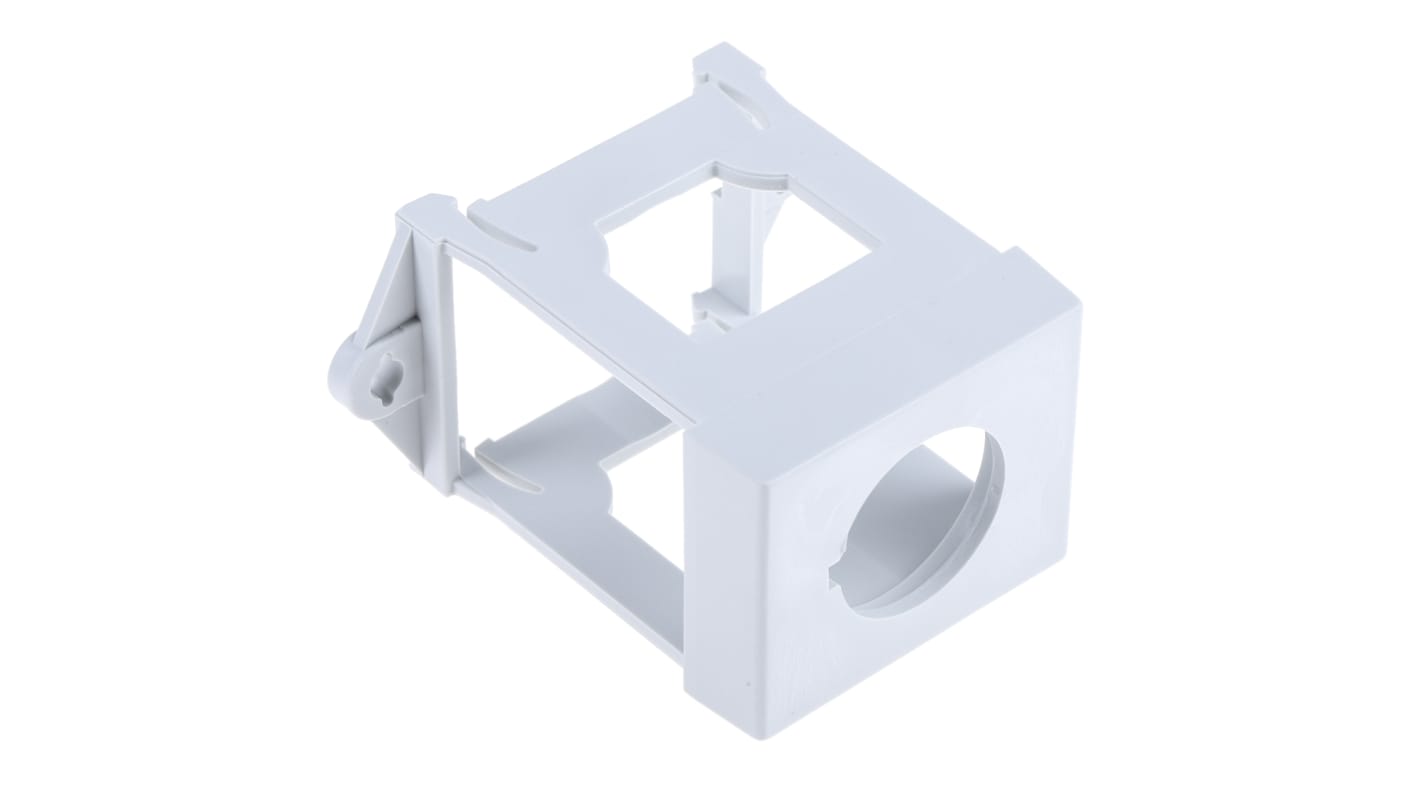

Use this DIN rail adapter from Eaton to mount a pushbutton or indicator light. It's compatible with components from Eaton's RMQ-Titan M22 range of ergonomically designed devices that are built to withstand exposure to moisture and harsh operating conditions. The unit's modular construction makes assembly fast and simplifies stocking of components and complete devices. When mounted with a pushbutton this component is IP66 (ingress protection) rated, which indicates it's dust-tight and protected against high-pressure water jets. This hard-wearing adapter is suitable to use in applications where regular washdowns take place.

• Wide operating temperature range of -25°C to +70°C makes this suitable for a broad range of environmental conditions
• Insulated against normal and abnormal heat in the event of an electrical fire, for improved durability and safety

A pushbutton is a mechanical switch that controls an action in a machine or process. You can find pushbuttons in automated industrial settings, where they're used to switch machinery on and off or open and close safety devices, such as control gates.

Eaton formerly known as Moeller
