RS PRO 5 m 4 mm diameter Green Round Polyurethane Belt for use with 38 mm minimum pulley diameter
- RS Stock No.:
- 309-8117
- Distrelec Article No.:
- 304-17-416
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£15.81
(exc. VAT)
£18.97
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 82 unit(s) ready to ship
- Plus 19 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £15.81 |
| 5 - 9 | £15.49 |
| 10 - 24 | £15.16 |
| 25 + | £14.84 |
*price indicative
- RS Stock No.:
- 309-8117
- Distrelec Article No.:
- 304-17-416
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Round Polyurethane Belt | |
| Sub Type | Solid | |
| Colour | Green | |
| Minimum Pulley Diameter | 38mm | |
| Length | 5m | |
| Food Safe | No | |
| Working Load | 3.4kg | |
| Hardness | Type A 88 | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | FDA | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Round Polyurethane Belt | ||
Sub Type Solid | ||
Colour Green | ||
Minimum Pulley Diameter 38mm | ||
Length 5m | ||
Food Safe No | ||
Working Load 3.4kg | ||
Hardness Type A 88 | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals FDA | ||
RoHS Status: Exempt

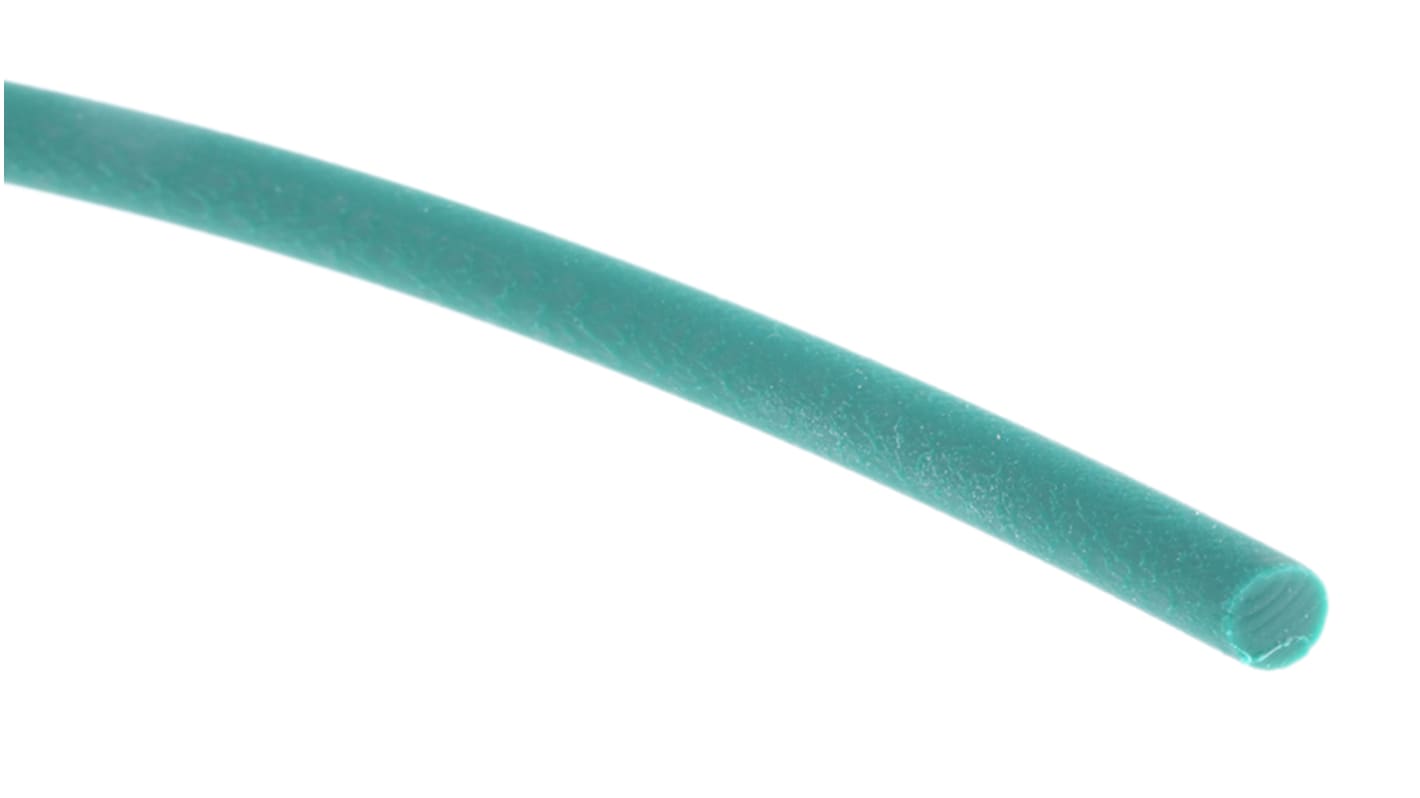

RS PRO Green Round Polyurethane Belt
Use a pulley and this RS PRO green belt to drive shafts and alter their speed. It's simple to use as you can attach it to an additional belt to increase the length, and it requires no special safety measures or complex joining techniques during use.
The polyurethane (PU) material of this round belt is durable and flexible, so the rubber won't snap even when it's under pressure. It won't be corroded by industrial cleaning products or grease from machines as it's resistant to oils and chemicals.
This belt is ideal for use with heavy loads as it won't break when used in high-capacity pulley applications. You'll find belt and pulley systems in a variety of machines, such as air compressors, agricultural equipment and conveyors.
Features and Benefits
