RS PRO 30m 4mm diameter Green Round Polyurethane Belt for use with 38mm minimum pulley diameter
- RS Stock No.:
- 259-6424
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£61.15
(exc. VAT)
£73.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £61.15 |
5 - 9 | £59.93 |
10 - 24 | £58.71 |
25 + | £57.48 |
*price indicative
- RS Stock No.:
- 259-6424
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Diameter | 4mm | |
Colour | Green | |
Minimum Pulley Diameter | 38mm | |
Length | 30m | |
Food Certified | No | |
Working Load | 3.4kg | |
Hardness | 88Type A | |
Minimum Operating Temperature | -30°C | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Diameter 4mm | ||
Colour Green | ||
Minimum Pulley Diameter 38mm | ||
Length 30m | ||
Food Certified No | ||
Working Load 3.4kg | ||
Hardness 88Type A | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +80°C | ||
RoHS Status: Exempt

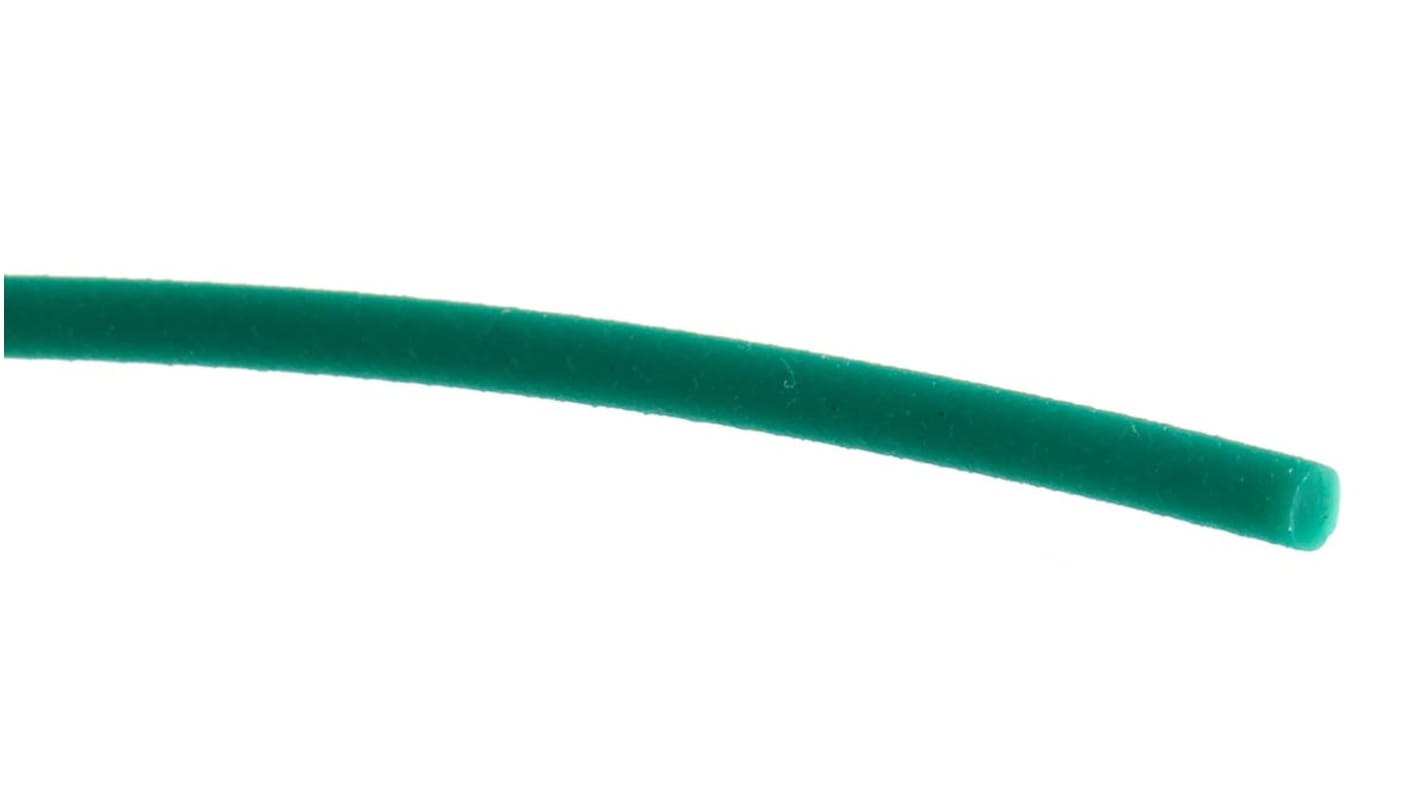

RS PRO Green Round Polyurethane Belt
If you need to transfer power in your manufacturing systems or devices, the RS PRO round polyurethane belt is a great option. You can use it in a wide range of equipment, such as packaging machinery or line-shaft roller conveyors.
The 5-metre belt has a diameter of 4 mm and a working load capacity of 3.4 kg based on an 8% tension. Polyurethane's elastic and high tensile strength characteristics make it particularly useful for running it through angled pulleys. It's also much easier to join and manipulate compared to rubber, easy to clean and has a hardness of 88 Type A.
It has a safe operating temperature of -30°C to +80°C and resistance to chemicals, oils and abrasion. It's useable in all types of industrial situations, such as distribution facilities, factories and warehouses.
The 5-metre belt has a diameter of 4 mm and a working load capacity of 3.4 kg based on an 8% tension. Polyurethane's elastic and high tensile strength characteristics make it particularly useful for running it through angled pulleys. It's also much easier to join and manipulate compared to rubber, easy to clean and has a hardness of 88 Type A.
It has a safe operating temperature of -30°C to +80°C and resistance to chemicals, oils and abrasion. It's useable in all types of industrial situations, such as distribution facilities, factories and warehouses.
Features and Benefits
• Round green polyurethane belt
• Hardness of 88 Type A
• Length of 30 m
• Diameter of 4 mm
• Minimum pulley diameter of 38 mm
• Minimum operating temperature of -30°C
• Maximum operating temperature of +80°C
• Not food certified
• Hardness of 88 Type A
• Length of 30 m
• Diameter of 4 mm
• Minimum pulley diameter of 38 mm
• Minimum operating temperature of -30°C
• Maximum operating temperature of +80°C
• Not food certified
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
