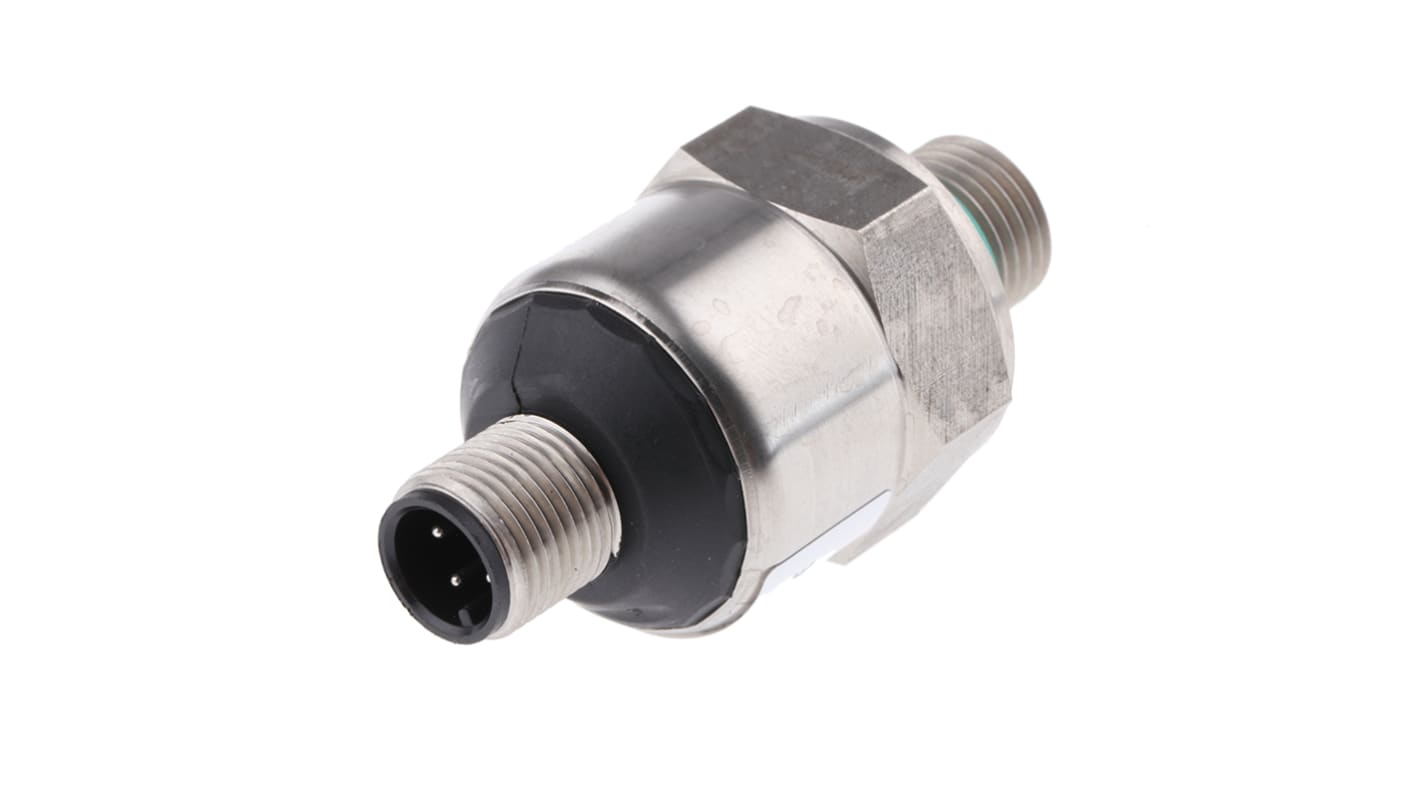

RS PRO Pressure Switch, 0bar Min, 60bar Max, Analogue Output, Gauge Reading

View all Pressure Sensors

Subtotal (1 unit)*

£154.53

(exc. VAT)

£185.44

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 16 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£154.53

*price indicative

RS Stock No.:
521-5342
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Pressure Reading Type

Gauge

Minimum Pressure Reading

0bar

Maximum Pressure Reading

60bar

Accuracy

≤0.5 %

Output Type

Analogue

Media Measured

Gas, Liquid

Process Connection

G1/4

Electrical Connection

M12 Connector

Analogue Output

4 → 20 mA

Response Time

≤3 ms

Supply Voltage

10 → 30 V dc

Housing Material

Stainless Steel

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+125°C

Mounting Type

Not Front-Flush

IP Rating

IP67

RoHS Status: Not Applicable

COO (Country of Origin):
DE

RS PRO Gas and Liquid Gauge Pressure Switch, Analogue, 0 Bar to 60 Bar, 10 V DC to 30 V DC, G1/4 Process Connection


Need to measure the output pressure of liquids and gases? Choose this pressure gauge from RS PRO. It's often used on storage tanks for checking whether a pump is working properly, or on filters for gauging the amount of pressure exiting a system.


The switch can withstand use in harsh environments and is resistant to abrasive chemicals thanks to its stainless steel housing. For improved efficiency, it has a fast response time that provides nearly instant pressure readings. Its Ingress Protection (IP) rating of IP67 means it's protected against dust and is highly water-resistant.


This versatile unit is suitable for use across a broad temperature range of -20°C to +125°C. You can use a pressure gauge like this one for monitoring pressure-powered machines for pressure changes or leaks.

Features and Benefits



  • Accuracy of ≤0.5%

  • Analogue output of 4 mA to 20 mA

  • Electrical connector size of M12

  • Stainless steel housing

  • Ingress Protection (IP) rating of IP67

  • Operating temperature range of -20°C to +125°C

  • Pressure reading range of 0 bar to 60 bar

  • Gas and liquid media measured

  • Not front-flush mounting

  • Analogue output type

  • Gauge pressure reading type

  • G1/4 process connection

  • Response time of ≤3 ms

  • Supply voltage of 10 V DC to 30 V DC
