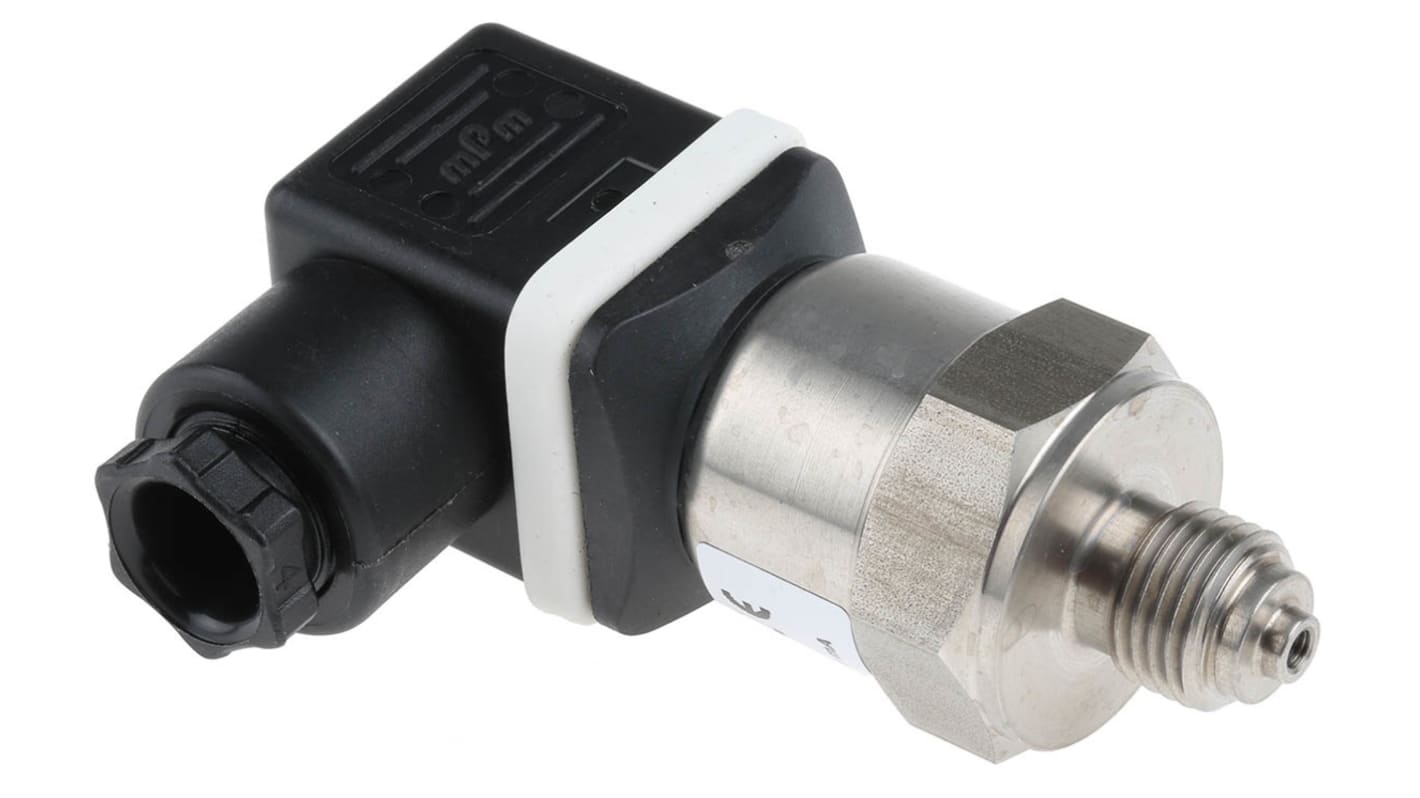

Jumo Pressure Sensor 0 bar, Relative Reading 16 bar
- RS Stock No.:
- 430-9711
- Mfr. Part No.:
- 401001/000-460-405-502-20-601-61/000
- Brand:
- Jumo
Subtotal (1 unit)*
£177.24
(exc. VAT)
£212.69
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 8 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £177.24 |
*price indicative
- RS Stock No.:
- 430-9711
- Mfr. Part No.:
- 401001/000-460-405-502-20-601-61/000
- Brand:
- Jumo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Jumo | |
| Pressure Reading Type | Relative | |
| Product Type | Pressure Sensor | |
| Maximum Pressure Measurement | 16bar | |
| Minimum Pressure Measurement | 0bar | |
| Accuracy | 0.5 % | |
| Response Time | 3ms | |
| Maximum Supply Voltage | 24V | |
| Standards/Approvals | DIN EN 60529 | |
| Housing Material | Stainless Steel | |
| Maximum Operating Temperature | 125°C | |
| IP Rating | IP65, IP67 | |
| Minimum Operating Temperature | -20°C | |
| Select all | ||
|---|---|---|
Brand Jumo | ||
Pressure Reading Type Relative | ||
Product Type Pressure Sensor | ||
Maximum Pressure Measurement 16bar | ||
Minimum Pressure Measurement 0bar | ||
Accuracy 0.5 % | ||
Response Time 3ms | ||
Maximum Supply Voltage 24V | ||
Standards/Approvals DIN EN 60529 | ||
Housing Material Stainless Steel | ||
Maximum Operating Temperature 125°C | ||
IP Rating IP65, IP67 | ||
Minimum Operating Temperature -20°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
401001 series pressure converters
Range of piezo-resistive pressure converters for measuring relative pressures in gaseous and liquid environments.
Output 4 → 20 mA.
AISI 303 stainless steel housing.
The part in contact with the environment to be measured is made from AISI 303 stainless steel.
2 wire output via cable gland and screw terminal or M12 connector (43008 series)
Linear characteristics.
