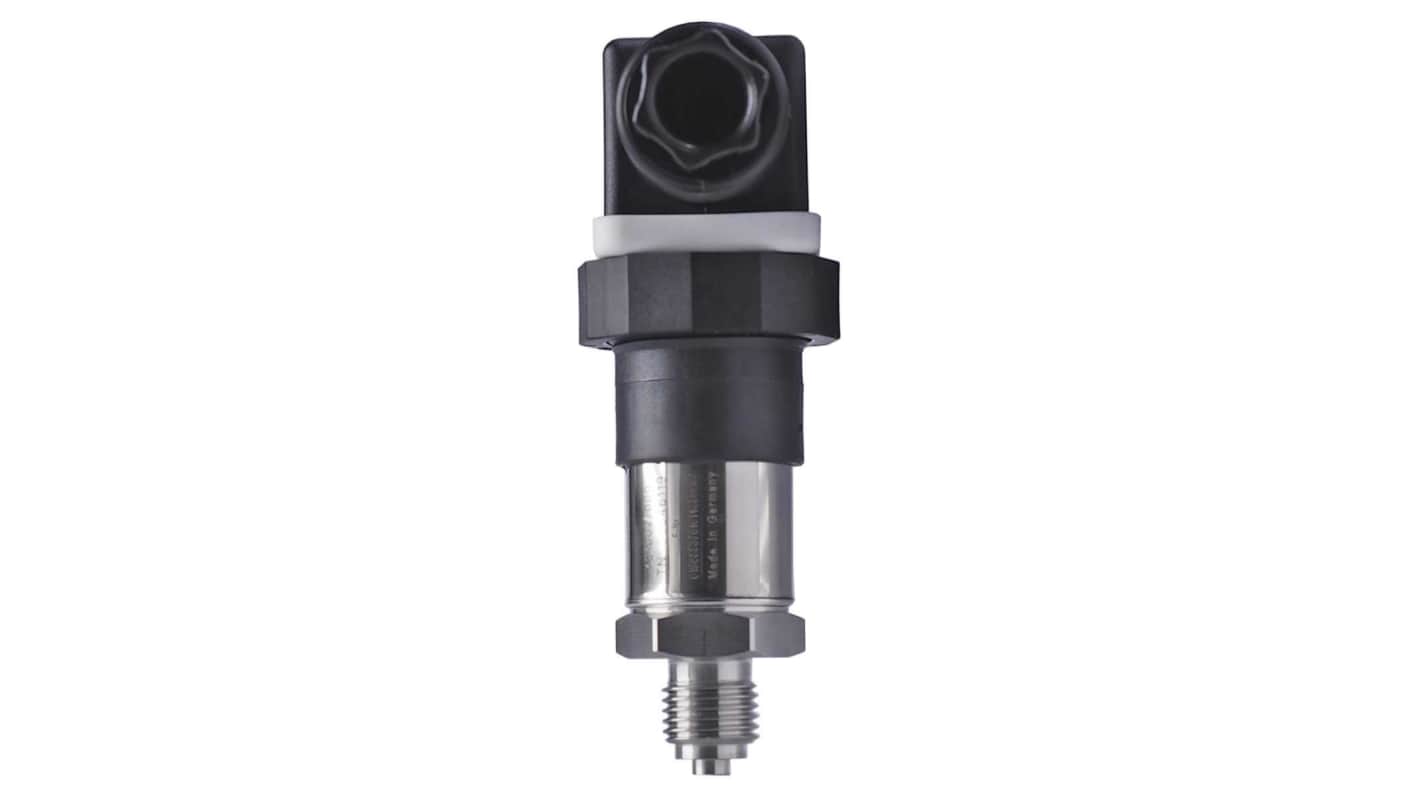

Jumo 401002 Series Pressure Transmitter, Analogue Output 0 bar 16 bar, Differential Reading
- RS Stock No.:
- 279-143
- Mfr. Part No.:
- 401002/000-460-405-502-20-601-61/000
- Brand:
- Jumo
Subtotal (1 unit)*
£183.25
(exc. VAT)
£219.90
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £183.25 |
*price indicative
- RS Stock No.:
- 279-143
- Mfr. Part No.:
- 401002/000-460-405-502-20-601-61/000
- Brand:
- Jumo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Jumo | |
| Pressure Reading Type | Differential | |
| Maximum Pressure Measurement | 16bar | |
| Product Type | Pressure Transmitter | |
| Minimum Pressure Measurement | 0bar | |
| Accuracy | 0.25 % | |
| Output Type | Analogue | |
| Media Measured | Gas, Liquid | |
| Minimum Supply Voltage | 8V | |
| Response Time | 2ms | |
| Maximum Supply Voltage | 30V | |
| Series | 401002 | |
| Standards/Approvals | CAN/CSA-22.2 No. 61010-1, DIN 16086, DIN EN 60770, EAC, EN 60529, EN 61010-1, EN 61298-1, EN 61326-2-3, IEC 60068-2-27, IEC 60068-2-6, TR TS 020/2011, UL, UL 61010-1 | |
| Housing Material | Stainless Steel | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 125°C | |
| IP Rating | IP65 | |
| Select all | ||
|---|---|---|
Brand Jumo | ||
Pressure Reading Type Differential | ||
Maximum Pressure Measurement 16bar | ||
Product Type Pressure Transmitter | ||
Minimum Pressure Measurement 0bar | ||
Accuracy 0.25 % | ||
Output Type Analogue | ||
Media Measured Gas, Liquid | ||
Minimum Supply Voltage 8V | ||
Response Time 2ms | ||
Maximum Supply Voltage 30V | ||
Series 401002 | ||
Standards/Approvals CAN/CSA-22.2 No. 61010-1, DIN 16086, DIN EN 60770, EAC, EN 60529, EN 61010-1, EN 61298-1, EN 61326-2-3, IEC 60068-2-27, IEC 60068-2-6, TR TS 020/2011, UL, UL 61010-1 | ||
Housing Material Stainless Steel | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 125°C | ||
IP Rating IP65 | ||
- COO (Country of Origin):
- DE
The Jumo Pressure Transmitter is used as the core product for the MIDAS range for applications requiring reliable implementation of measuring task with long term stability and outstanding value for the money. The MIDAS range provides solutions for all applications on the basis of this core product. The connection is even guaranteed with any temperature fluctuations that may occur thanks to the spring contacts. This electrical connection means that installation times can be shortened and as a result costs are reduced by 60 % compared to conventional connection options. The universal application is reflected by the wide choice of measuring ranges, process connections and electrical connections. The device has nominal measuring range of 0 to 16 bar relative pressure and an 4 to 20 mA 2 wire output. The process connection is a G1/4 to DIN EN 837 in stainless steel. The electrical connection is via a terminal box according to DIN EN 175301-803, form A, ex DIN 43650.
Long term stability < 0.2 percent
New level of quality for the OEM sector
Innovative and patented sensor design
Seal is made of FPM
QUICKON quick clamp technology enables quicker and safer installation
2.5 times more vibration resistance than the industry standard
Run through the fully automatic measuring and calibration facility
