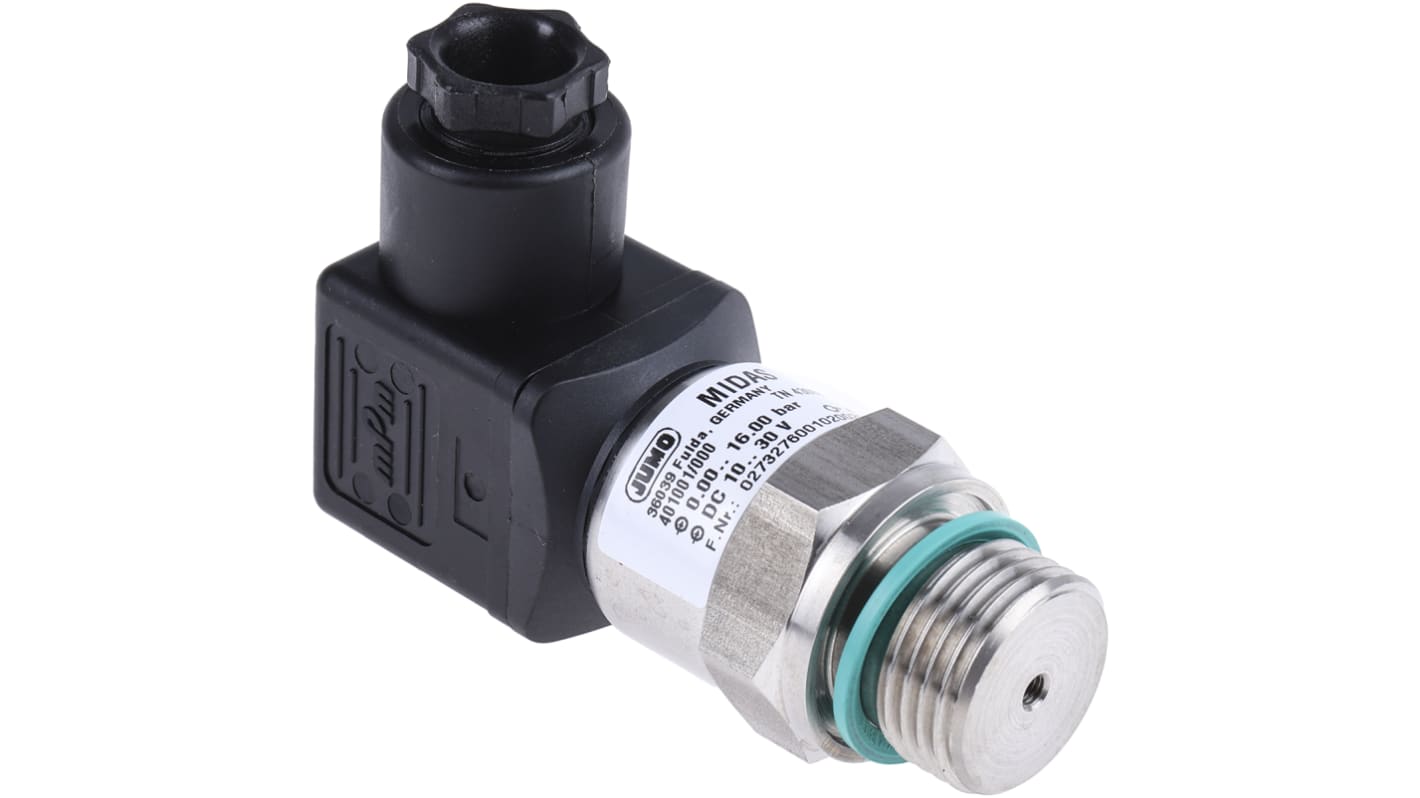

Jumo Pressure Sensor, 0bar Min, 16bar Max
- RS Stock No.:
- 463-5723
- Mfr. Part No.:
- 401001/000-460-405-523-20-601-61/000
- Brand:
- Jumo
Subtotal (1 unit)*
£177.46
(exc. VAT)
£212.95
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 05 December 2025
- Plus 3 unit(s) shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £177.46 |
*price indicative
- RS Stock No.:
- 463-5723
- Mfr. Part No.:
- 401001/000-460-405-523-20-601-61/000
- Brand:
- Jumo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Jumo | |
| Minimum Pressure Reading | 0bar | |
| Maximum Pressure Reading | 16bar | |
| Accuracy | 0.5 % | |
| Media Measured | Hydraulic Fluid, Pneumatic Fluid | |
| Process Connection | G1/2 | |
| Analogue Output | 4 → 20 mA | |
| Electrical Connection | DIN 43650 Type A | |
| Supply Voltage | 15 → 30 V dc | |
| Housing Material | Stainless Steel | |
| IP Rating | IP65 | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | 0°C | |
Select all | ||
|---|---|---|
Brand Jumo | ||
Minimum Pressure Reading 0bar | ||
Maximum Pressure Reading 16bar | ||
Accuracy 0.5 % | ||
Media Measured Hydraulic Fluid, Pneumatic Fluid | ||
Process Connection G1/2 | ||
Analogue Output 4 → 20 mA | ||
Electrical Connection DIN 43650 Type A | ||
Supply Voltage 15 → 30 V dc | ||
Housing Material Stainless Steel | ||
IP Rating IP65 | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature 0°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Absolute and relative pressure transducer
Powerful pressure transmitter
For reading relative and absolute pressures
Specially designed for use in hydraulic and pneumatic systems
Protection against short circuit and reverse polarity
High reproducibility
Very good ceramic elasticity, causing little wear to the material, even when subjected to high levels of pressure
Excellent chemical stability
For reading relative and absolute pressures
Specially designed for use in hydraulic and pneumatic systems
Protection against short circuit and reverse polarity
High reproducibility
Very good ceramic elasticity, causing little wear to the material, even when subjected to high levels of pressure
Excellent chemical stability
Note
Stock 463-5565 - Port Thread is G1/2 to DIN 3852 T11
