WIKA A2G-55 Series Pressure Sensor, 0 to 10 V, 3-Wire Output 0 Pa 2500 Pa, Eco Differential Pressure Transmitter Reading
- RS Stock No.:
- 262-7971
- Mfr. Part No.:
- 63816091
- Brand:
- WIKA
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 262-7971
- Mfr. Part No.:
- 63816091
- Brand:
- WIKA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WIKA | |
| Pressure Reading Type | Eco Differential Pressure Transmitter | |
| Product Type | Pressure Sensor | |
| Maximum Pressure Measurement | 2500Pa | |
| Minimum Pressure Measurement | 0Pa | |
| Accuracy | 2.5 % | |
| Output Type | 0 to 10 V, 3-Wire | |
| Series | A2G-55 | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand WIKA | ||
Pressure Reading Type Eco Differential Pressure Transmitter | ||
Product Type Pressure Sensor | ||
Maximum Pressure Measurement 2500Pa | ||
Minimum Pressure Measurement 0Pa | ||
Accuracy 2.5 % | ||
Output Type 0 to 10 V, 3-Wire | ||
Series A2G-55 | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- DE

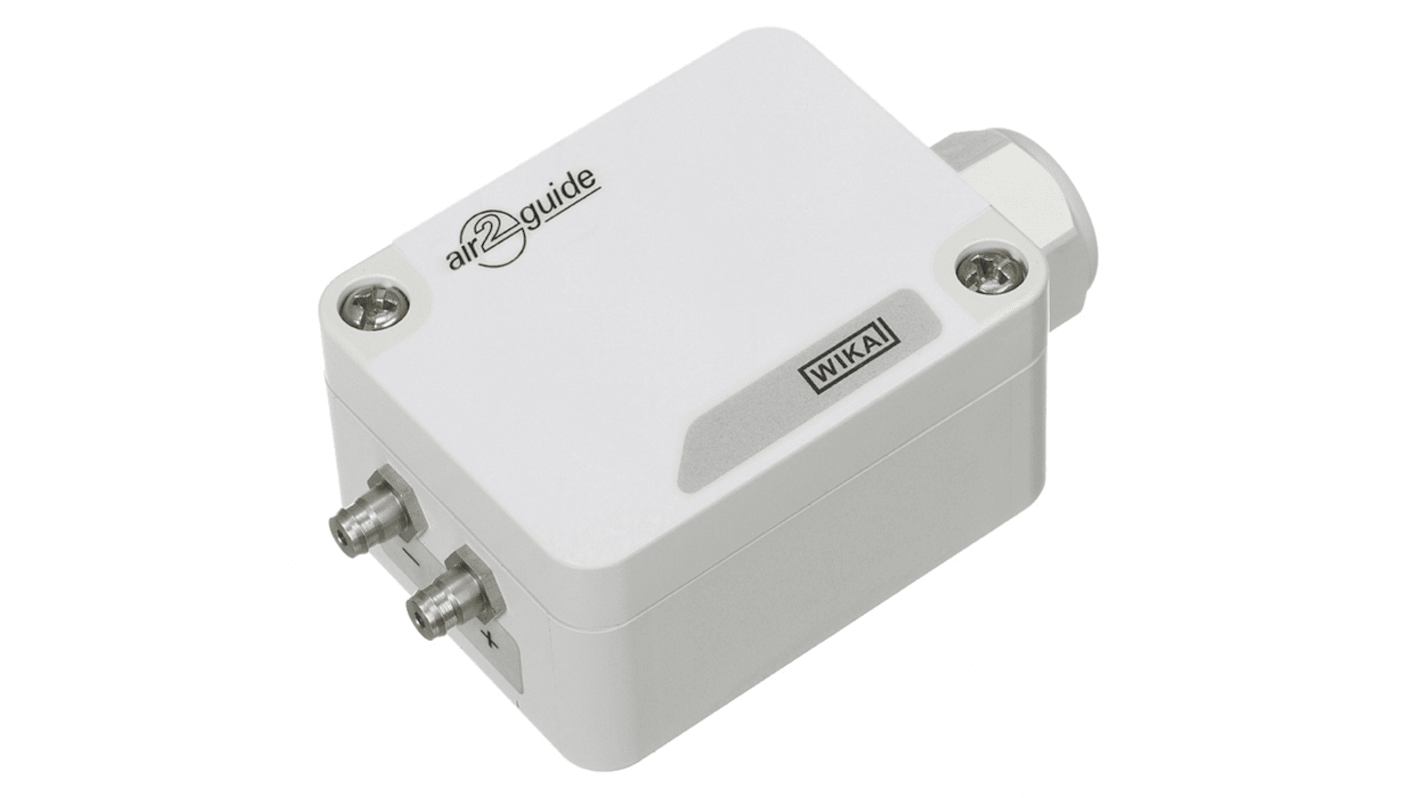

The WIKAs model A2G-55 Eco differential pressure transmitter is used for detecting small Air flows in Air-conditioning systems and for measuring low pressures in environmental, laboratory and clean room applications (Air, non-aggressive gases). It is based on the piezo resistive measuring principle. This Compact differential pressure transmitter offers excellent performance and high quality at an attractive price.
Output signal 0 to 10 V or 4 to 20 mA
Maintenance-free
Simple operation
High accuracy
