WIKA A2G-50 Series Pressure Sensor, 0 to 10 V, 4 to 20 mA, 3-Wire Output -250 Pa 20 kPa, Differential Pressure Reading
- RS Stock No.:
- 262-7537
- Mfr. Part No.:
- 37029720
- Brand:
- WIKA
Subtotal (1 unit)*
£170.41
(exc. VAT)
£204.49
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) shipping from 10 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £170.41 |
*price indicative
- RS Stock No.:
- 262-7537
- Mfr. Part No.:
- 37029720
- Brand:
- WIKA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WIKA | |
| Pressure Reading Type | Differential Pressure | |
| Maximum Pressure Measurement | 20kPa | |
| Product Type | Pressure Sensor | |
| Minimum Pressure Measurement | -250Pa | |
| Output Type | 0 to 10 V, 4 to 20 mA, 3-Wire | |
| Media Measured | Gas | |
| Interface Type | RS485 | |
| Terminal Type | Screw | |
| Minimum Supply Voltage | 9V | |
| Series | A2G-50 | |
| Maximum Supply Voltage | 24V ac | |
| Standards/Approvals | RoHS Directive, EMC Directive, EU Declaration | |
| Housing Material | ABS Plastic | |
| Mount Type | Lower | |
| Maximum Operating Temperature | 50°C | |
| Minimum Operating Temperature | -20°C | |
| IP Rating | IP54 | |
| Select all | ||
|---|---|---|
Brand WIKA | ||
Pressure Reading Type Differential Pressure | ||
Maximum Pressure Measurement 20kPa | ||
Product Type Pressure Sensor | ||
Minimum Pressure Measurement -250Pa | ||
Output Type 0 to 10 V, 4 to 20 mA, 3-Wire | ||
Media Measured Gas | ||
Interface Type RS485 | ||
Terminal Type Screw | ||
Minimum Supply Voltage 9V | ||
Series A2G-50 | ||
Maximum Supply Voltage 24V ac | ||
Standards/Approvals RoHS Directive, EMC Directive, EU Declaration | ||
Housing Material ABS Plastic | ||
Mount Type Lower | ||
Maximum Operating Temperature 50°C | ||
Minimum Operating Temperature -20°C | ||
IP Rating IP54 | ||
- COO (Country of Origin):
- CH

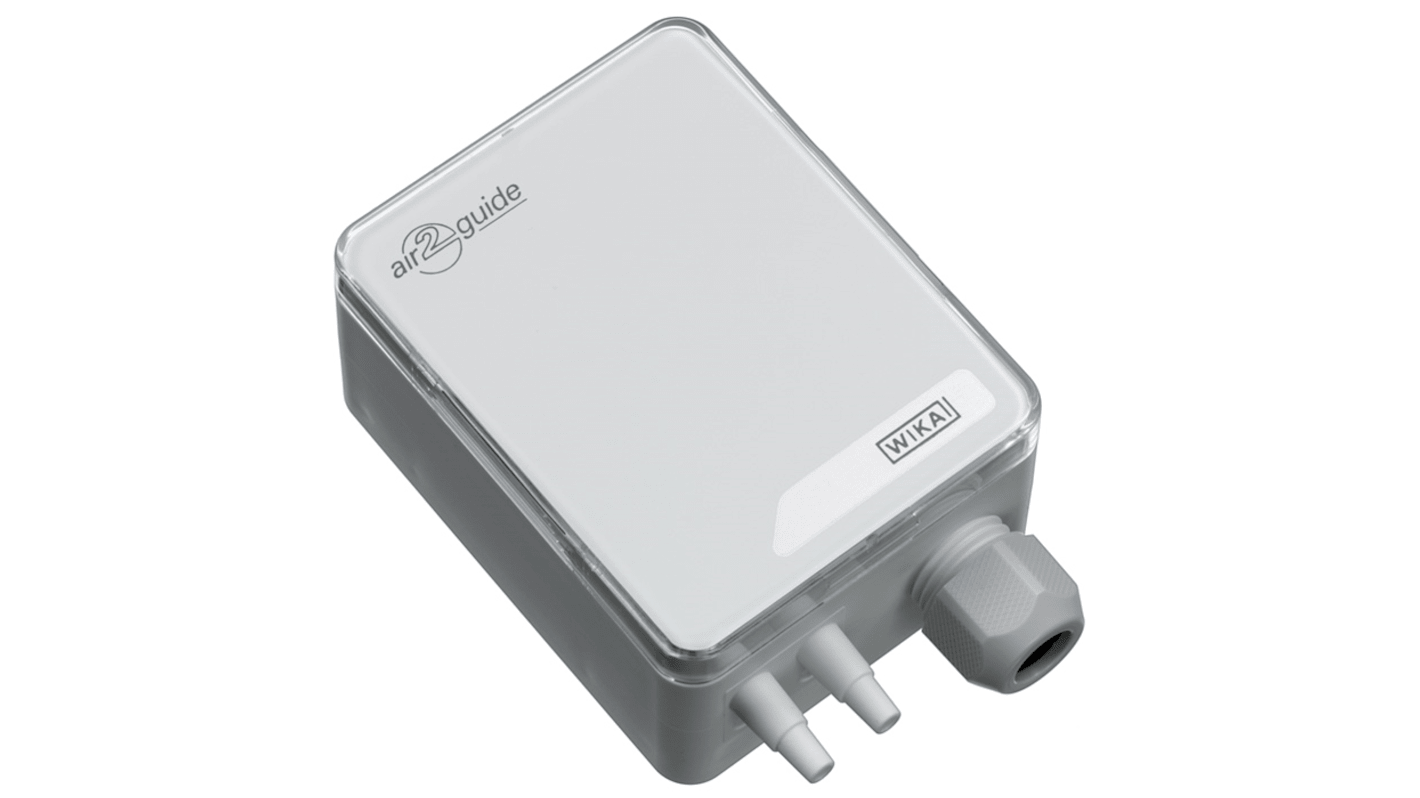

The WIKAs model A2G-50 differential pressure sensor is used for measuring differential pressures of gaseous media in ventilation and air-conditioning applications. It is based on the piezo resistive measurement principle. This Compact differential pressure sensor offers excellent performance and high quality at an attractive price.
Electrical output signal 0 to 10 V or 4 to 20 mA
Modbus output signal
LC display
Maintenance-free
Maximum operating pressure 20 kPa
