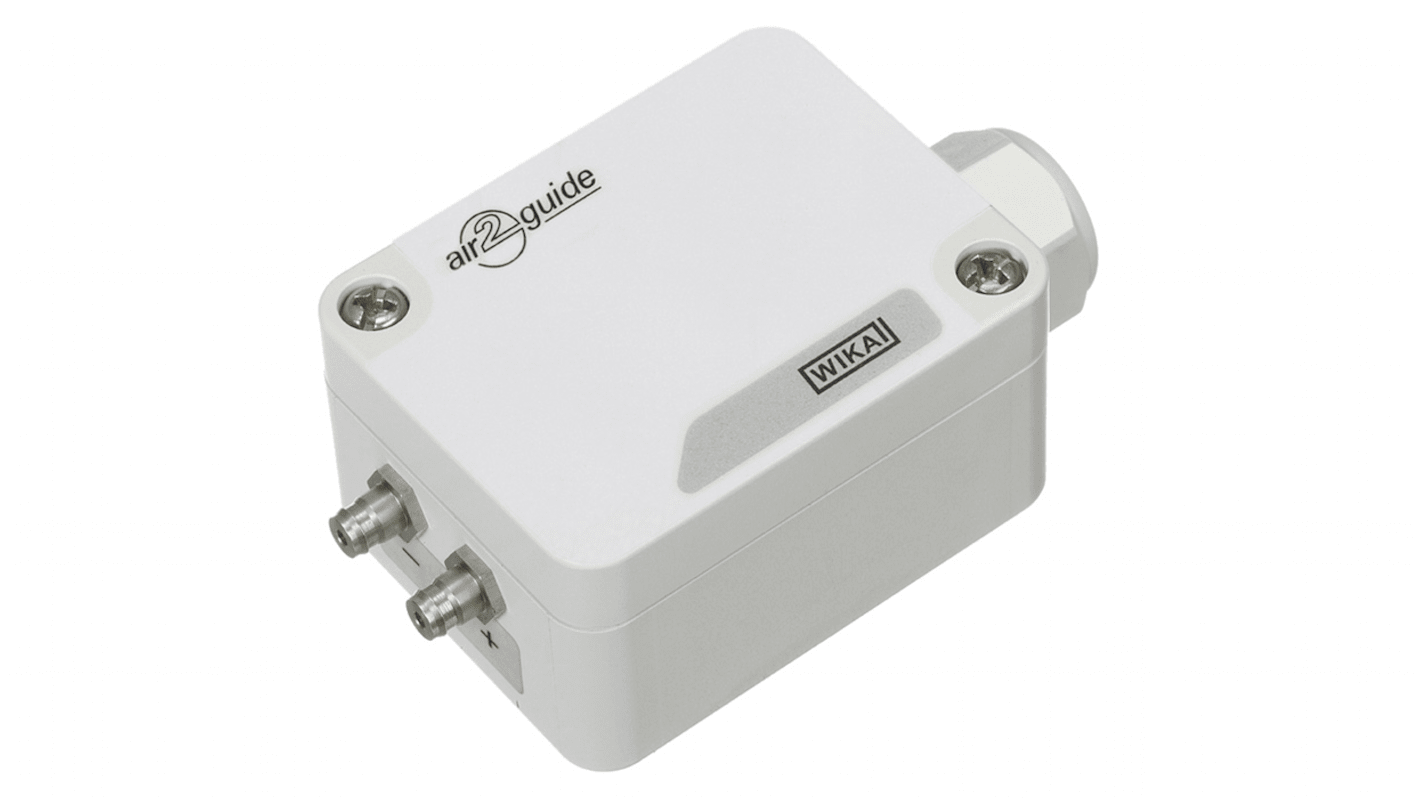

WIKA A2G-55 Series Pressure Sensor, 0 to 10 V Output 0 Pa 5000 Pa, Differential Pressure Reading
- RS Stock No.:
- 262-7432
- Mfr. Part No.:
- 14079622
- Brand:
- WIKA
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 262-7432
- Mfr. Part No.:
- 14079622
- Brand:
- WIKA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WIKA | |
| Product Type | Pressure Sensor | |
| Pressure Reading Type | Differential Pressure | |
| Maximum Pressure Measurement | 5000Pa | |
| Minimum Pressure Measurement | 0Pa | |
| Accuracy | 2.5 %FS | |
| Output Type | 0 to 10 V | |
| Media Measured | Non-Aggressive Gas, Air | |
| Minimum Supply Voltage | 13V | |
| Maximum Supply Voltage | 32V | |
| Series | A2G-55 | |
| Housing Material | ABS Plastic | |
| Standards/Approvals | EC Declaration, RoHS | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -10°C | |
| Mount Type | Wall | |
| Maximum Operating Temperature | 50°C | |
| Select all | ||
|---|---|---|
Brand WIKA | ||
Product Type Pressure Sensor | ||
Pressure Reading Type Differential Pressure | ||
Maximum Pressure Measurement 5000Pa | ||
Minimum Pressure Measurement 0Pa | ||
Accuracy 2.5 %FS | ||
Output Type 0 to 10 V | ||
Media Measured Non-Aggressive Gas, Air | ||
Minimum Supply Voltage 13V | ||
Maximum Supply Voltage 32V | ||
Series A2G-55 | ||
Housing Material ABS Plastic | ||
Standards/Approvals EC Declaration, RoHS | ||
IP Rating IP65 | ||
Minimum Operating Temperature -10°C | ||
Mount Type Wall | ||
Maximum Operating Temperature 50°C | ||
- COO (Country of Origin):
- DE
The WIKAs model A2G-55 Eco differential pressure transmitter is used for detecting small Air flows in Air-conditioning systems and for measuring low pressures in environmental, laboratory and clean room applications (Air, non-aggressive gases). It is based on the piezo resistive measuring principle. This Compact differential pressure transmitter offers excellent performance and high quality at an attractive price.
Output signal 0 to 10 V or 4 to 20 mA
Maintenance-free
Simple operation
High accuracy
