Vega VEGABAR 28 Series Pressure Gauge, Analogue Output 0 bar 1 bar, Gauge Reading
- RS Stock No.:
- 206-7031
- Mfr. Part No.:
- PP - 222 5ZG
- Brand:
- Vega
Subtotal (1 unit)*
£346.00
(exc. VAT)
£415.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £346.00 |
*price indicative
- RS Stock No.:
- 206-7031
- Mfr. Part No.:
- PP - 222 5ZG
- Brand:
- Vega
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vega | |
| Pressure Reading Type | Gauge | |
| Product Type | Pressure Gauge | |
| Maximum Pressure Measurement | 1bar | |
| Minimum Pressure Measurement | 0bar | |
| Accuracy | ±0.3 % | |
| Output Type | Analogue | |
| Media Measured | Liquid, Gas | |
| Interface Type | Bluetooth | |
| Minimum Supply Voltage | 12V | |
| Maximum Supply Voltage | 35V | |
| Series | VEGABAR 28 | |
| Housing Material | Polybutylene Terephthalate, Plastic | |
| Standards/Approvals | ISO, IEC, EN | |
| Maximum Operating Temperature | 130°C | |
| IP Rating | IP67, IP66 | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Vega | ||
Pressure Reading Type Gauge | ||
Product Type Pressure Gauge | ||
Maximum Pressure Measurement 1bar | ||
Minimum Pressure Measurement 0bar | ||
Accuracy ±0.3 % | ||
Output Type Analogue | ||
Media Measured Liquid, Gas | ||
Interface Type Bluetooth | ||
Minimum Supply Voltage 12V | ||
Maximum Supply Voltage 35V | ||
Series VEGABAR 28 | ||
Housing Material Polybutylene Terephthalate, Plastic | ||
Standards/Approvals ISO, IEC, EN | ||
Maximum Operating Temperature 130°C | ||
IP Rating IP67, IP66 | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- DE

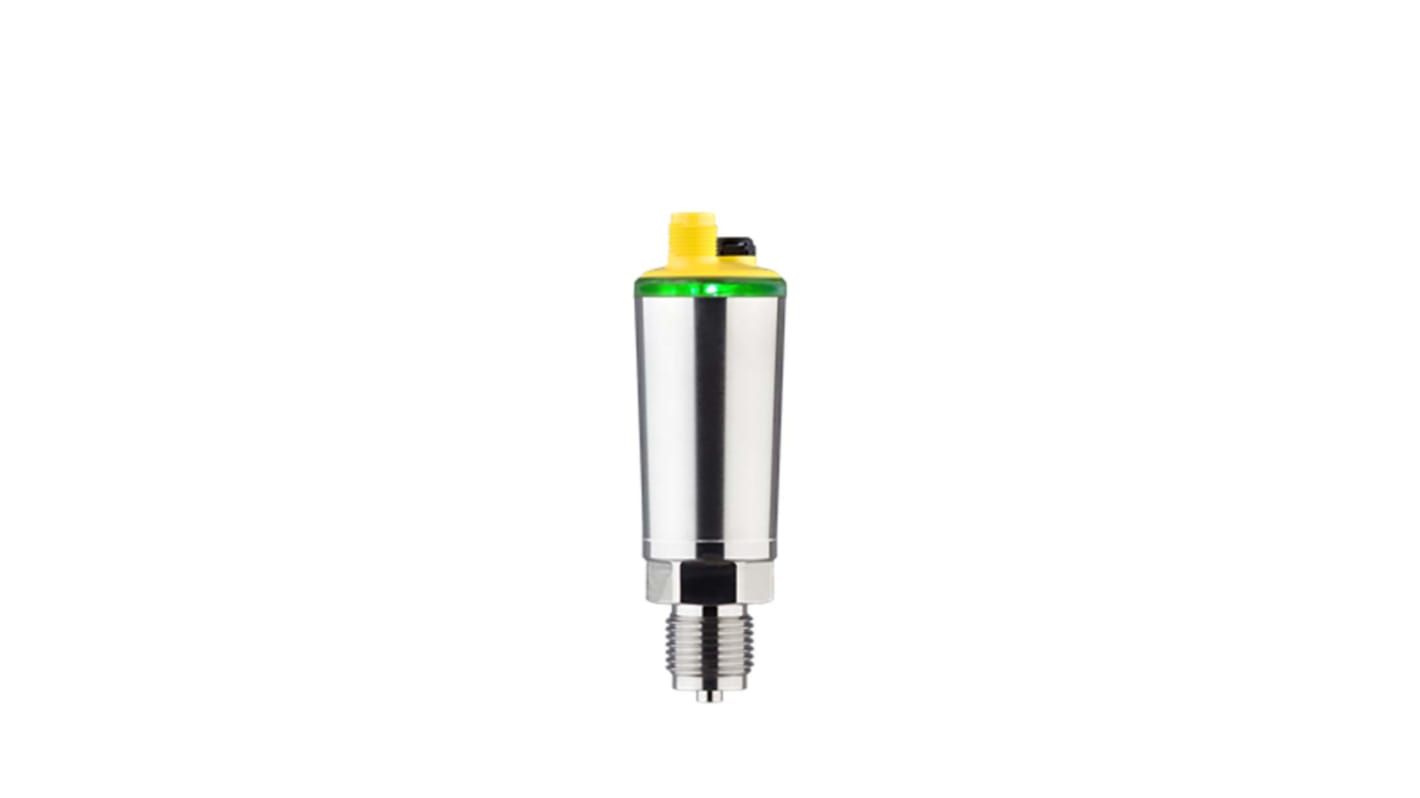

The Vega's VEGABAR 28 is a universally applicable pressure sensor with switching function and ceramic measuring cell. It is used for measuring gas, vapour and liquid. Even with high requirement for robustness and hygiene, the device record the measured value with high accuracy. It has 1 bar Bluetooth ceramic pressure sensor and used hygienic EPDM of seal.
Coloured 360° switching status display
Process temperature -40 to +130 °C
