Vega VEGABAR 28 Series Vegabar, 0bar Min, 10bar Max, Analogue Output, Gauge, Relative Reading
- RS Stock No.:
- 206-7028
- Mfr. Part No.:
- PP - 222 2GV
- Brand:
- Vega
Subtotal (1 unit)*
£290.88
(exc. VAT)
£349.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 6 unit(s) shipping from 08 October 2025
- Plus 2 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £290.88 |
*price indicative
- RS Stock No.:
- 206-7028
- Mfr. Part No.:
- PP - 222 2GV
- Brand:
- Vega
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vega | |
Pressure Reading Type | Gauge, Relative | |
Minimum Pressure Reading | 0bar | |
Maximum Pressure Reading | 10bar | |
Accuracy | 0.3 % | |
Output Type | Analogue | |
Media Measured | Gas, Liquid | |
Process Connection | G1/2 | |
Electrical Connection | M12 | |
Analogue Output | 4 → 20 mA | |
Communication Protocol | IO-LINK | |
Series | VEGABAR 28 | |
Supply Voltage | 12-35V DC | |
Interface | Bluetooth | |
Housing Material | St St/PBT Plastic | |
Maximum Operating Temperature | 130 °C (135 °C 1hr) | |
IP Rating | IP66, IP67 | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Vega | ||
Pressure Reading Type Gauge, Relative | ||
Minimum Pressure Reading 0bar | ||
Maximum Pressure Reading 10bar | ||
Accuracy 0.3 % | ||
Output Type Analogue | ||
Media Measured Gas, Liquid | ||
Process Connection G1/2 | ||
Electrical Connection M12 | ||
Analogue Output 4 → 20 mA | ||
Communication Protocol IO-LINK | ||
Series VEGABAR 28 | ||
Supply Voltage 12-35V DC | ||
Interface Bluetooth | ||
Housing Material St St/PBT Plastic | ||
Maximum Operating Temperature 130 °C (135 °C 1hr) | ||
IP Rating IP66, IP67 | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- DE

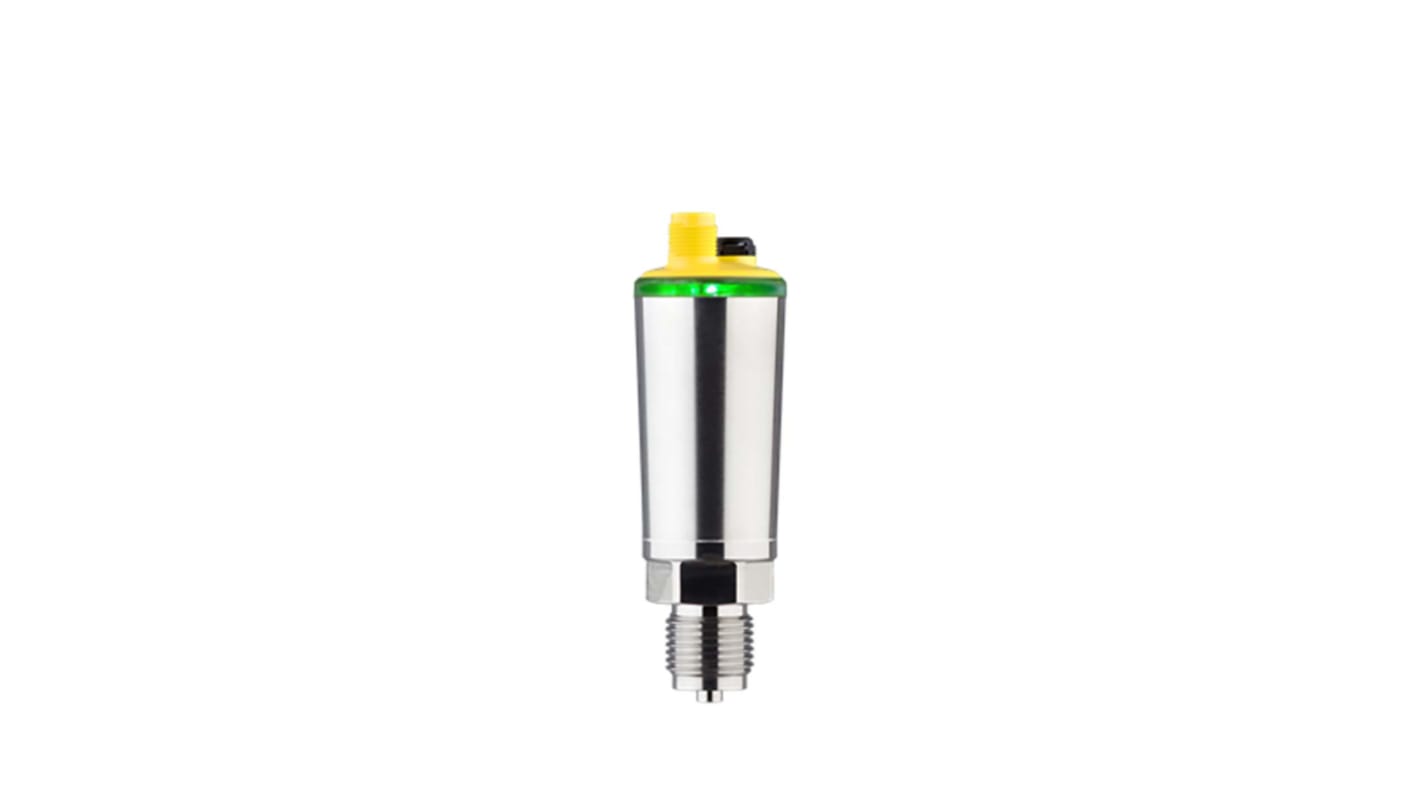

The Vega's VEGABAR 28 is a universally applicable pressure sensor with switching function and ceramic measuring cell. It is used for measuring gas, vapour and liquid. Even with high requirement for robustness and hygiene, the device record the measured value with high accuracy. It has 10 bar Bluetooth ceramic pressure sensor and used 4/20 mA of output signal.
Coloured 360° switching status display
Process temperature -40 to +130 °C
Process temperature -40 to +130 °C
