Vega VEGABAR 28 Series Vegabar, 0bar Min, 1bar Max, Digital Output, Gauge, Relative Reading
- RS Stock No.:
- 206-7024
- Mfr. Part No.:
- PP - 222 2MZ
- Brand:
- Vega
Subtotal (1 unit)*
£329.26
(exc. VAT)
£395.11
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £329.26 |
*price indicative
- RS Stock No.:
- 206-7024
- Mfr. Part No.:
- PP - 222 2MZ
- Brand:
- Vega
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vega | |
Pressure Reading Type | Gauge, Relative | |
Minimum Pressure Reading | 0bar | |
Maximum Pressure Reading | 1bar | |
Accuracy | 0.3 % | |
Output Type | Digital | |
Media Measured | Gas, Liquid | |
Process Connection | G1/2 | |
Analogue Output | IO Link | |
Electrical Connection | M12 | |
Communication Protocol | IO-LINK | |
Series | VEGABAR 28 | |
Supply Voltage | 12-35V DC | |
Interface | Bluetooth | |
Housing Material | St St/PBT Plastic | |
Minimum Operating Temperature | -40°C | |
IP Rating | IP66, IP67 | |
Maximum Operating Temperature | 130 °C (135 °C 1hr) | |
Select all | ||
---|---|---|
Brand Vega | ||
Pressure Reading Type Gauge, Relative | ||
Minimum Pressure Reading 0bar | ||
Maximum Pressure Reading 1bar | ||
Accuracy 0.3 % | ||
Output Type Digital | ||
Media Measured Gas, Liquid | ||
Process Connection G1/2 | ||
Analogue Output IO Link | ||
Electrical Connection M12 | ||
Communication Protocol IO-LINK | ||
Series VEGABAR 28 | ||
Supply Voltage 12-35V DC | ||
Interface Bluetooth | ||
Housing Material St St/PBT Plastic | ||
Minimum Operating Temperature -40°C | ||
IP Rating IP66, IP67 | ||
Maximum Operating Temperature 130 °C (135 °C 1hr) | ||
- COO (Country of Origin):
- DE

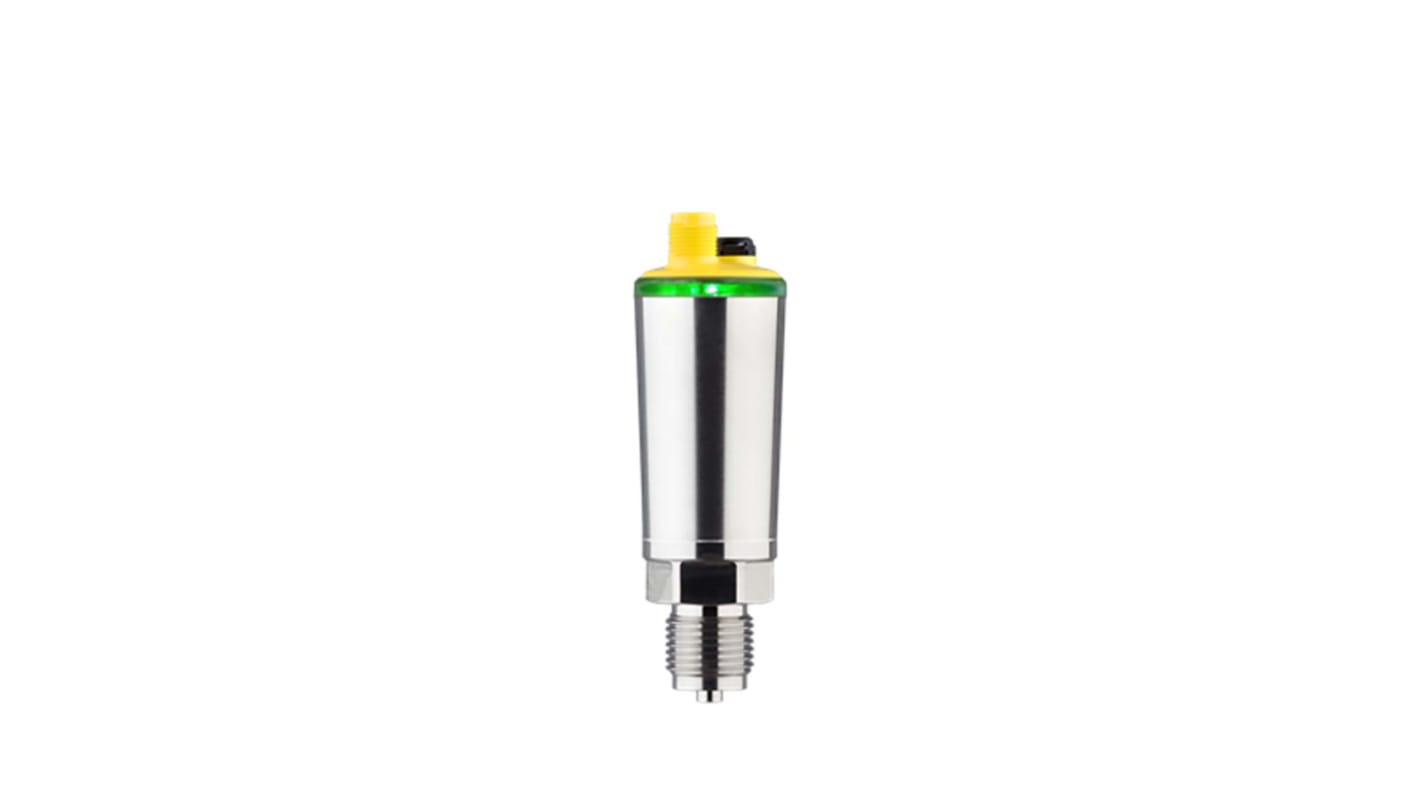

The Vega's VEGABAR 28 is a universally applicable pressure sensor with switching function and ceramic measuring cell. It is used for measuring gas, vapour and liquid. Even with high requirement for robustness and hygiene, the device record the measured value with high accuracy. It has 1 bar Bluetooth ceramic pressure sensor with IO-link M12 connector.
Coloured 360° switching status display
Process temperature -40 to +130 °C
Process temperature -40 to +130 °C
