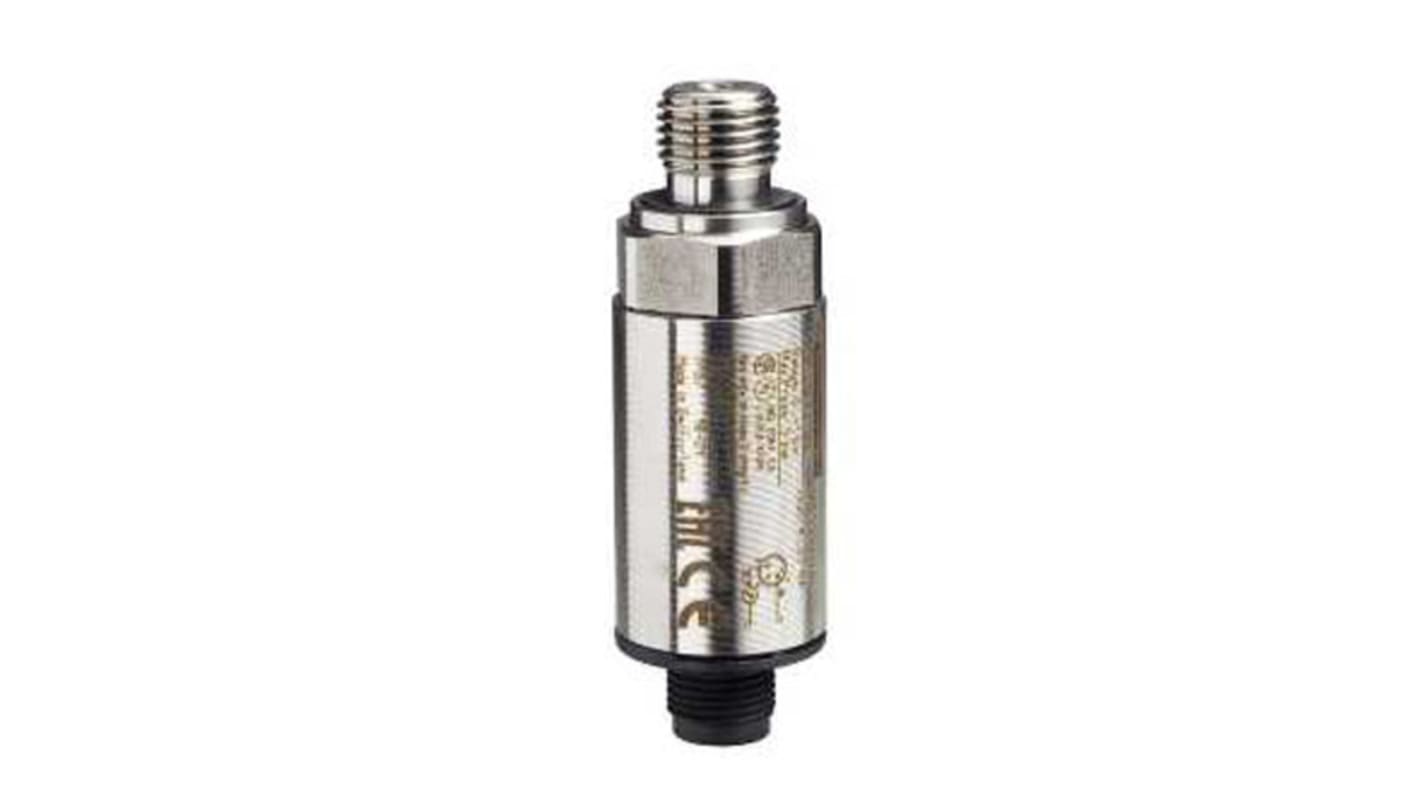

Telemecanique Sensors Pressure Sensor, 0bar Min, 10bar Max, Analogue Output
- RS Stock No.:
- 135-3752
- Mfr. Part No.:
- XMLG010D21
- Brand:
- Telemecanique Sensors
3 In stock - FREE next working day delivery available
4 available from Europe for delivery within 1 working day(s).
Added
Price Each
£211.64
(exc. VAT)
£253.97
(inc. VAT)
| Units | Per unit |
| 1 + | £211.64 |
- RS Stock No.:
- 135-3752
- Mfr. Part No.:
- XMLG010D21
- Brand:
- Telemecanique Sensors
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
OsiSense XMLG Electronic Pressure Sensors
Schneider Electric XMLG pressure transmitters and pressure switches feature a ceramic pressure measuring cell. The deformation caused by the pressure is transmitted to the resistors of a Wheatstone bridge silk-screened on the ceramic. The change in resistance is then processed by the integrated electronics, providing either a digital or analog output signal.
Adjustable differential
1 CO snap acting contact
Temperature range: –15 to +85 °C
Enclosure rating: IP66
1 CO snap acting contact
Temperature range: –15 to +85 °C
Enclosure rating: IP66
Specifications
Attribute | Value |
|---|---|
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 10bar |
| Accuracy | ±0.1 % |
| Output Type | Analogue |
| Media Measured | Air, Corrosive Fluid, Fresh Water, Hydraulic Oil, Sea Water |
| Process Connection | G1/4 |
| Analogue Output | 4 → 20 mA |
| Electrical Connection | M12 3-Pin Connector |
| Response Time | <2 ms |
| Maximum Current | <20 mA |
| Supply Voltage | 12 V dc, 24 V dc |
| Housing Material | Aluminium Oxide Ceramic, Stainless Steel |
| Minimum Operating Temperature | -15°C |
| IP Rating | IP66, IP67 |
| Mounting Type | Thread Mount |
| Maximum Operating Temperature | +85°C |
