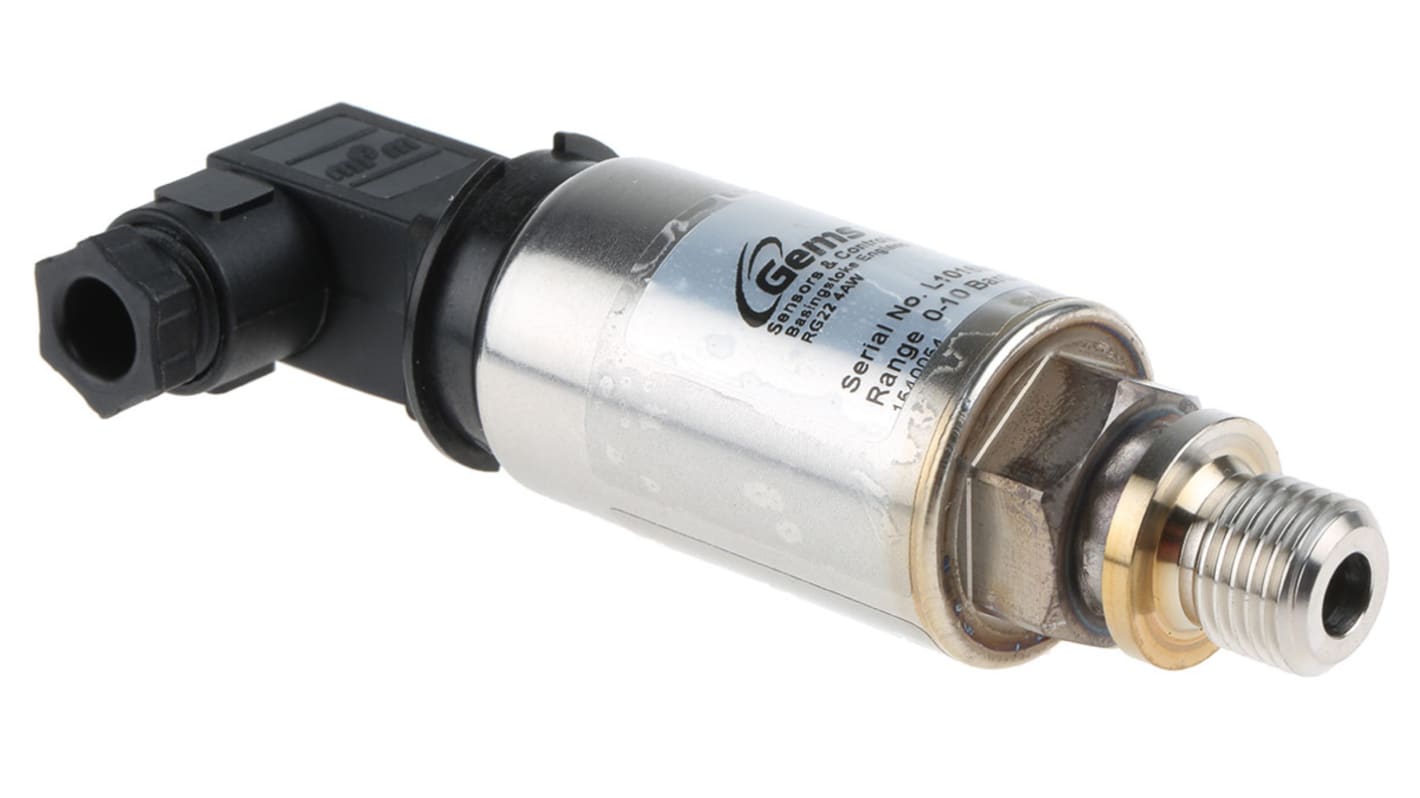

Gems Sensors Pressure Sensor, 0bar Min, 10bar Max, Analogue Output, Relative Reading
- RS Stock No.:
- 455-4551
- Mfr. Part No.:
- 22ISBGB1000ABUA001
- Brand:
- Gems Sensors
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£456.79
(exc. VAT)
£548.15
(inc. VAT)
- RS Stock No.:
- 455-4551
- Mfr. Part No.:
- 22ISBGB1000ABUA001
- Brand:
- Gems Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Gems Sensors | |
| Pressure Reading Type | Relative | |
| Minimum Pressure Reading | 0bar | |
| Maximum Pressure Reading | 10bar | |
| Accuracy | 0.25 % | |
| Output Type | Analogue | |
| Media Measured | Fluid, Gas | |
| Process Connection | G1/4 | |
| Electrical Connection | DIN 43650 Type A | |
| Analogue Output | 4 → 20 mA | |
| Supply Voltage | 7 → 35 V dc | |
| Maximum Operating Temperature | +100°C | |
| IP Rating | IP65 | |
| Hazardous Area Certification | ATEX | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Gems Sensors | ||
Pressure Reading Type Relative | ||
Minimum Pressure Reading 0bar | ||
Maximum Pressure Reading 10bar | ||
Accuracy 0.25 % | ||
Output Type Analogue | ||
Media Measured Fluid, Gas | ||
Process Connection G1/4 | ||
Electrical Connection DIN 43650 Type A | ||
Analogue Output 4 → 20 mA | ||
Supply Voltage 7 → 35 V dc | ||
Maximum Operating Temperature +100°C | ||
IP Rating IP65 | ||
Hazardous Area Certification ATEX | ||
Minimum Operating Temperature -40°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
Low Cost Hazardous Area Transmitter Series 22IS
Designed for use with aggressive media's found in industrial applications such as Petrochemical, Sewage and Gas pipeline
Wetted 17-4 PH stainless steel
IP65
0.25% FS accuracy
-40 to +100°C range
100 million cycle fatigue life
2 c FS proof pressure, 5 x burst
Mating connector supplied
No need for maintenance or recalibration
Wetted 17-4 PH stainless steel
IP65
0.25% FS accuracy
-40 to +100°C range
100 million cycle fatigue life
2 c FS proof pressure, 5 x burst
Mating connector supplied
No need for maintenance or recalibration
Group and Category
II 1 G EEx ia IIB T4
Certificate No.
BAS 01ATEX1125X
