Gems Sensors Pressure Sensor, 0bar Min, 10bar Max, Analogue Output, Gauge Reading
- RS Stock No.:
- 123-5542
- Mfr. Part No.:
- 3100B0010G01B000
- Brand:
- Gems Sensors
Subtotal (1 unit)*
£236.50
(exc. VAT)
£283.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 40 unit(s) ready to ship
- Plus 45 unit(s) shipping from 24 October 2025
- Plus 45 unit(s) shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £236.50 |
*price indicative
- RS Stock No.:
- 123-5542
- Mfr. Part No.:
- 3100B0010G01B000
- Brand:
- Gems Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Gems Sensors | |
Pressure Reading Type | Gauge | |
Minimum Pressure Reading | 0bar | |
Maximum Pressure Reading | 10bar | |
Accuracy | 0.25 % | |
Output Type | Analogue | |
Process Connection | G1/4 | |
Analogue Output | 4 → 20 mA | |
Electrical Connection | DIN 43650 Type C | |
Response Time | 1 ms | |
Supply Voltage | 10 → 30 V dc | |
Maximum Operating Temperature | +125°C | |
IP Rating | IP65 | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Gems Sensors | ||
Pressure Reading Type Gauge | ||
Minimum Pressure Reading 0bar | ||
Maximum Pressure Reading 10bar | ||
Accuracy 0.25 % | ||
Output Type Analogue | ||
Process Connection G1/4 | ||
Analogue Output 4 → 20 mA | ||
Electrical Connection DIN 43650 Type C | ||
Response Time 1 ms | ||
Supply Voltage 10 → 30 V dc | ||
Maximum Operating Temperature +125°C | ||
IP Rating IP65 | ||
Minimum Operating Temperature -40°C | ||
Non Compliant
- COO (Country of Origin):
- GB

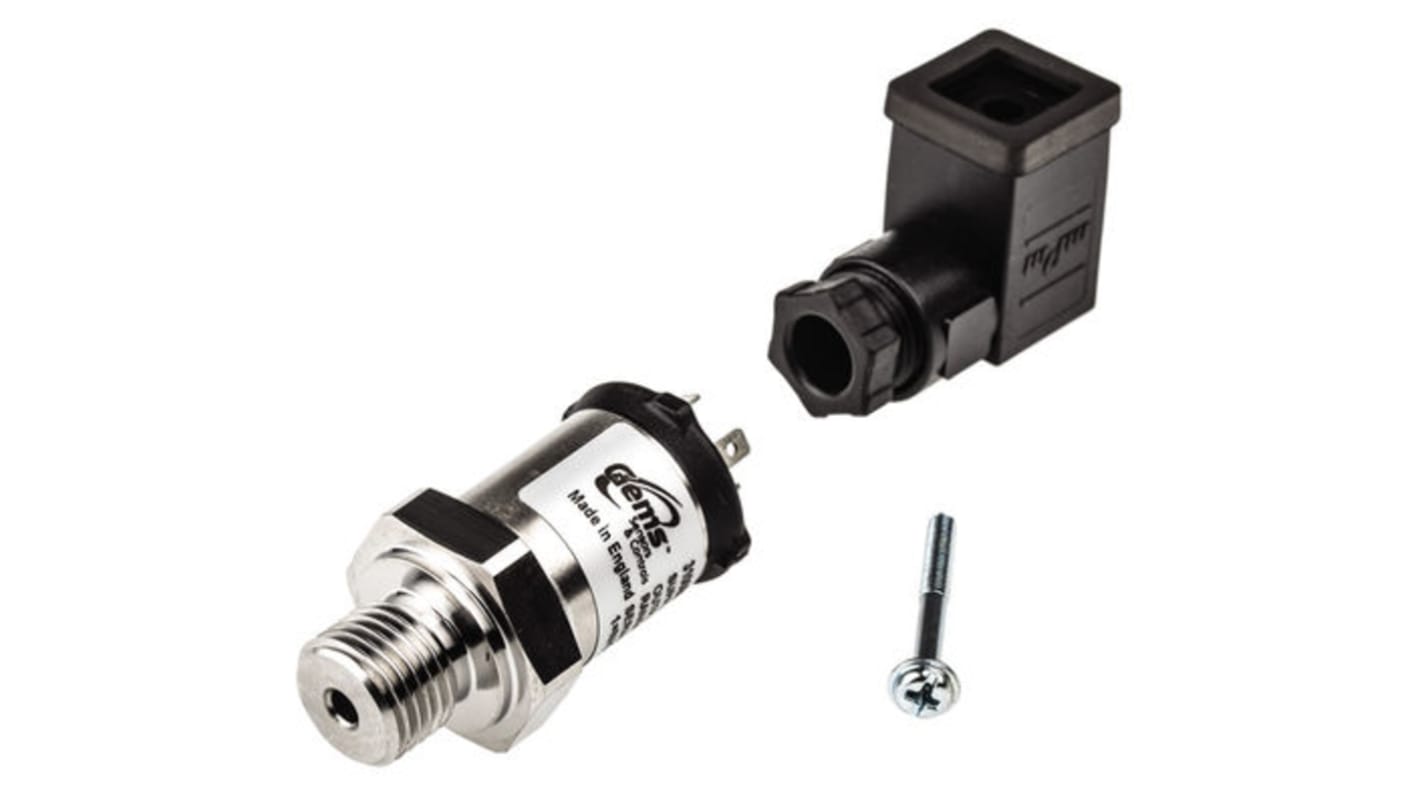

Pressure Transmitter - MiniMap (DIN), Series 3000
The 3000 Series Pressure Sensor is ideal for OEMs that require consistent high levels of performance reliability and stability. Offering you stainless steel wetted parts, a variety of electrical and pressure connections, and wide choice of electrical outputs allowing stock configurations suitable for most applications without modification. The sensors sputter element provides exceptional temperature specifications.
Features & Benefits
Offers reliability and performance to a high standard
Sputtered thin film unit
Stainless steel wetted parts
Various electrical and pressure connections
Compact
RoHS compliant
Recalibration not required
No internal O ring seals
3 x FS proof pressure
IP65
Mini DIN 43650C GDS connection
Sputtered thin film unit
Stainless steel wetted parts
Various electrical and pressure connections
Compact
RoHS compliant
Recalibration not required
No internal O ring seals
3 x FS proof pressure
IP65
Mini DIN 43650C GDS connection
Product Application Information
The 3000 Series pressure sensors are ideal for installation where there is limited space.
Supplied with
plug.
