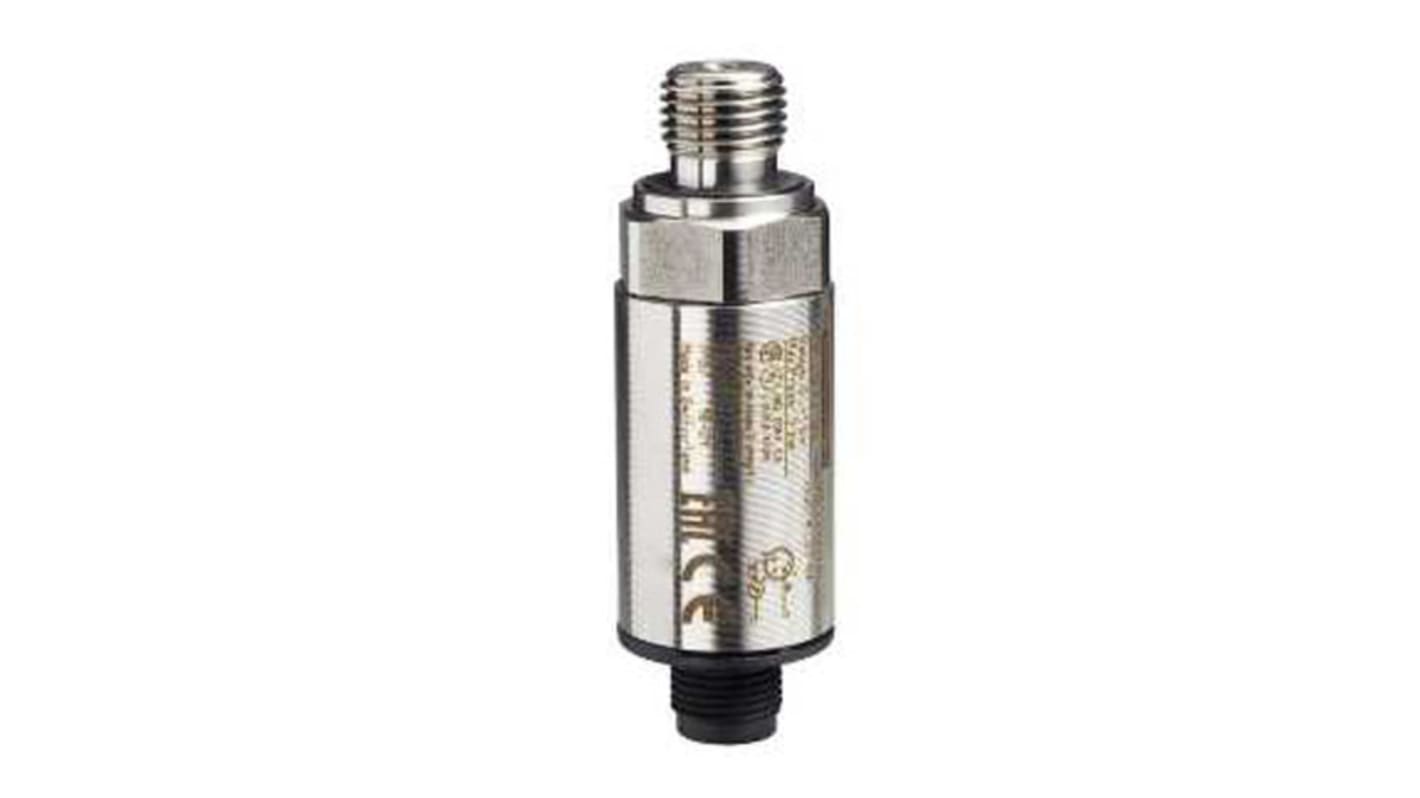

Telemecanique Sensors XML Series Pressure Switch 0 bar 10 bar
- RS Stock No.:
- 135-3753
- Mfr. Part No.:
- XMLG010D23
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£376.30
(exc. VAT)
£451.56
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £376.30 |
*price indicative
- RS Stock No.:
- 135-3753
- Mfr. Part No.:
- XMLG010D23
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Product Type | Pressure Switch | |
| Maximum Pressure Measurement | 10bar | |
| Minimum Pressure Measurement | 0bar | |
| Accuracy | ±0.1 % | |
| Series | XML | |
| Maximum Supply Voltage | 24V | |
| Housing Material | Stainless Steel, Aluminium Oxide, Ceramic | |
| Standards/Approvals | LROS, BV, EN, CE, CSA, CCC, EAC, UL | |
| Maximum Operating Temperature | 85°C | |
| Mount Type | Screw | |
| IP Rating | IP67, IP66 | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Product Type Pressure Switch | ||
Maximum Pressure Measurement 10bar | ||
Minimum Pressure Measurement 0bar | ||
Accuracy ±0.1 % | ||
Series XML | ||
Maximum Supply Voltage 24V | ||
Housing Material Stainless Steel, Aluminium Oxide, Ceramic | ||
Standards/Approvals LROS, BV, EN, CE, CSA, CCC, EAC, UL | ||
Maximum Operating Temperature 85°C | ||
Mount Type Screw | ||
IP Rating IP67, IP66 | ||
- COO (Country of Origin):
- CH
OsiSense XMLG Electronic Pressure Sensors
Schneider Electric XMLG pressure transmitters and pressure switches feature a ceramic pressure measuring cell. The deformation caused by the pressure is transmitted to the resistors of a Wheatstone bridge silk-screened on the ceramic. The change in resistance is then processed by the integrated electronics, providing either a digital or analog output signal.
Adjustable differential
1 CO snap acting contact
Temperature range: –15 to +85 °C
Enclosure rating: IP66
