Endress+Hauser PMP21 Series Industrial Pressure Sensor, 4 to 20 mA Output 0 bar 16 bar, Gauge, Absolute Reading
- RS Stock No.:
- 691-093
- Mfr. Part No.:
- PMP21-AA1M1QFWJJ
- Brand:
- Endress+Hauser
Subtotal (1 unit)*
£244.47
(exc. VAT)
£293.36
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £244.47 |
*price indicative
- RS Stock No.:
- 691-093
- Mfr. Part No.:
- PMP21-AA1M1QFWJJ
- Brand:
- Endress+Hauser
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Endress+Hauser | |
| Pressure Reading Type | Gauge, Absolute | |
| Product Type | Industrial Pressure Sensor | |
| Maximum Pressure Measurement | 16bar | |
| Minimum Pressure Measurement | 0bar | |
| Accuracy | ±0.3 % | |
| Output Type | 4 to 20 mA | |
| Minimum Supply Voltage | 1V | |
| Series | PMP21 | |
| Maximum Supply Voltage | 3V | |
| Housing Material | 316L Stainless Steel | |
| Standards/Approvals | EN 61000-4-5IEC 60068-2-64:2008 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Mount Type | Flush | |
| IP Rating | IP68, IP66 | |
| Select all | ||
|---|---|---|
Brand Endress+Hauser | ||
Pressure Reading Type Gauge, Absolute | ||
Product Type Industrial Pressure Sensor | ||
Maximum Pressure Measurement 16bar | ||
Minimum Pressure Measurement 0bar | ||
Accuracy ±0.3 % | ||
Output Type 4 to 20 mA | ||
Minimum Supply Voltage 1V | ||
Series PMP21 | ||
Maximum Supply Voltage 3V | ||
Housing Material 316L Stainless Steel | ||
Standards/Approvals EN 61000-4-5IEC 60068-2-64:2008 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Mount Type Flush | ||
IP Rating IP68, IP66 | ||

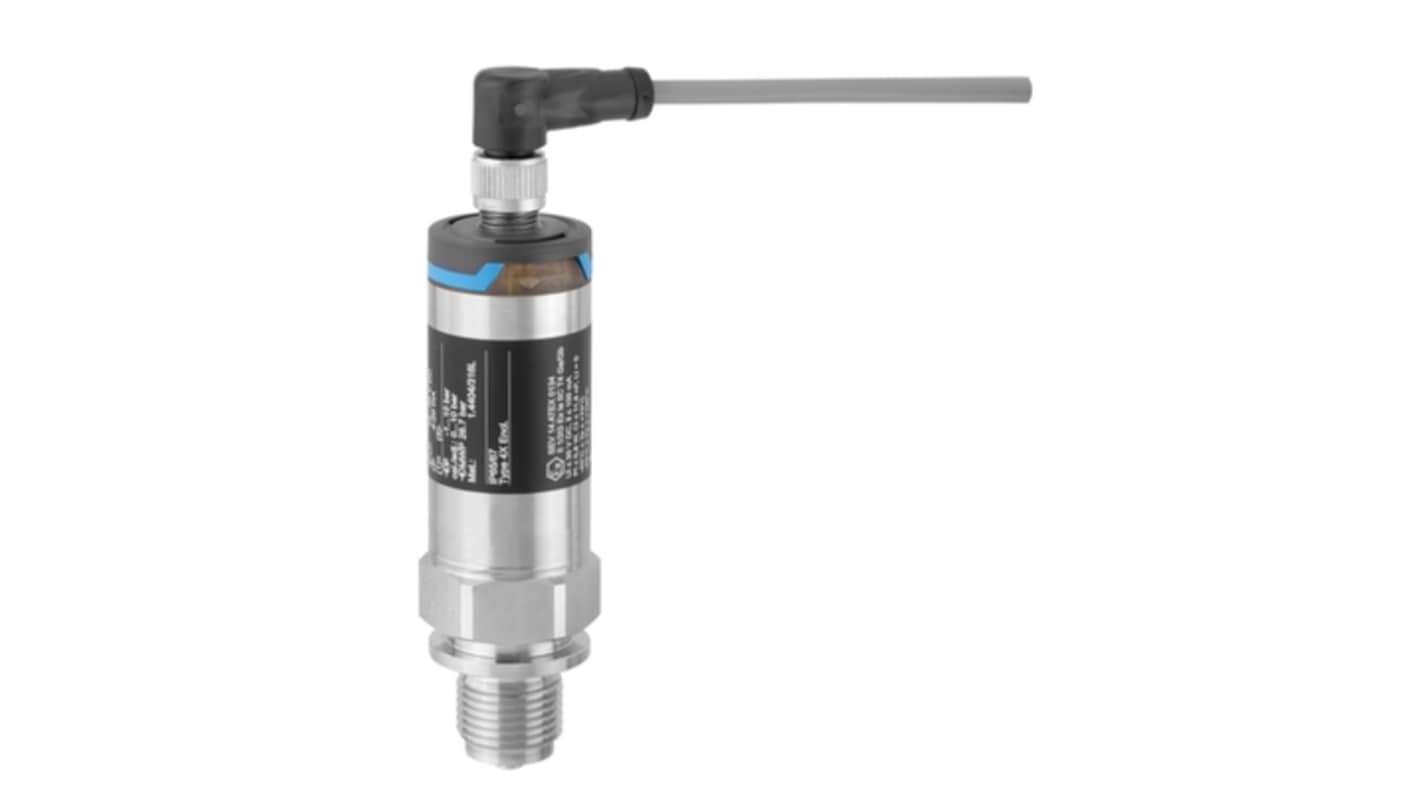

The Endress+Hauser Cerabar is a pressure transducer designed for measuring absolute and gauge pressure in gases, vapors, liquids, and dust. Featuring both ceramic and metal sensors, it is suitable for a wide range of applications and can be used internationally, thanks to its extensive range of approvals and process connections.
High reproducibility and long-term stability
Customized measuring ranges
Housing and process isolating diaphragm MADE of 316L
The Cerabar PMP21 is a very Compact pressure transmitter with piezo-resistive sensor that can measure absolute or gauge pressure from 400mbar up to 40bar (depending on configuration) in gases, vapors, liquids and dust with an accuracy of 0.3%. The PMP21 is designed to withstand the harsh conditions in the process industry with ingress protection grades up to IP 68 and high quality materials like 316L.
Key Benefits
Easy usability
High performance
Long term stability
High material quality
