Festo SPAU Series Pressure Sensor, -1bar Min, 10bar Max, Analogue Output, Relative Reading
- RS Stock No.:
- 650-638
- Mfr. Part No.:
- SPAU-B11R-W-Q6D-L-PNLK-PNVBA-M8U
- Brand:
- Festo
Subtotal (1 unit)*
£126.00
(exc. VAT)
£151.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £126.00 |
*price indicative
- RS Stock No.:
- 650-638
- Mfr. Part No.:
- SPAU-B11R-W-Q6D-L-PNLK-PNVBA-M8U
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Pressure Reading Type | Relative | |
| Minimum Pressure Reading | -1bar | |
| Maximum Pressure Reading | 10bar | |
| Accuracy | ±1.5 % | |
| Output Type | Analogue | |
| Series | SPAU | |
Select all | ||
|---|---|---|
Brand Festo | ||
Pressure Reading Type Relative | ||
Minimum Pressure Reading -1bar | ||
Maximum Pressure Reading 10bar | ||
Accuracy ±1.5 % | ||
Output Type Analogue | ||
Series SPAU | ||
- COO (Country of Origin):
- BG

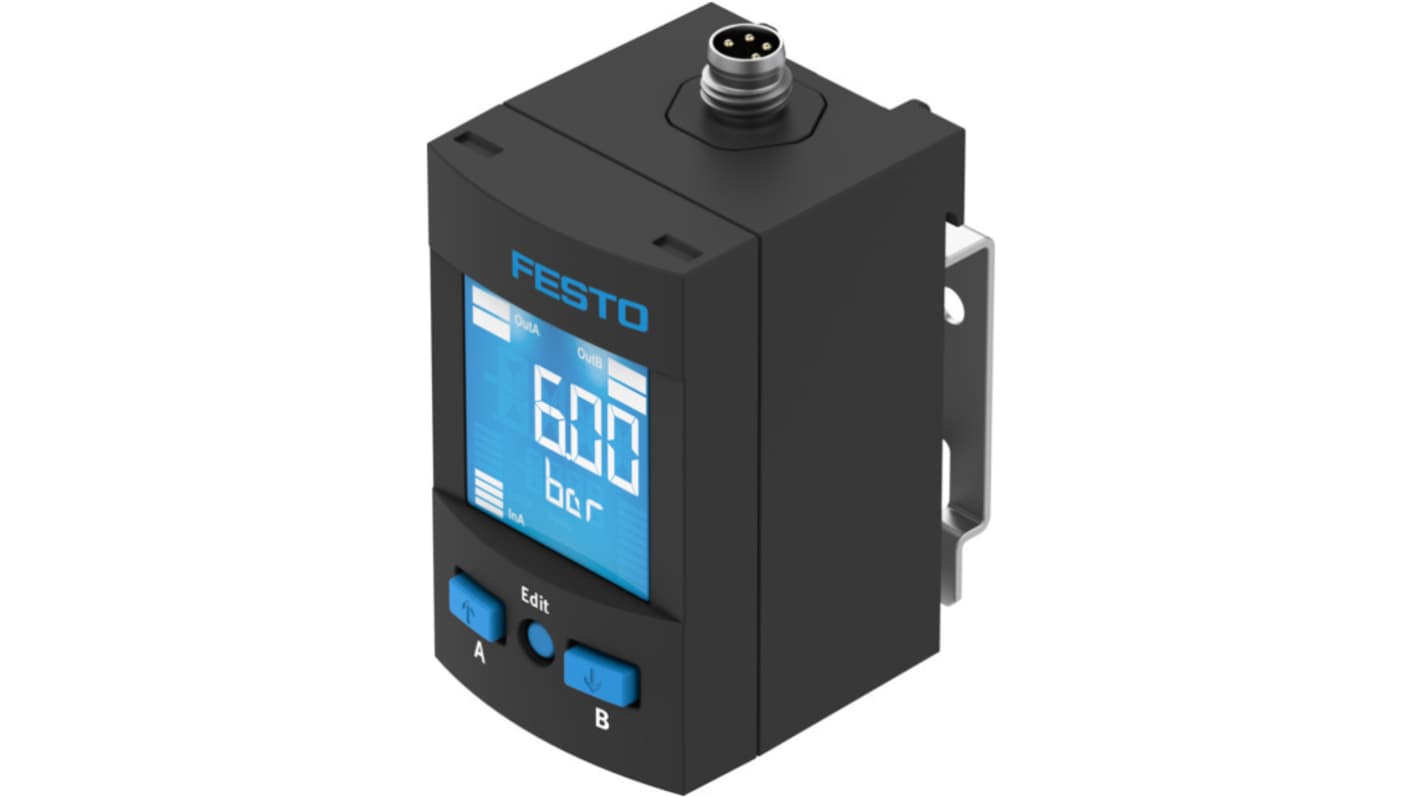

The Festo Pressure sensor is designed for precise measurement of relative pressure, functioning effectively across a range from -0.1 MPa to 1 MPa. With a piezo resistive measurement method, this sensor ensures high accuracy with a repeatability of ±0.3% FS. Its robust design allows for a maximum overload pressure of 1.5 MPa, making it suitable for applications involving compressed air and inert gases, compliant with ISO standards. Operating within an ambient temperature of 0°C to 50°C, this sensor also provides illumination via its LCD display, presenting measurements in multiple units, thus supporting versatile operational needs. With advanced IO-Link® functionality, the sensor enhances communication and data handling for modern automation environments.
Offers dual switching outputs allowing flexibility for different applications
Supports multiple analogue outputs including 0 to 10 V and 4 to 20 mA to suit various systems
Provides a comprehensive protection against reverse polarity for all electrical connections
Features an illuminated display that enhances visibility in low light conditions
Adheres to stringent compliance with EU directives including RoHS and EMC which ensuring environmental safety
Comprehensive diagnostics capabilities and teaching channel enhance usability and setup
Built in short circuit current rating provides an added layer of protection
Lightweight at just 60 g facilitating easy installation and integration into existing systems
Compatible with various mounting options for versatile installation
Supports multiple analogue outputs including 0 to 10 V and 4 to 20 mA to suit various systems
Provides a comprehensive protection against reverse polarity for all electrical connections
Features an illuminated display that enhances visibility in low light conditions
Adheres to stringent compliance with EU directives including RoHS and EMC which ensuring environmental safety
Comprehensive diagnostics capabilities and teaching channel enhance usability and setup
Built in short circuit current rating provides an added layer of protection
Lightweight at just 60 g facilitating easy installation and integration into existing systems
Compatible with various mounting options for versatile installation
