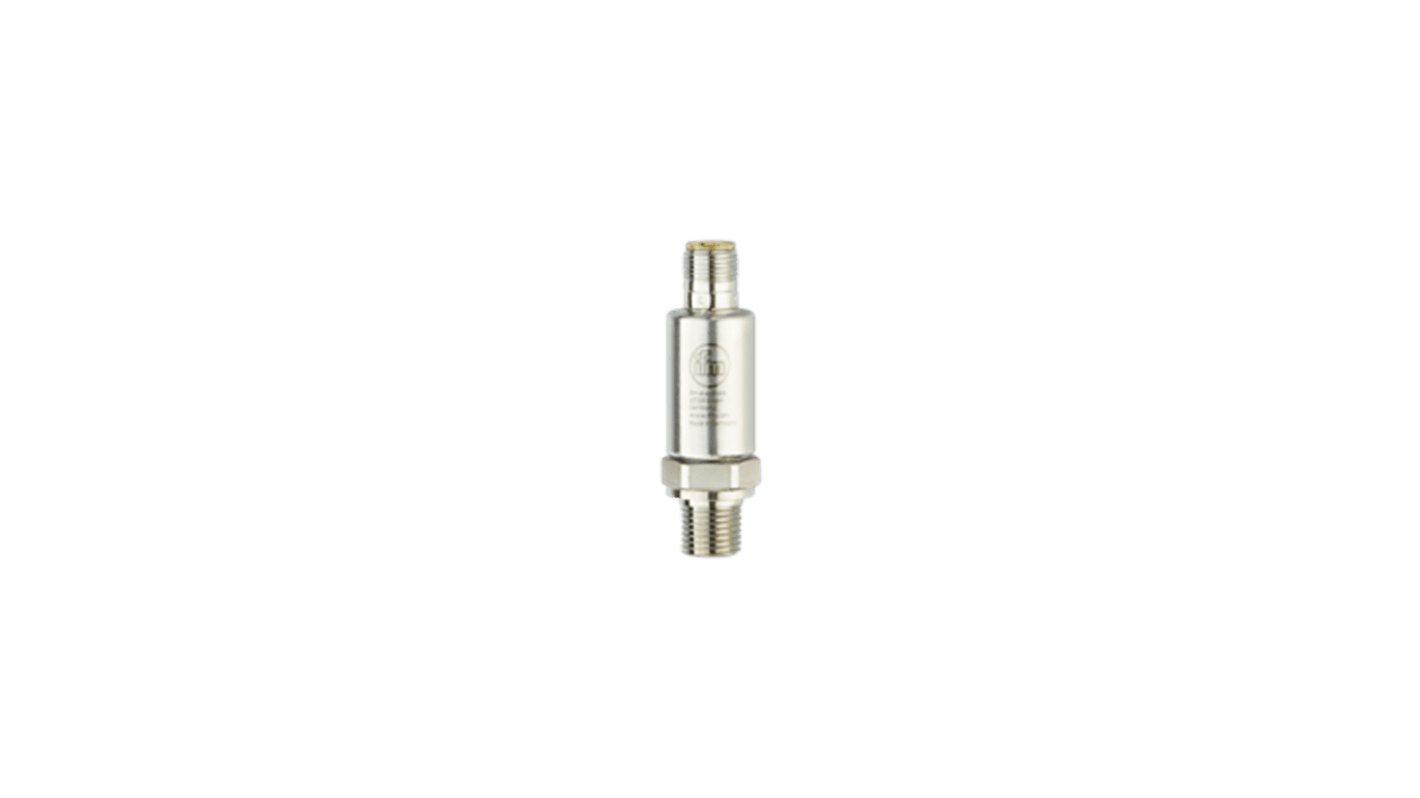

ifm electronic PV Series Pressure Switch -0.1 MPa 40 bar
- RS Stock No.:
- 596-748
- Mfr. Part No.:
- PV7703
- Brand:
- ifm electronic
Subtotal (1 unit)*
£153.81
(exc. VAT)
£184.57
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £153.81 |
*price indicative
- RS Stock No.:
- 596-748
- Mfr. Part No.:
- PV7703
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Product Type | Pressure Switch | |
| Maximum Pressure Measurement | 40bar | |
| Minimum Pressure Measurement | -0.1MPa | |
| Contact Configuration | SPDT | |
| Accuracy | ±0.5 % | |
| Analogue Output | 100 mA | |
| Maximum Supply Voltage | 30V | |
| Series | PV | |
| Housing Material | Stainless Steel | |
| Standards/Approvals | DIN IEC 60068-2-27 / DIN IEC 60068-2-29, DIN IEC 68-2-6, EN 61000-4-2 | |
| Mount Type | Screw | |
| IP Rating | IP67, IP69K | |
| Maximum Operating Temperature | 90°C | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Product Type Pressure Switch | ||
Maximum Pressure Measurement 40bar | ||
Minimum Pressure Measurement -0.1MPa | ||
Contact Configuration SPDT | ||
Accuracy ±0.5 % | ||
Analogue Output 100 mA | ||
Maximum Supply Voltage 30V | ||
Series PV | ||
Housing Material Stainless Steel | ||
Standards/Approvals DIN IEC 60068-2-27 / DIN IEC 60068-2-29, DIN IEC 68-2-6, EN 61000-4-2 | ||
Mount Type Screw | ||
IP Rating IP67, IP69K | ||
Maximum Operating Temperature 90°C | ||
- COO (Country of Origin):
- RO
The ifm electronic pressure switch is a versatile device designed for precision measurement and control in industrial applications. Utilizing IO-Link technology, it provides reliable performance for both liquids and gases across a wide measuring range of -0.1 to 2.5 MPa. With a robust metallic thin film measuring element, the switch boasts a high standard of durability, especially suited for demanding environments. Its user-friendly parameters allow for easy configuration of switching functions, facilitating seamless integration into automation systems. This device exemplifies innovation and reliability, aiming to enhance productivity and process efficiency.
Two digital outputs allow for flexible signal configuration
IO-Link communication enables remote monitoring and parameter adjustment
Shock and vibration resistant, suitable for harsh operational conditions
Wide ambient and storage temperature range ensures reliable performance
