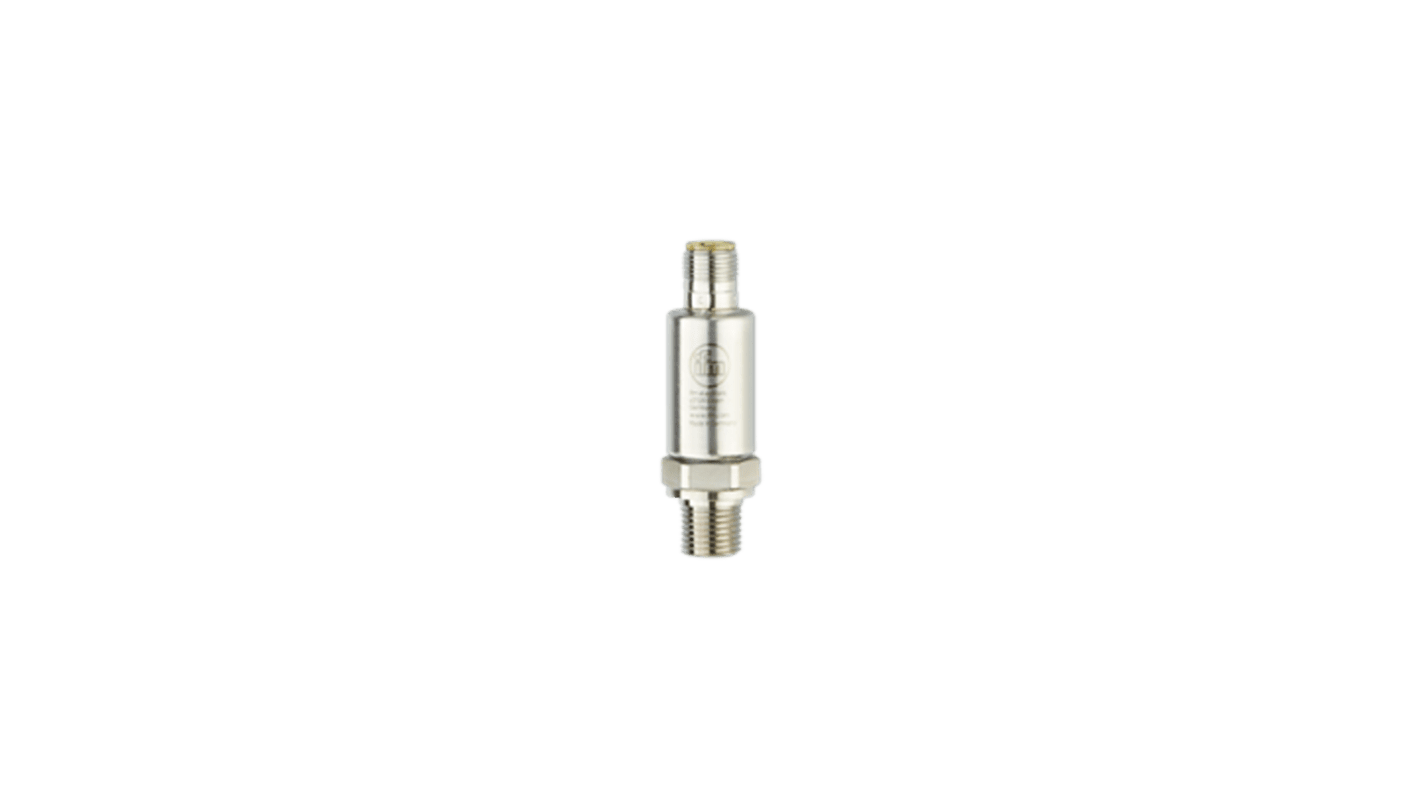

ifm electronic PV Series Pressure Switch 0 MPa 250 bar
- RS Stock No.:
- 596-225
- Mfr. Part No.:
- PV7701
- Brand:
- ifm electronic
Subtotal (1 unit)*
£153.81
(exc. VAT)
£184.57
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £153.81 |
*price indicative
- RS Stock No.:
- 596-225
- Mfr. Part No.:
- PV7701
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Product Type | Pressure Switch | |
| Maximum Pressure Measurement | 250bar | |
| Minimum Pressure Measurement | 0MPa | |
| Accuracy | ±0.5 % | |
| Contact Configuration | SPDT | |
| Analogue Output | 100 mA | |
| Series | PV | |
| Maximum Supply Voltage | 30V | |
| Housing Material | Stainless Steel | |
| Standards/Approvals | EN 61000-4-2, DIN IEC 60068-2-27 / DIN IEC 60068-2-29, DIN IEC 68-2-6 | |
| Maximum Operating Temperature | 90°C | |
| IP Rating | IP69K, IP67 | |
| Mount Type | Screw | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Product Type Pressure Switch | ||
Maximum Pressure Measurement 250bar | ||
Minimum Pressure Measurement 0MPa | ||
Accuracy ±0.5 % | ||
Contact Configuration SPDT | ||
Analogue Output 100 mA | ||
Series PV | ||
Maximum Supply Voltage 30V | ||
Housing Material Stainless Steel | ||
Standards/Approvals EN 61000-4-2, DIN IEC 60068-2-27 / DIN IEC 60068-2-29, DIN IEC 68-2-6 | ||
Maximum Operating Temperature 90°C | ||
IP Rating IP69K, IP67 | ||
Mount Type Screw | ||
- COO (Country of Origin):
- RO
The ifm electronic pressure switch with IO-Link is engineered for precise pressure measurement in a variety of industrial applications. Designed to handle liquids and gases, it utilizes a metallic thin film cell for optimal accuracy across a measuring range of 0 to 25 MPa. The device features robust protection against harsh environments with an IP67 and IP69K rating. With its user-friendly IO-Link interface, the pressure switch allows for flexible integration into existing systems, making it suitable for modern automation solutions. Its compact cylindrical design ensures easy installation while maintaining high standards of reliability and durability.
Two digital outputs provide flexible monitoring options
Operates within a wide ambient temperature range of -40 to 90 °C
Short-circuit and overload protection enhance operational safety
Fast response time of less than 3 ms ensures quick system reactions
