TE Connectivity MEAS 154 Series Pressure Sensor, 0psi Min, 30psi Max, 100 mV Output, Gauge Reading
- RS Stock No.:
- 467-767
- Mfr. Part No.:
- 154BC-S-030PG-C
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£438.32
(exc. VAT)
£525.98
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £438.32 |
*price indicative
- RS Stock No.:
- 467-767
- Mfr. Part No.:
- 154BC-S-030PG-C
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Pressure Reading Type | Gauge | |
Minimum Pressure Reading | 0psi | |
Maximum Pressure Reading | 30psi | |
Accuracy | ±0.3 % | |
Output Type | 100 mV | |
Series | MEAS 154 | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Pressure Reading Type Gauge | ||
Minimum Pressure Reading 0psi | ||
Maximum Pressure Reading 30psi | ||
Accuracy ±0.3 % | ||
Output Type 100 mV | ||
Series MEAS 154 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN

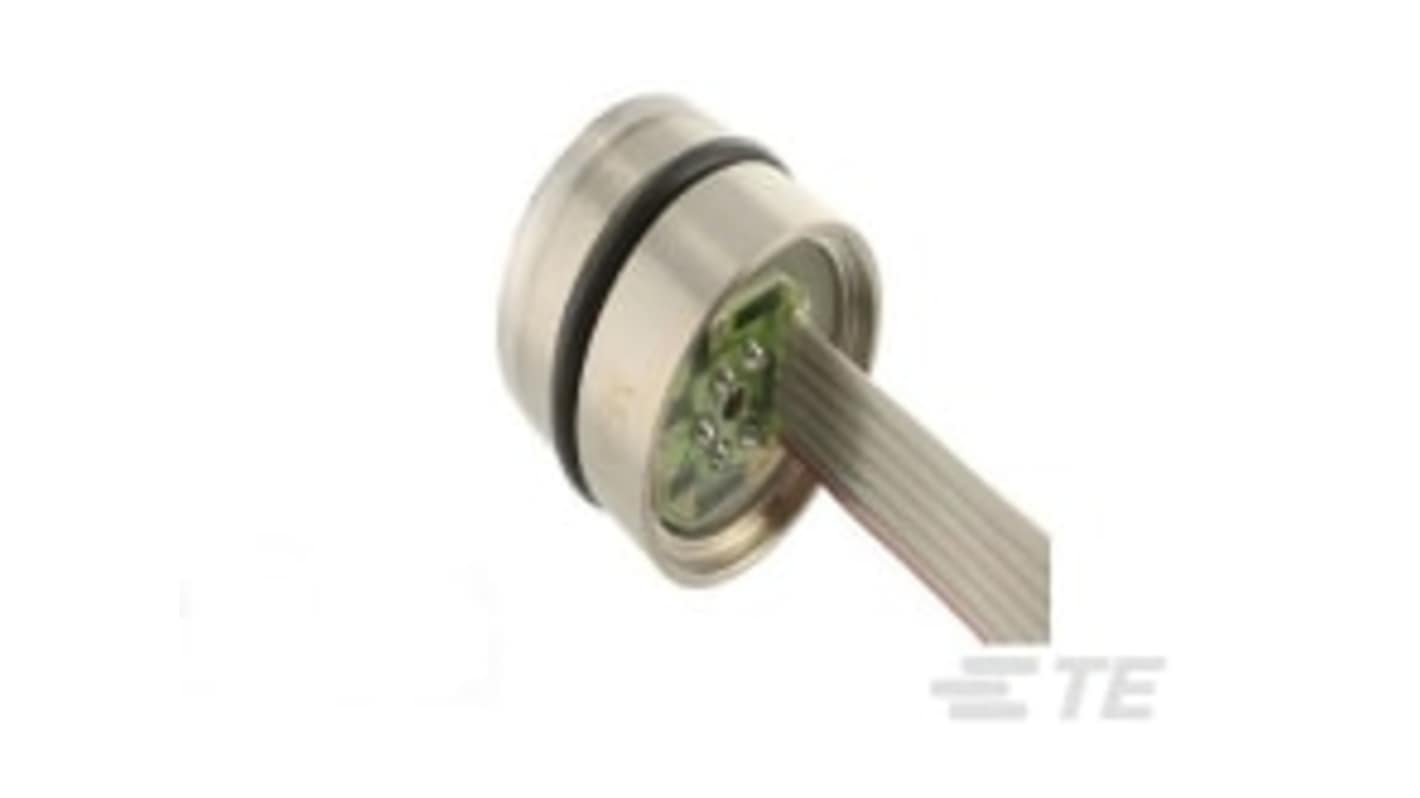

The TE Connectivity 154BC series is a precision-engineered, low-cost piezoresistive silicon pressure sensor designed to excel in a variety of demanding environments. With a compact 19mm profile, this model features robust construction available in 316L stainless steel or titanium, making it ideal for applications requiring compatibility with corrosive media. Its ingeniously designed housing allows for O-ring mounting, catering to OEM requirements in sectors such as medical instrumentation and process control. The sensor ensures reliable performance over a wide temperature range, offering excellent stability and accuracy, while an additional laser-trimmed resistor facilitates easy span adjustment. Whether it's in dialysis machines or water measurement systems, this unit delivers the utmost reliability.
Compact form factor allows for easy integration into various applications
Utilises advanced technology for greater resistance to harsh cleaning chemicals
Temperature compensation ensures consistent accuracy across diverse operating conditions
Offers span interchangeability for customisable output options
Ideal for both gage and absolute pressure measurements
Capable of handling liquids and gases compatible with its materials
Designed for demanding applications in medical and industrial settings
Utilises advanced technology for greater resistance to harsh cleaning chemicals
Temperature compensation ensures consistent accuracy across diverse operating conditions
Offers span interchangeability for customisable output options
Ideal for both gage and absolute pressure measurements
Capable of handling liquids and gases compatible with its materials
Designed for demanding applications in medical and industrial settings
